Section 08 PROPULSION SYSTEM
Sub-Section 03 (DRIVE SYSTEM)
08-03-4
GENERAL
Jet pump must be removed to replace any com-
ponents of the drive system. Refer to PROPUL-
SION SYSTEM 08-02 for jet pump removal
procedure.
REMOVAL
All Models Except the XP and HX
Remove seat.
Remove PTO flywheel guard.

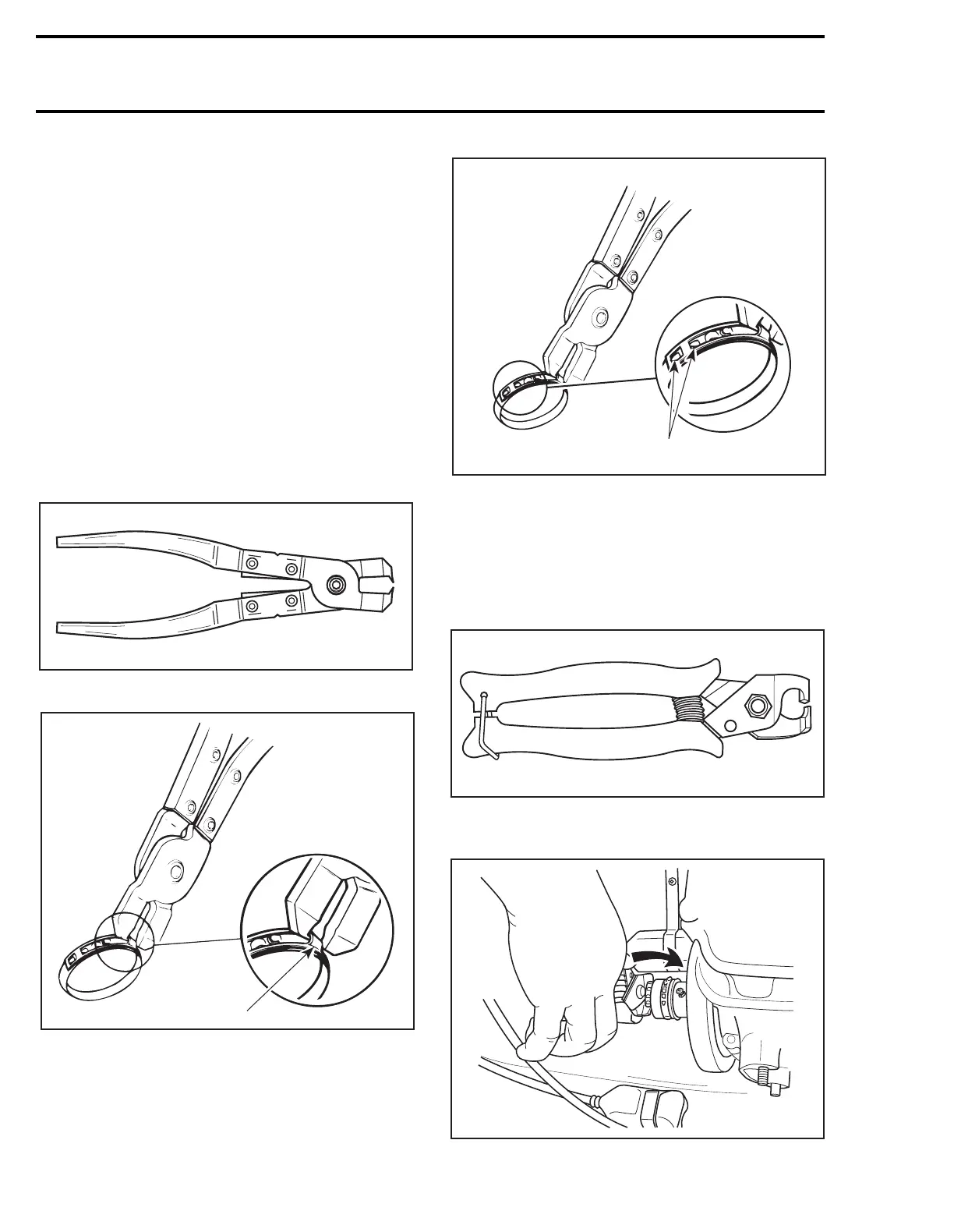

1, Large Clamp
Unfasten large clamp of PTO flywheel boot as fol-
lows:
– Use pliers (P/N 295 000 069).
– Insert pointed tips of pliers in closing hooks.
TYPICAL
1. Closing hooks
– Squeeze pliers to draw hooks together and dis-
engage windows from locking hooks.
TYPICAL
1. Locking hooks
2, Small Clamp
Unfasten small clamp of PTO flywheel boot as fol-
lows:
– Use pliers (P/N 295 000 054).
– To open clamp, place flat side of plier on clamp
embossment, squeeze and twist plier.
F01J0GA
1
F01J2AA
1
F01J29A
F01B1TA
F02J0PA
