Section 05 FUEL SYSTEM
Sub-Section 02 (FUEL CIRCUIT)
05-02-6
GENERAL

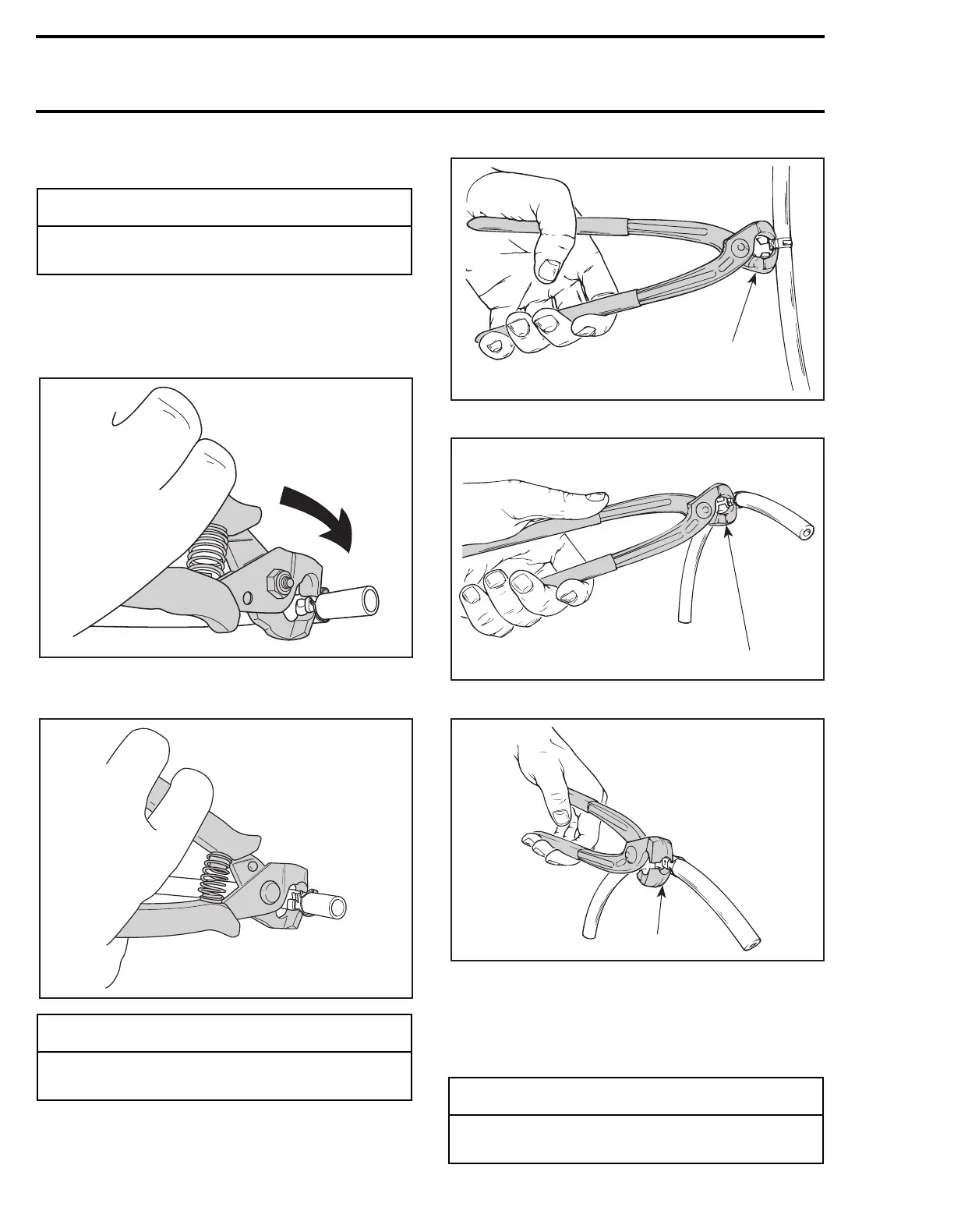

To open or secure reusable clamps on fuel lines,
use pliers (P/N 295 000 054).
To open clamp, place flat side of plier on clamp
embossment, squeeze and twist plier.
To secure clamp, place notch side of plier on
clamp embossment and squeeze plier.
To secure or cut Oetiker clamps on fuel lines, use
pliers (P/N 295 000 070).
1. Cutting clamp
1. Securing clamp
1. Securing clamp in limited access
When replacing fuel lines on SEA-DOO water-
craft, be sure to use “B1” hoses as available from
Bombardier parts department. This will ensure
continued proper and safe operation.
◆
WARNING
Whenever repairing the fuel system, always
verify for water infiltration in reservoir.
◆
WARNING
Replace any damaged, leaking or deteriorat-
ed fuel lines.
F01B1VA
F01B1UA
◆
WARNING
Use of improper fuel lines could compromise fuel
system integrity.
F01B03A
1
F01B04A
1
F01B05A
1
