Section 08 PROPULSION SYSTEM
Sub-Section 03 (DRIVE SYSTEM)
08-03-9

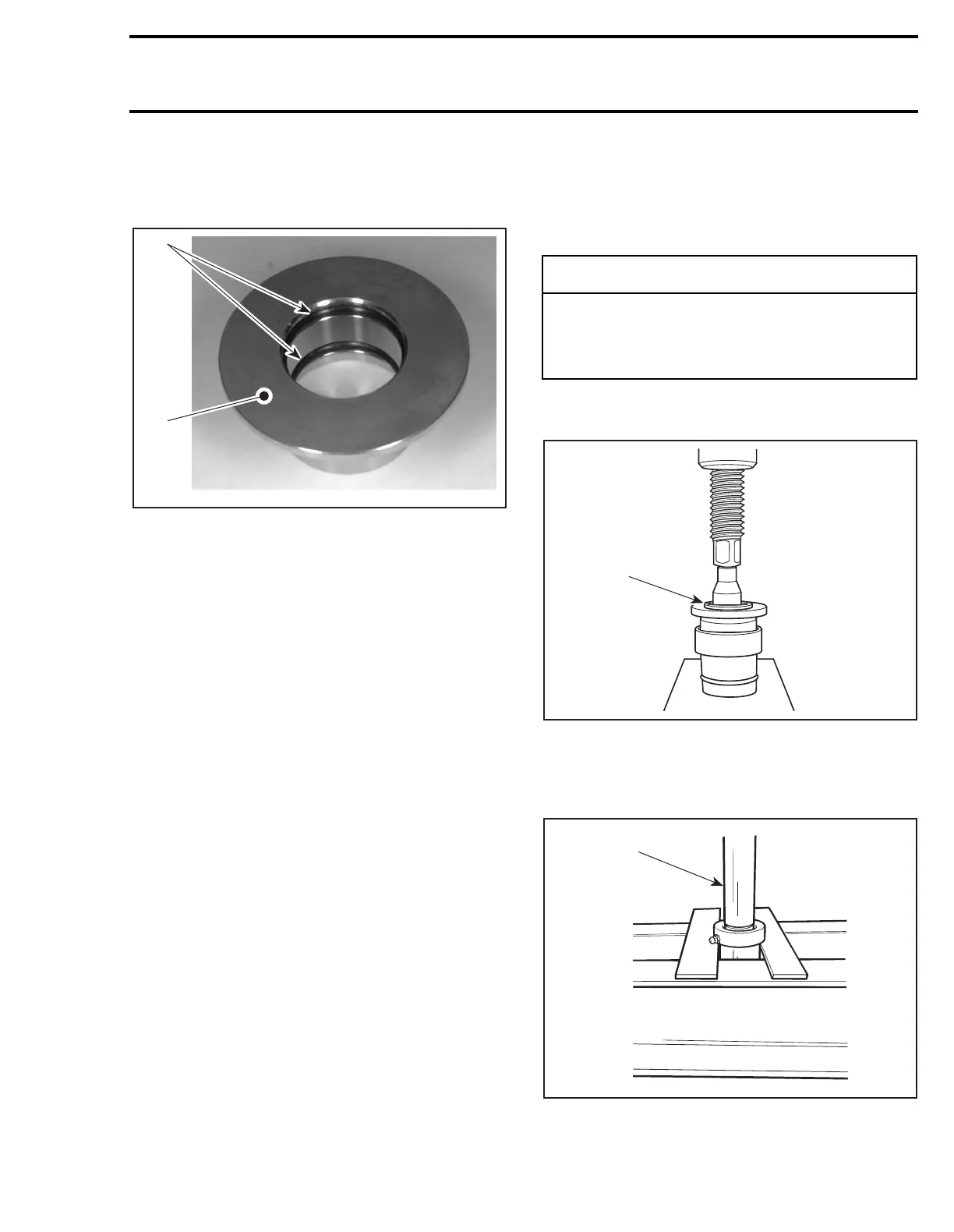

5,18, Floating Ring and O-ring
Inspect condition of O-rings and floating ring con-
tact surface.
1. O-rings
2. Floating ring contact surface
6, O-ring
Check also condition of drive shaft O-ring. Re-
place as necessary.
All Models Except the XP and HX
11, PTO Flywheel
Inspect spline condition of PTO flywheel.
XP and HX Models Only
4,14, Drive Shaft and Needle Bearing
Inspect seal carrier needle bearing and its contact
surface on drive shaft. Check parts for scoring, pit-
ting, chipping or other evidence of wear.
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedure. However, pay particular attention
to the following.
XP and HX Models Only
14, Needle Bearing
Properly support seal carrier when installing seals
and bearing.
Install bearing with the bearing/seal installer tool
(P/N 295 000 107).
1. Press bearing in its housing
NOTE:
Bearing can also be installed with the
same driver used at disassembly. Center bearing
in longitudinal axis of housing.
1. Push bearing centered in its housing
F01I0GA
1
2
-
CAUTION
Ensure to install stamped end of bearing
(showing identification markings) first on
tool. Never hammer the bearing into its
housing.
F01J51A
1
F01J2TA
1
