Section 08 PROPULSION SYSTEM
Sub-Section 03 (DRIVE SYSTEM)
08-03-10
13, Seal
Install double-lip seal with protector toward jet
pump.

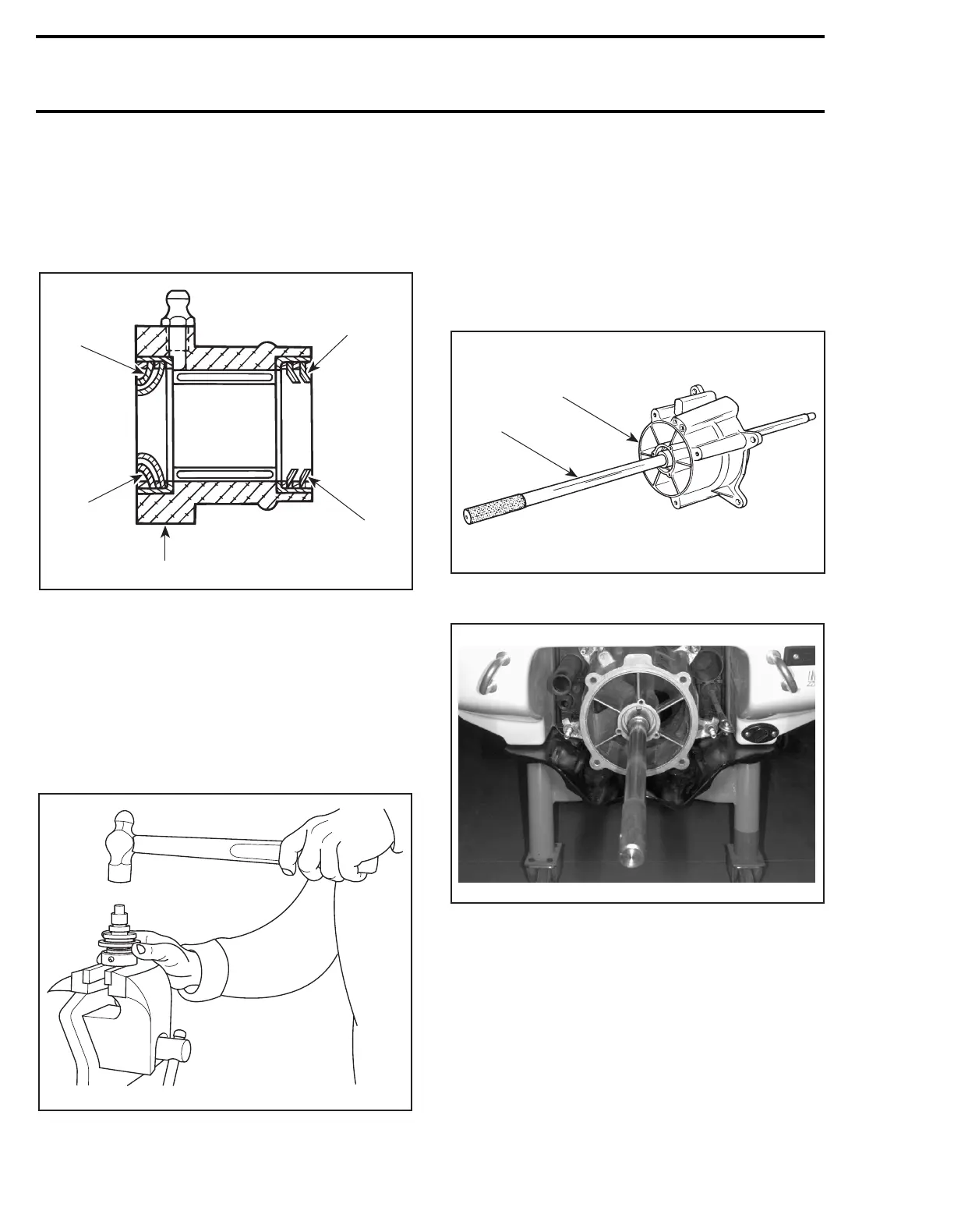

On both seals, raised edge of lip must be located
outwards of seal carrier.
1. Double-lip seal toward engine
2. Double-lip seal with protector toward jet pump
3. Raised edge of lip outwards
4. Seal carrier
Apply Loctite 518 all around seals outside diame-
ter.
Seals can be carefully installed in housing using
bearing/seal installer tool (P/N 295 000 107).
Push seals until tool comes in contact with hous-
ing.
TYPICAL
Pack seals and bearing with synthetic grease (P/N
293 550 010).
12, Seal Carrier
Properly index flanges together.
Install seal carrier and hand tighten nuts only.
NOTE:
Apply Loctite 242 (blue) on studs.
Install alignment tool at rear of watercraft.
1. Housing (P/N 295 000 090)
2. Alignment shaft (P/N 295 000 093)
Carefully slide shaft through seal carrier.
F01J2FA
2
1
3
4
3
F01J1YA
F01L2RC
1
2
F05I07A
