Section 08 PROPULSION SYSTEM
Sub-Section 04 (REVERSE SYSTEM)
08-04-10
21, Reverse Cable

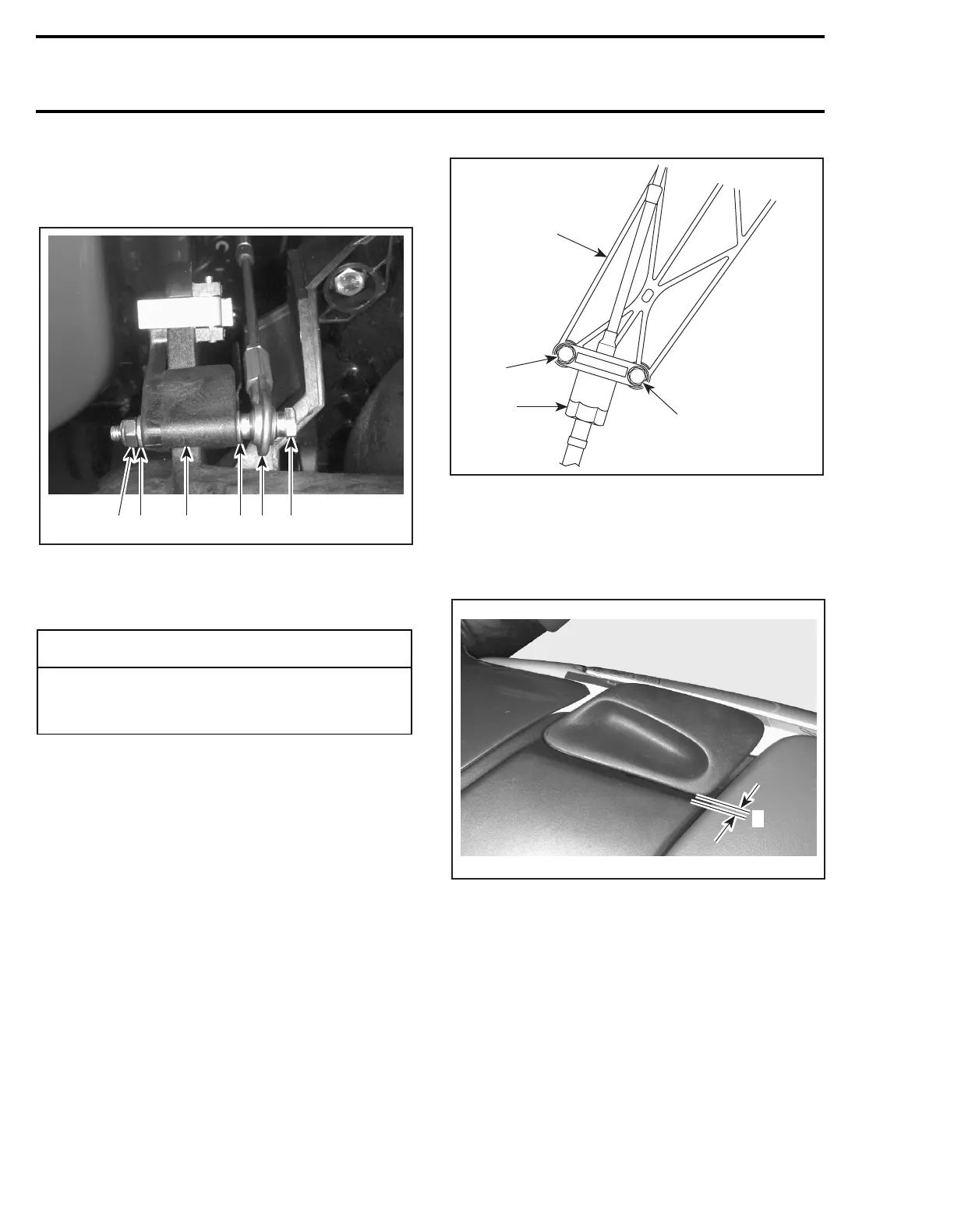

Install reverse cable to cable lever as per following
illustration.
1. Bolt
2. Ball joint
3. Cable lever
4. Flat washer
5. Lock nut
ADJUSTMENT
Put shift lever in forward position.
Pull shift lever approximately 50 mm (2 in) and
push it back slowly in forward position.
The pawl lock
no. 7
should be engaged in the an-
chor
no. 22
.
If not, adjust reverse cable. Loosen 2 bolts
no. 18
at reverse cable support
no. 16
. Turn adjustment
nut
no. 23
as required.
1. Reverse cable support
2. Loosen bolts
3. Adjustment nut
When adjustment is completed, there should be
gap of 2 to 3 mm (5/64 to 7/64 in) between handle
and left cover.
A. 2 to 3 mm (5/64 to 7/64 in)
-
CAUTION
Ensure cable ball joint is parallel to cable le-
ver (90° ± 5°) to minimize tension on cable.
Adjust as required.
