Section 11 HULL/BODY
Sub-Section 02 (ADJUSTMENT AND REPAIR)
11-02-21
DEFLECTOR
GS, GSI, GSX, GTI and GTX Models
Removal
Using a heat gun, heat deflector and pry it using a
piece of wood.
Installation

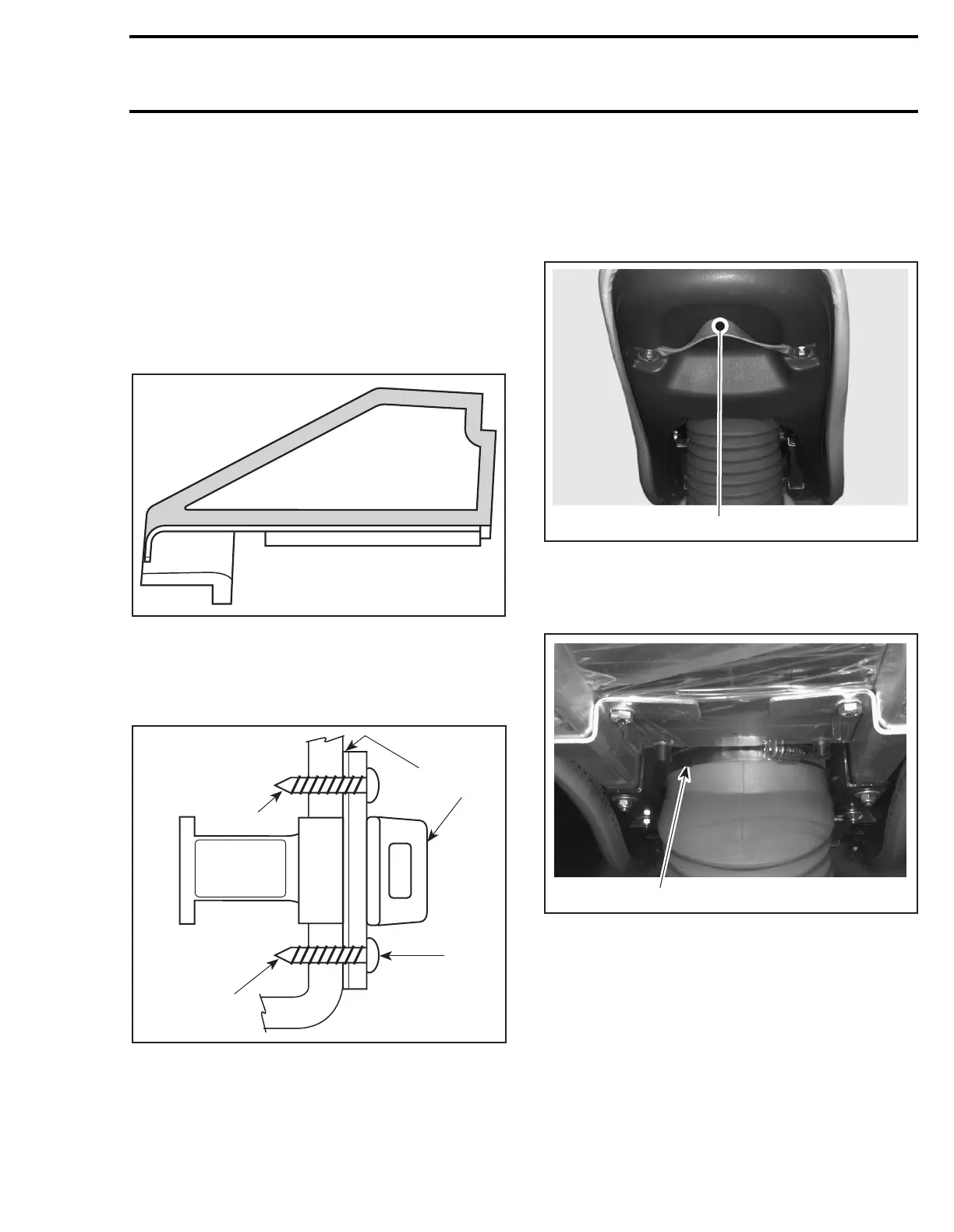

Apply Loctite 598 Ultra Black as indicated by the
shaded area in the following illustration.
DRAIN PLUG INSTALLATION
Refer to the following illustration to install drain
plug
no. 15
.
1. Drain plug
2. Gasket and 732 sealant
3. Torque screws to 1.5 N•m (13 lbf•in)
4. From inside bilge, apply 732 sealant on screws
SEAT REMOVAL
HX Model Only
Remove seat bottom cover
no. 17
and grab han-
dle
no. 18
.
1. Handle
2. Cover
Loosen collar of coil over shock outer boot; then,
pull outer boot downward.
1. Collar
F07L0BA
F05L13A
1
2
3
4
4
F05L0HB
1
F05L0IA
1
