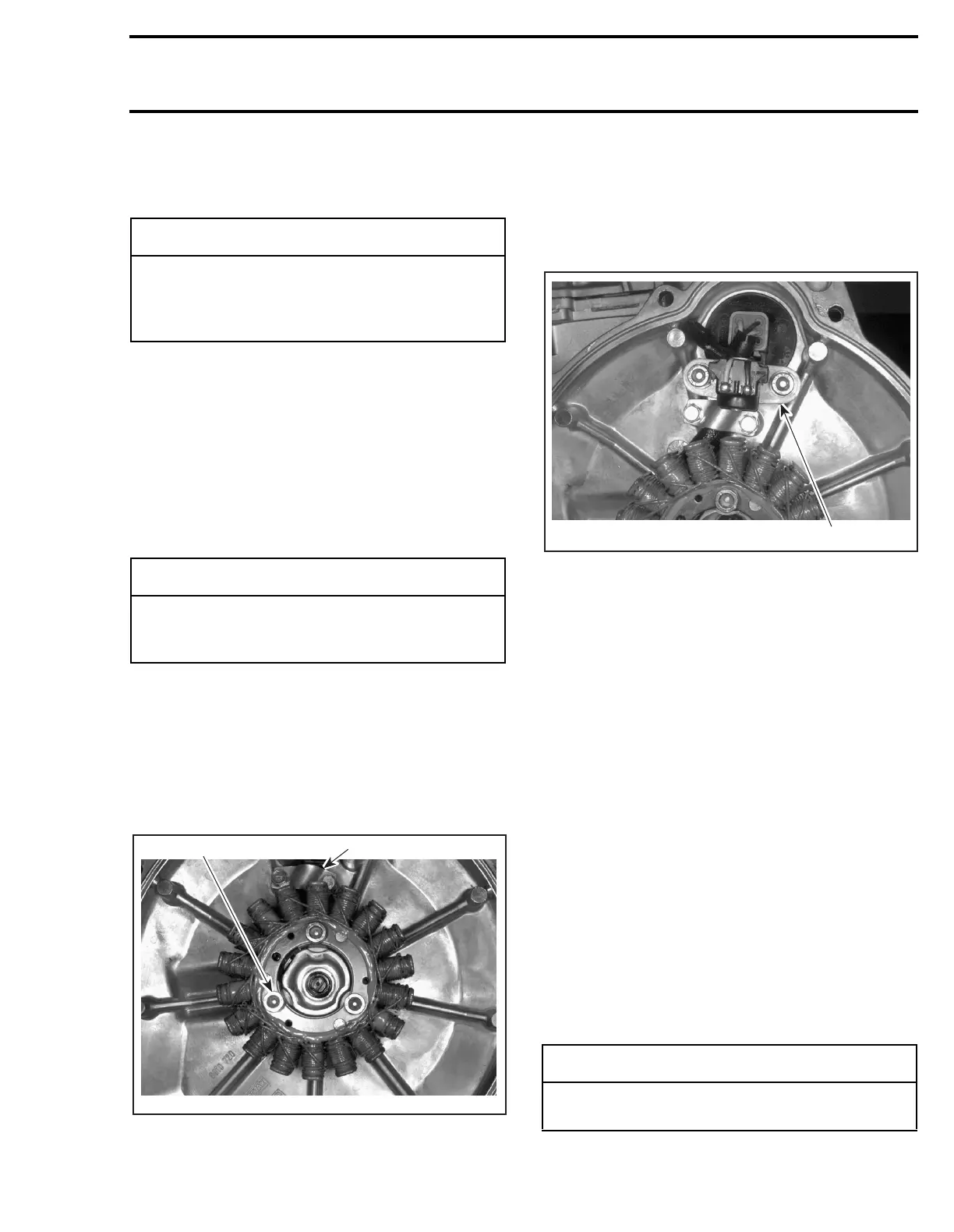

Section 03 ENGINE
Sub-Section 04 (MAGNETO SYSTEM)
03-04-9
Whenever replacing either ring gear or magneto
flywheel, Gun Kote must be applied to prevent
possible corrosion.
To apply Gun Kote proceed as follows:
1. Clean thoroughly and degrease replacement
part using a non oil base solvent.
2. Apply coating in light thin coats using a spray
gun.
NOTE:
Do not spray Gun Kote into magneto fly-
wheel threaded holes.
3. Bake parts in oven at 175° (350°F) for one hour
to cure Gun Kote.
787 Engine
12, Stator
Install the stator in magneto housing cover
no. 1
and torque screws
no. 13
to 10 N•m (88 lbf•
in
).
Replace wiring harness bracket
no. 16
of stator
and torque screws to 4.5 N•m (40 lbf•
in
).
1. Stator screws
2. Bracket
14, Trigger Coil
Install the trigger coil in magneto housing cover
no. 1
and torque screws
no. 15
to 10 N•m (88
lbf•
in
).
NOTE:
The trigger coil is not adjustable.
1. Trigger coil
INSTALLATION
717 Engines
7, Magneto Housing
Install gasket
no. 8
between magneto housing
and engine crankcase.
Install magneto housing and torque screws
no. 9
to 9 N•m (80 lbf•
in
).
10, Armature Plate
Position the armature plate on the crankcase,
aligning the marks on both parts.
Apply a drop of Loctite 242 (blue) on threads of
screws
no. 15
and torque to 6 N•m (53 lbf•
in
).
4, Magneto Flywheel
Apply Loctite 242 (blue) on crankshaft taper.
Position Woodruff key
no. 16
and magneto fly-
wheel. Apply Loctite 242 (blue) on nut
no. 6
. In-
stall nut with lock washer and torque to 145 N•m
(107 lbf•ft).
-
CAUTION
Always assemble magneto flywheel and
ring gear prior to apply Gun Kote. If not done
correctly, ring gear won’t contact magneto
flywheel flange.
-
CAUTION
Do not eliminate Gun Kote heat curing time
because it will lose all its resistance and it
will not give any protection.
F06D0CA
2
1
-
CAUTION
Never use any type of impact wrench at
magneto installation.
F06D0DA
1
