Section 03 ENGINE
Sub-Section 04 (MAGNETO SYSTEM)
03-04-6

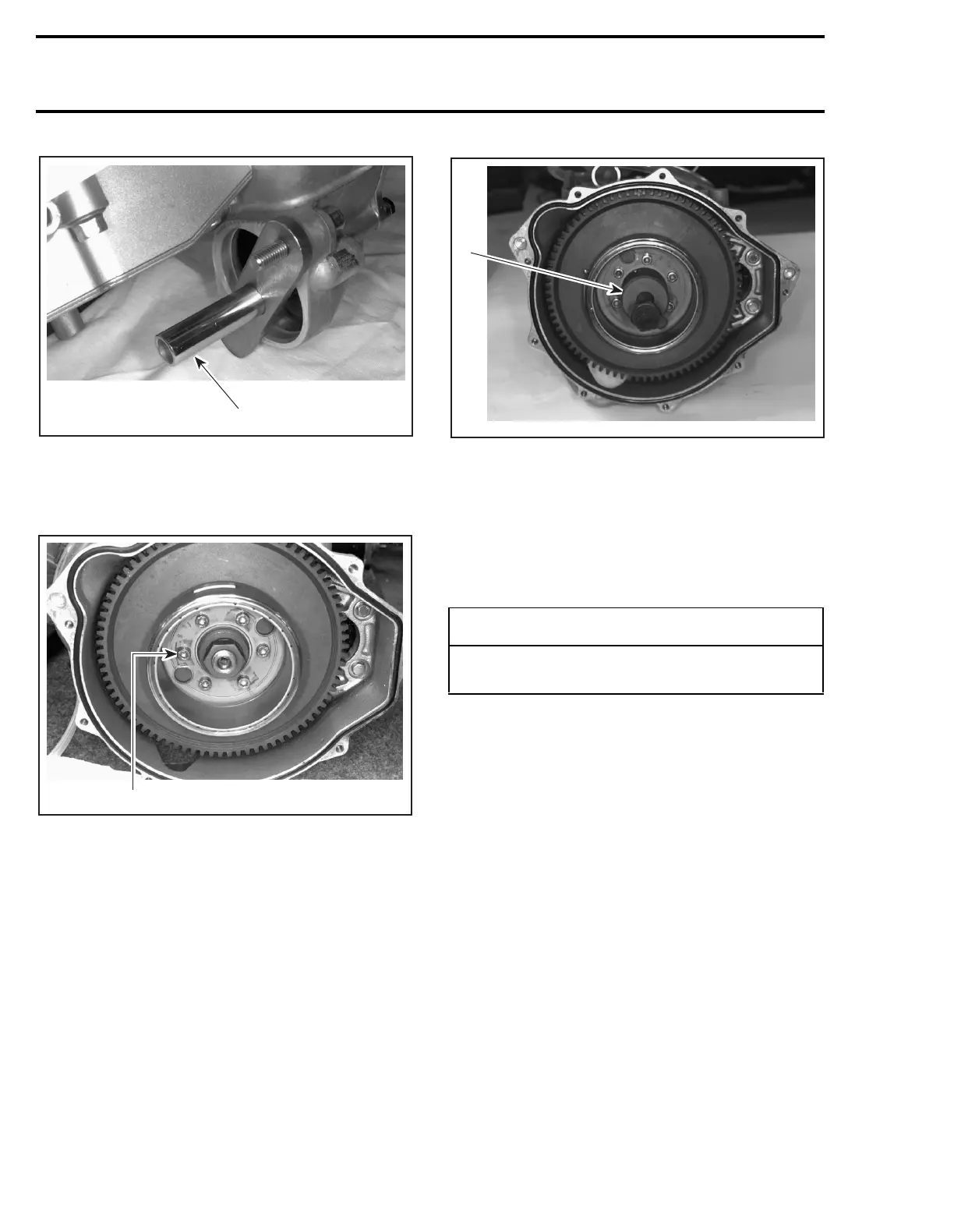

1. Ring gear blocking tool with retaining plate
If desired, magneto rotor can be removed without
the engine flywheel. Remove the 6 screws
no. 11
.
1. Screw
Using a suitable socket, unscrew retaining nut of
engine flywheel COUNTERCLOCKWISE when
facing it.
Remove special tool locking ring gear.
Engine flywheel is easily freed from crankshaft
with puller (P/N 420 976 235) and crankshaft pro-
tective cap (P/N 290 876 557).
Insert crankshaft protector to outer end of crank-
shaft and fully thread puller in engine flywheel.
1. Puller
Tighten puller screw and at the same time, tap on
screw head using a hammer to release engine fly-
wheel from its taper.
CLEANING
Clean all metal components in a solvent.
Clean crankshaft taper and threads.
DISASSEMBLY
717 Engines
4,5, Magneto Flywheel and Ring Gear
Lay magneto flywheel on a steel plate. Tap lightly
on ring gear using a hammer to release it from
magneto flywheel.
F01D85A
1
F01D7XA
1
-
CAUTION
Clean coils and magnets using only a clean
cloth.
F01D7YA
1
