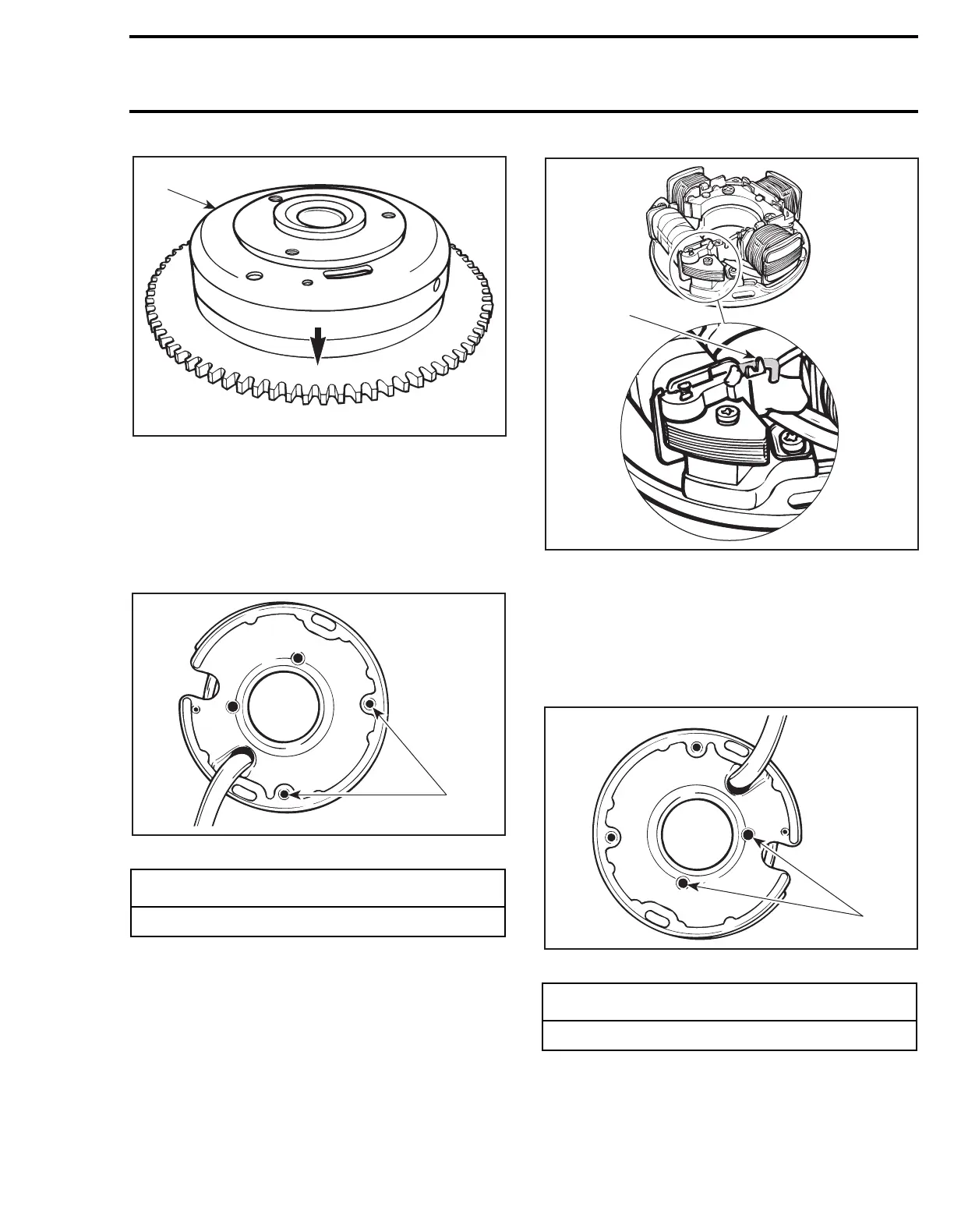

1. Magneto flywheel
11, Generating Coil
To replace generating coil:
– Heat the armature plate to 93°C (200°F) around
the screw holes to break the threadlocker
bond.
1. Heat the armature plate
– Remove screws.
– Uncrimp and unsolder BLACK/RED wire from
coil.
1. Uncrimp and unsolder wire here
13, Battery Charging Coil
To replace battery charging coil:
– Heat the armature plate to 93°C (200°F) around
the screw holes to break the threadlocker
bond.
1. Heat the armature plate
– Remove screws.
– Uncrimp and unsolder YELLOW and YEL-
LOW/BLACK wires from coil.
-
CAUTION
Protect harness from flame.
1
F01D3AA
F00D08A
1
-
CAUTION
Protect harness from flame.
A25E0QA
1
F00D09A
1
