Sea-doo SP User Manual

Section 09 STEERING SYSTEM
Sub-Section 04 (GS, GSI, GSX, GTI AND GTX MODELS)
09-04-2

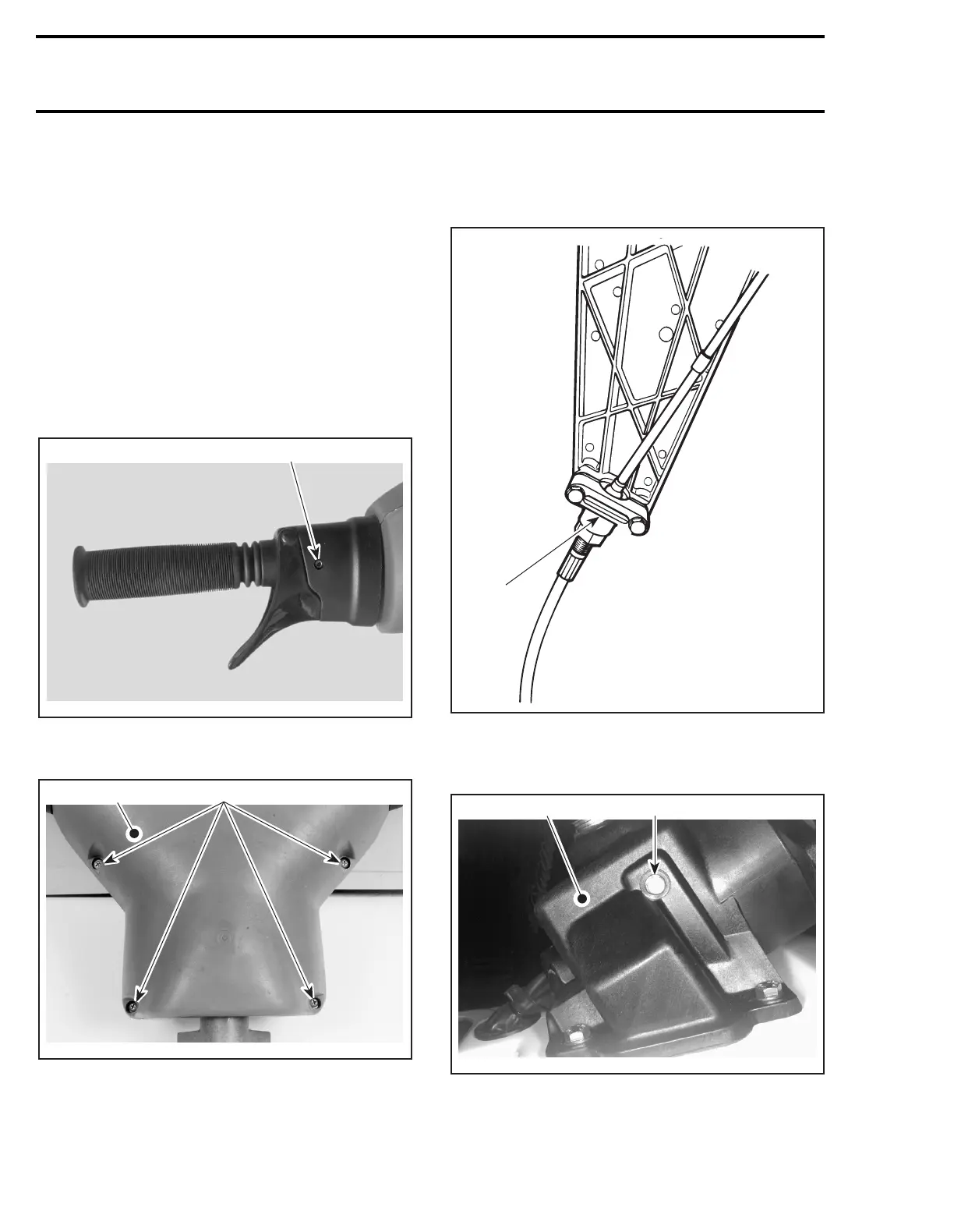

DISASSEMBLY
1,21, Grip and Grip Insert
To remove grip, pull out cap
no. 2
and remove
screw
no. 3
.
Pull out grip.
To verify grip insert for damage, remove it from
handlebar
no. 22
.
4, Cover
Remove grips
no. 1
.
Loosen set screws
no. 5
of handlebar housings
no. 6
.
1. Set screw
Remove 4 screws
no. 7
.
TYPICAL
1. Cover
2. Screws
Remove cover.
8, Cable Support
Loosen bolts
no. 9
and remove retaining block
no. 10
.
1. Retaining block
Loosen bolts
no. 11
each side of steering support
no. 12
.
1. Steering support
2. Bolt
F00K01A
1
F00K02A
2
1
F01K18C
1
F07K02A
1 2
