Section 09 STEERING SYSTEM
Sub-Section 04 (GS, GSI, GSX, GTI AND GTX MODELS)
09-04-3

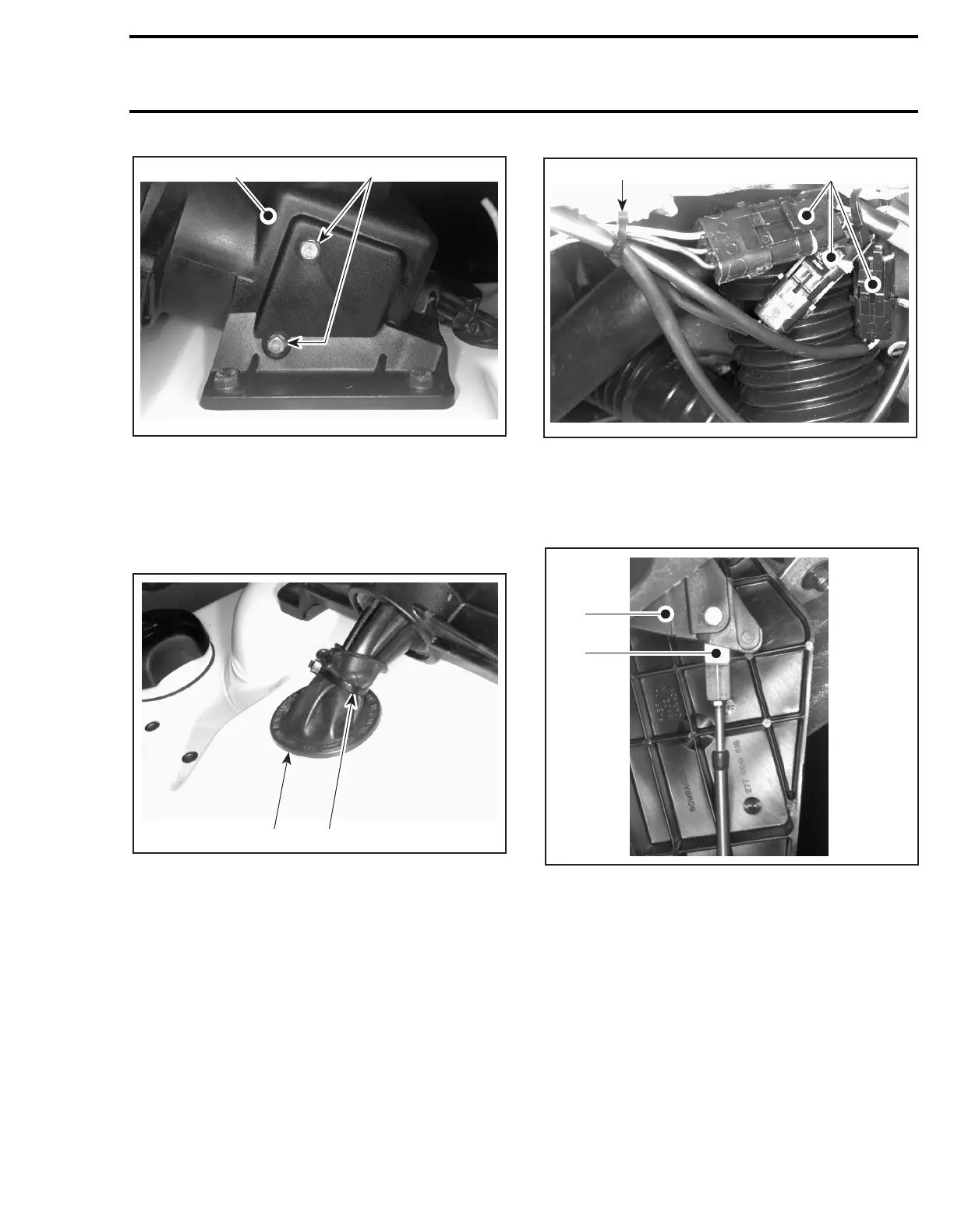

1. Steering support
2. Bolts
Remove support.
12, Steering Support
Cut tie rap securing wiring harness boot.
1. Boot
2. Tie rap
Disconnect the throttle and choke cables from
carburetor levers.
Disconnect the wiring harnesses leading out of
steering stem and cut tie rap.
TYPICAL
1. Tie rap
2. Connectors
Disconnect the steering cable from the steering
stem arm
no. 15
.
1. Steering stem arm
2. Steering cable
Loosen bolts
no. 11
retaining cable support to
steering support (refer to cable support
no. 8
).
Loosen bolts
no. 13
and lock nuts
no. 14
.
1
2
F07K03A
F07K04A
1 2
F07K05A
21
F07K06A
1
2
