Section 11 HULL/BODY
Sub-Section 02 (ADJUSTMENT AND REPAIR)
11-02-15
SEAT ADJUSTMENT
All Models Except the HX and XP
Adjust seat retainer
no. 1
as per following specifi-
cations:

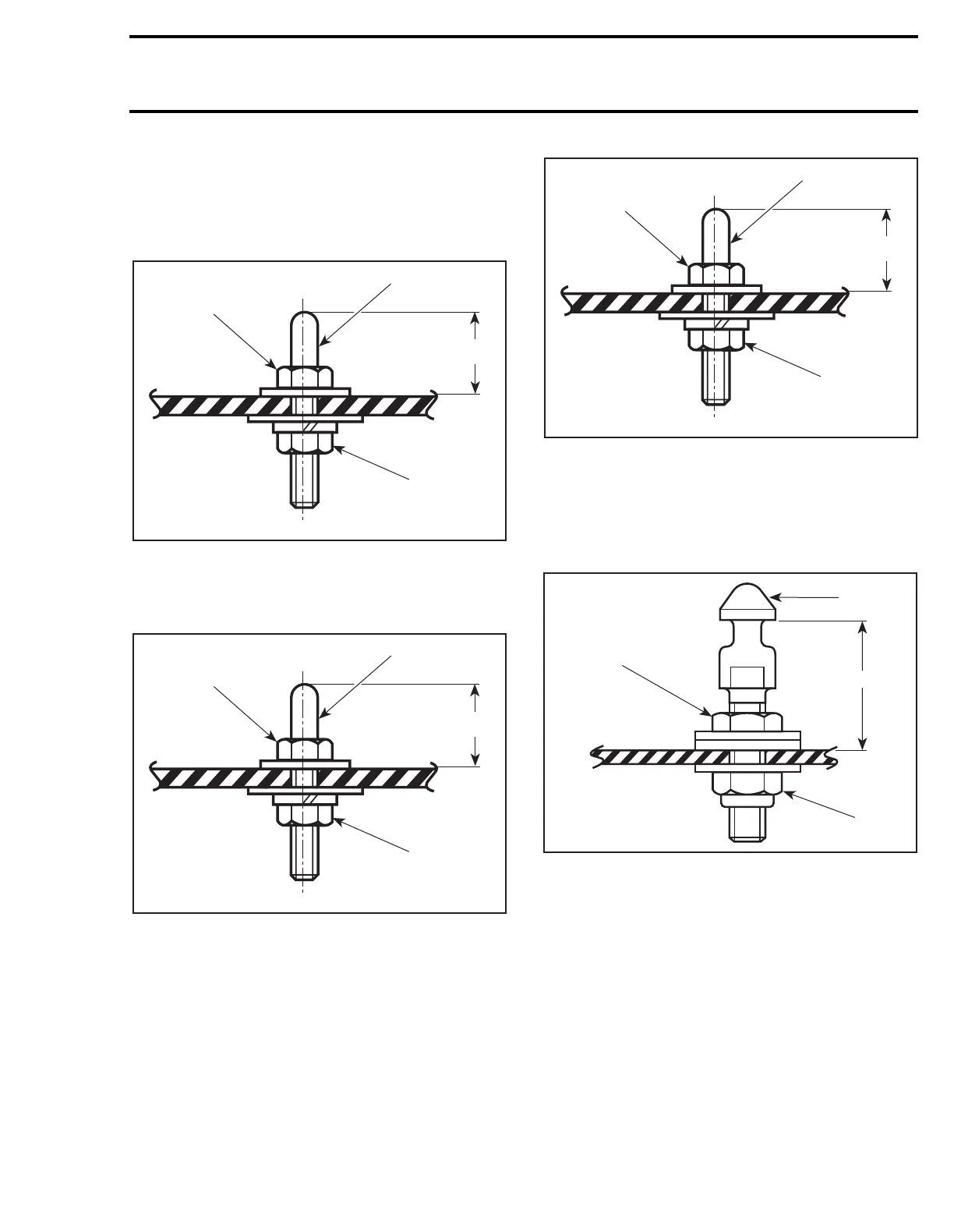

SP, SPX, GTI AND GTX MODELS
1. Seat retainer
2. Adjustment nut (Loctite 271)
3. Nut (Loctite 242). Torque to 8 N•m (71 lbf•in)
A. 25 ± 1 mm (63/64 ± 3/64 in)
GS, GSI AND GSX MODELS
1. Seat retainer
2. Adjustment nut (apply Loctite 271)
3. Nut (apply Loctite 242 and torque to 8 N•m (71 lbf•in)
A. 21 ± 1 mm (53/64 ± 3/64 in)
GTS MODEL
1. Front hook
2. Adjustment nut (Loctite 271)
3. Nut (Loctite 242). Torque to 8 N•m (71 lbf•in)
A. 22.5 (+1, –0) mm (51/64 (+1/32, –0) in)
Adjust lock pin
no. 2
as per following specifica-
tions:
SP AND SPX MODELS
1. Lock pin
2. Adjustment nut (Loctite 271)
3. Lock nut. Torque to 5 N•m (44 lbf•in)
A. 37 ± 1 mm (1-29/64 ± 3/64 in)
F02L24A
3
2
1
A
F02L24A
3
2
1
A
F02L24A
3
2
1
A
F02L25C
1
A
3
2
