Section 03 ENGINE
Sub-Section 04 (MAGNETO SYSTEM)
03-04-5

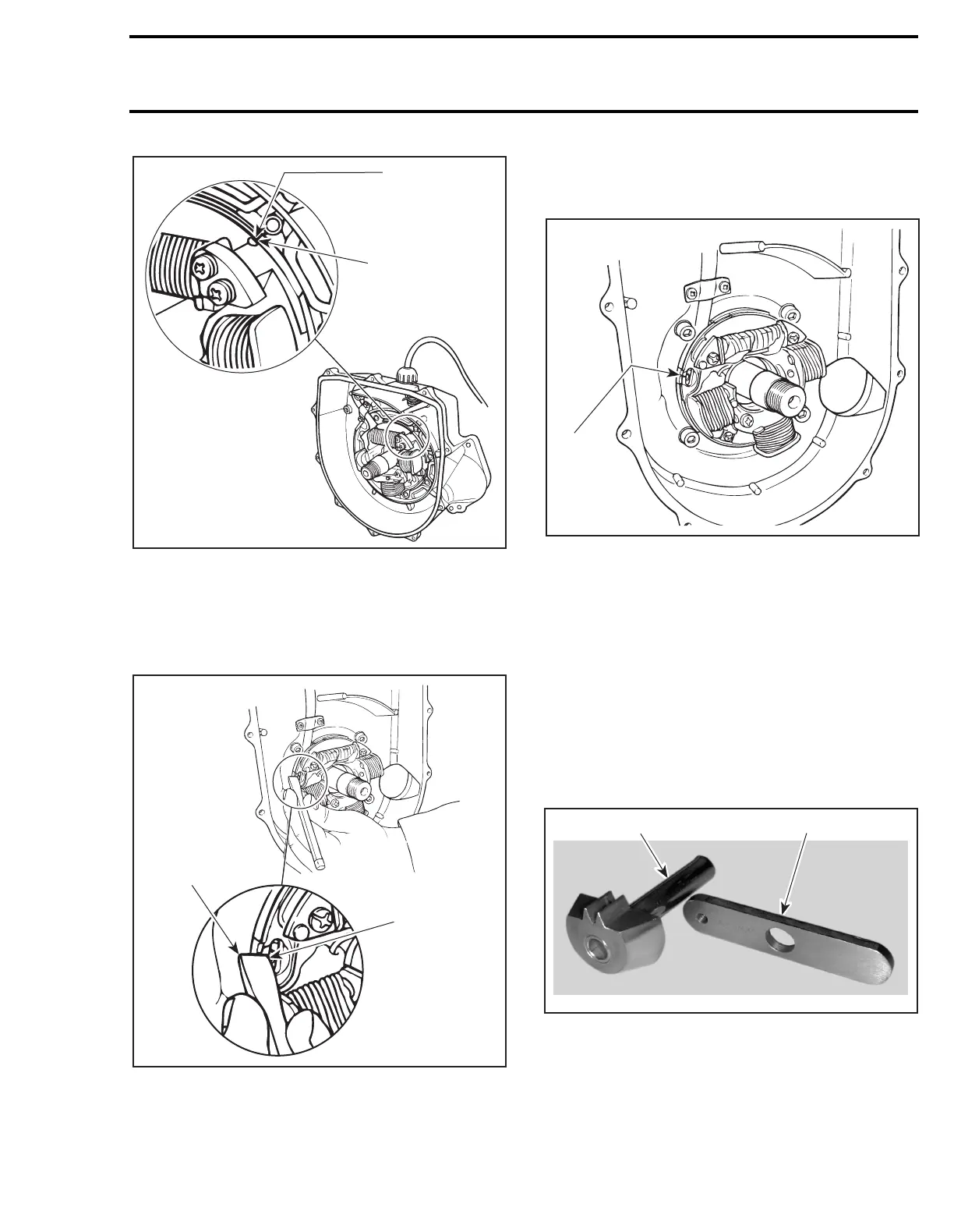

TYPICAL
1. Lug end of crankcase
2. Align mark and lug end here
– Find manufacturer’s mark on armature plate. In
line with this mark, punch another mark on ad-
jacent crankcase lug.
TYPICAL
1. Manufacturer’s mark on armature plate
2. Punch a mark on crankcase lug aligned with plate mark
The new mark on crankcase will be used for fur-
ther assembly positioning as a pre-timing posi-
tion.
TYPICAL
1. For further assembly, use these marks
787 Engine
1, Magneto Housing Cover
Loosen screws
no. 2.
Remove engine magneto
cover.
4,5, Rotor and Flywheel
Remove starter. Refer to ELECTRICAL SYSTEM
07-04.
Lock ring gear using special tool.
1. Ring gear blocking tool (P/N 295 000 134)
2. Retaining plate (P/N 295 000 154)
1
F01D4EA
2
F01D4FA
2
1
F01D4GA
1
F01B26A
1
2
