Section 03 ENGINE
Sub-Section 04 (MAGNETO SYSTEM)
03-04-4

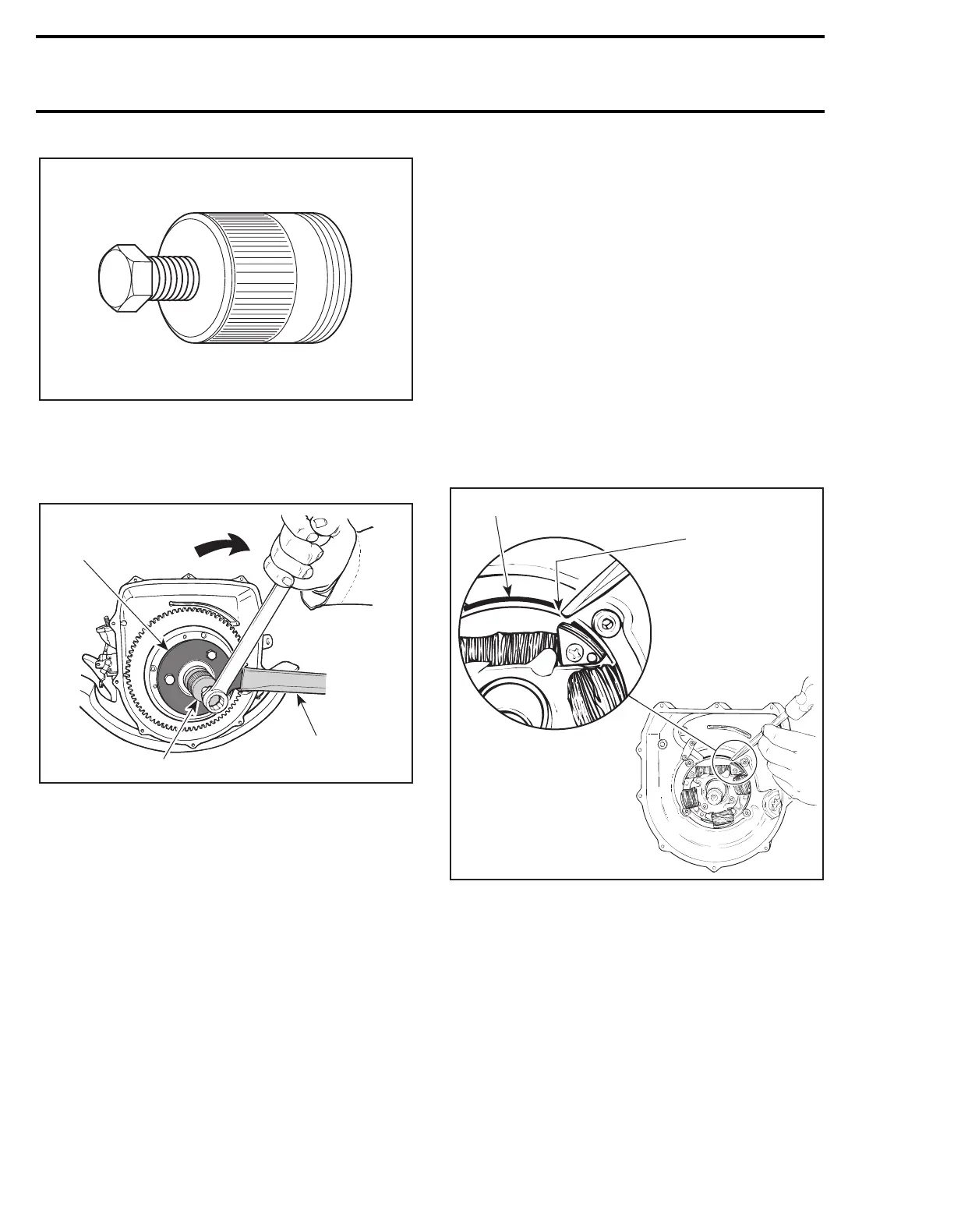

Fully thread on puller in puller plate.
Tighten puller bolt and at the same time, tap on
bolt head using a hammer to release magneto fly-
wheel from its taper.
1. Puller plate
2. Puller
3. Extension handle
10, Armature Plate
Remove 3 retaining screws
no. 15
and withdraw
armature plate.
7, Magneto Housing
To remove magneto housing, starter has to be re-
moved. Refer to ELECTRICAL SYSTEM 07-04.
Unscrew retaining screws
no. 9
, then withdraw
housing.
Engine Crankcase Replacement
717 Engines
Since replacement crankcases do not have timing
mark for armature plate location, indexing marks
should be made on armature plate and crankcase
to ease reassembly and further ignition timing.
The following procedure is to find a common ref-
erence point on both crankcases (old and new) to
position armature plate.
Proceed as follows:
– Find a crankcase locating lug (the top one in this
example).
– Place a cold chisel at the end of chosen lug,
then punch a mark on armature plate at this
point.
1. Crankcase locating lug
2. Mark armature plate at the end of lug
– At assembly, align armature plate mark (previ-
ously punched) with the end of the same locat-
ing lug on the new crankcase.
A00C1AA
1
2
3
F01D4CA
2
1
F01D4DA
