Section 05 FUEL SYSTEM
Sub-Section 02 (FUEL CIRCUIT)
05-02-8

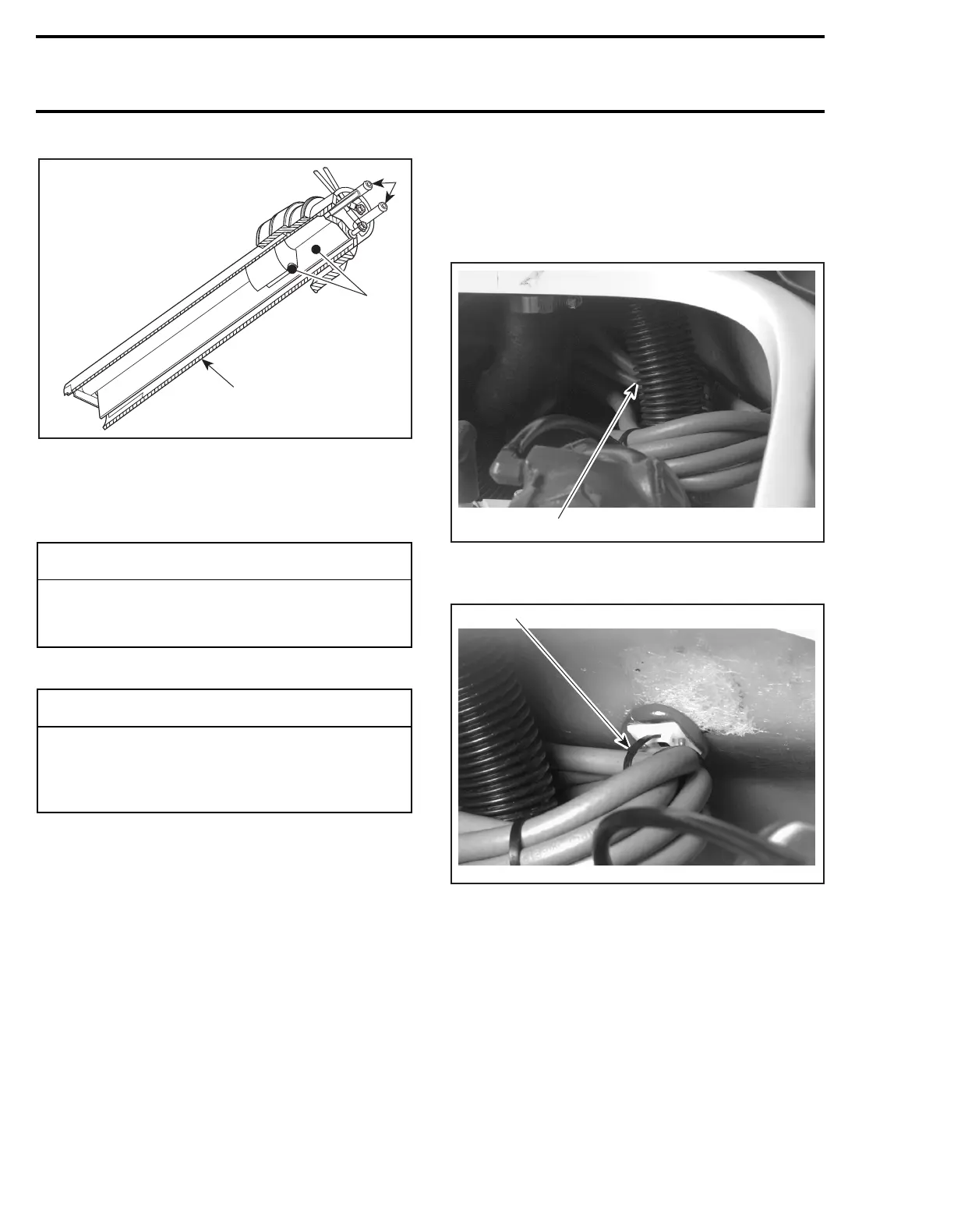

1. Pick up tube
2. Fuel sensor
3. Baffle pick up
Disconnect BLACK negative cable, then RED pos-
itive cable of battery.
Empty fuel tank.
SP, SPX and GTS Models
Open storage compartment cover.
Remove storage basket from watercraft.
On GTS model, remove vent tube. Refer to
fuel
filter removal
procedure in this sub-section.
Disconnect filler neck hose
no. 5
from fuel tank.
Remove retaining straps
no. 13
from fuel tank
and move tank forward.
GS, GSI and GSX Models
Open storage compartment cover.
Remove storage basket from watercraft.
Remove steering assembly. Refer to STEERING
SYSTEM 09-04.
GTI and GTX Models
Remove glove box.
HX Model
Pull down left vent tube.
1. Vent tube
Cut tie rap retaining fuel hoses to tie-mount.
1. Cut tie rap
XP Model
Tilt seat. Refer to HULL/BODY 11-02.
Remove access plug on body.
All Models
Remove hoses from baffle pick up and disconnect
wiring harness of fuel sensor (if applicable).
â—†
WARNING
Always disconnect battery cables exactly in
the specified order, BLACK negative cable
first.
â—†
WARNING
Fuel is flammable and explosive under cer-
tain conditions. Always work in a well venti-
lated area. Always wipe off any fuel spillage
from the watercraft.
F01F20A
1
2
3
F05L14A
1
F05F02A
1
