Section 07 ELECTRICAL SYSTEM
Sub-Section 02 (IGNITION SYSTEM)
07-02-5
717 Engines

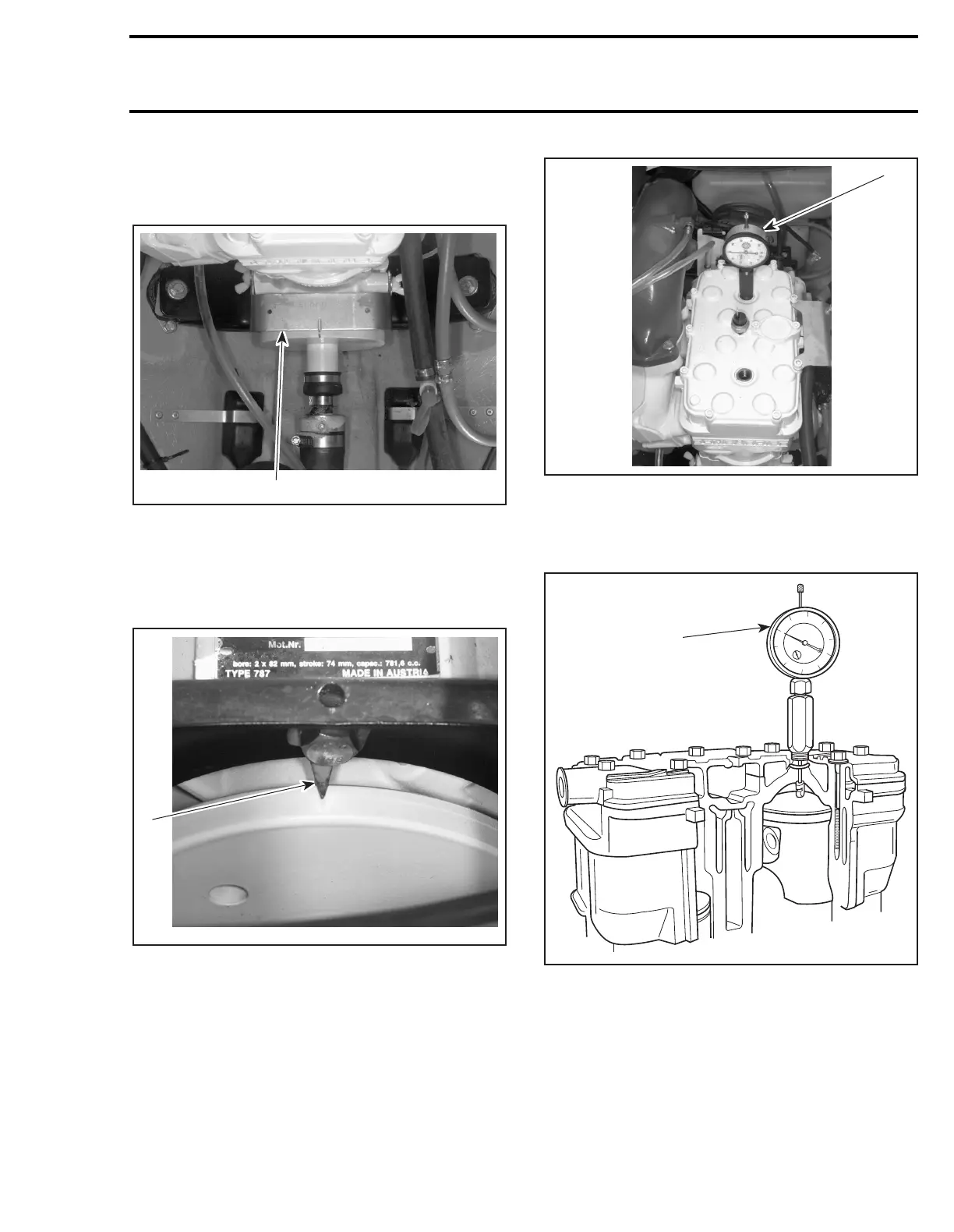

3. Install timing mark pointer tool on engine using
wing nuts previously removed.
1. Timing mark pointer tool (P/N 295 000 130)
787 Engine
3. Remove middle screw securing the engine to
the rear engine mount. Reinstall screw with
timing mark pointer tool.
1. Timing mark pointer tool (P/N 295 000 135)
All Engines
4. Install and adjust a TDC gauge (P/N 295 000
143) in MAG side spark plug hole.
TYPICAL
1. TDC gauge on MAG side
5. Rotate PTO flywheel counterclockwise (when
facing it) until piston is at top dead center.
TYPICAL
1. Adjust gauge dial at zero
6. From this point, rotate flywheel clockwise to
reach proper specification according to engine.
Refer to the following chart.
F01H5SA
1
F06H05A
1
F01H5TA
1
90
80
70
60
50
40
30
20
10
0
1
F01H4LA
To Next Page
