Section 08 PROPULSION SYSTEM
Sub-Section 02 (JET PUMP)
08-02-5

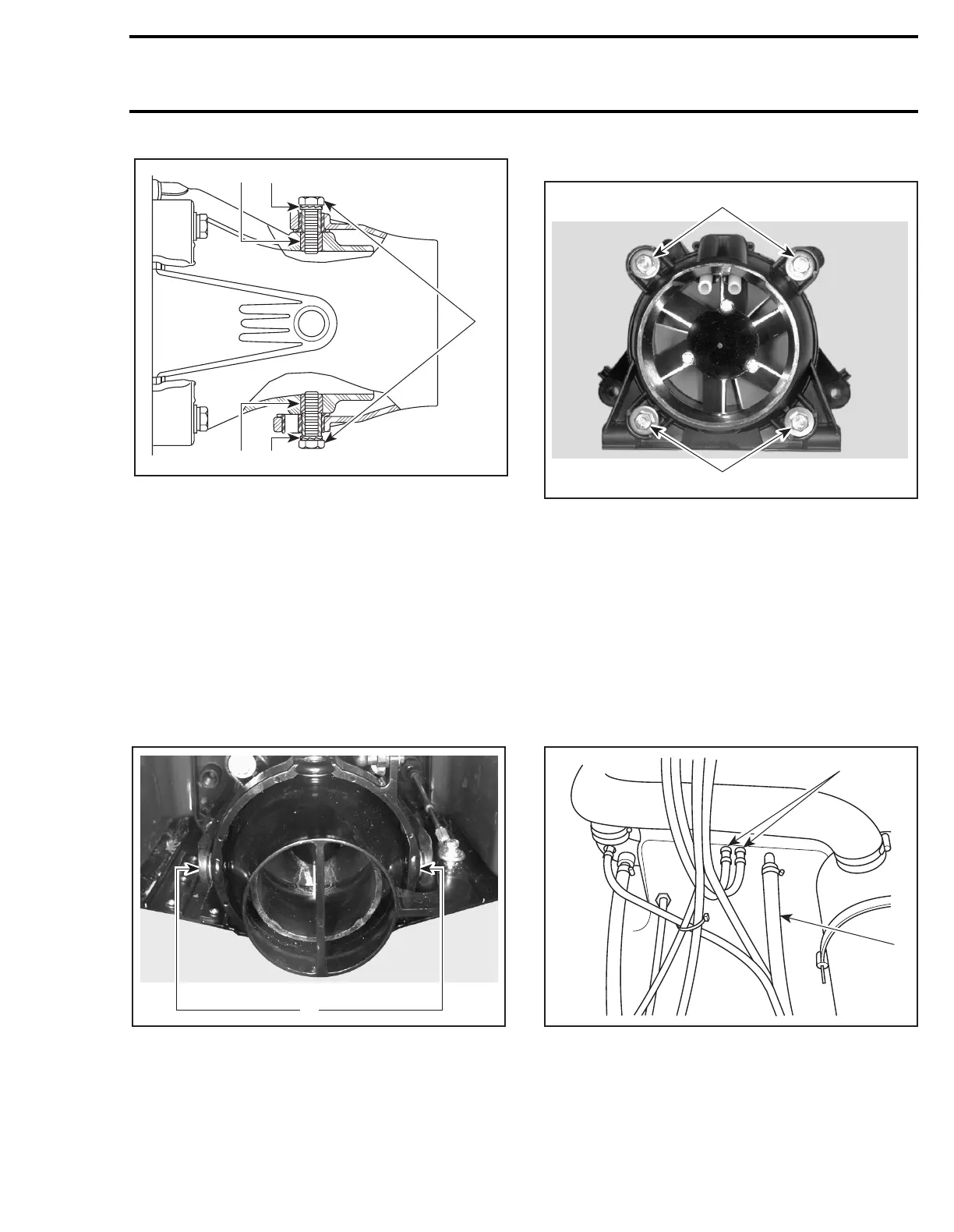

TYPICAL
1. Screw
2. Locking disks
3. Sleeve
Remove nozzle.
SPX, GSI, GSX and XP Models
Disconnect ball joint of VTS link rod.
HX Model
Loosen fasteners retaining trim support to nozzle.
SPX, GSI, GSX, XP and HX Models
Loosen 2 screws each side of trim ring.
1. Screws
Remove nozzle.
11, Venturi
Remove nozzle
no. 5
prior removing venturi.
Remove 4 retaining screws and withdraw venturi.
1. Remove screws
9, Jet Pump Housing
NOTE:
In the following procedure, jet pump hous-
ing is removed with nozzle and reverse gate (if ap-
plicable).
SP, SPX and GTS Models
Remove air vent tube support from body opening
(SP and SPX models).
Disconnect engine water inlet hose and both bail-
er pick-up tubes in bilge.
TYPICAL
1. Bailer pick-up tubes
2. Engine water inlet hose
SPX, XP, GSI and GSX Models
Detach ball joint of VTS link rod.
F01J3BE
2
1
2
3
3
F01J5FA
1
F02J0TA
1
1
F01J0IA
1
2
