Section 08 PROPULSION SYSTEM
Sub-Section 02 (JET PUMP)
08-02-12
NOTE:
To ease insertion into housing, apply
BOMBARDIER LUBE lubricant (P/N 293 600 016)
onto outside circumference of wear ring.

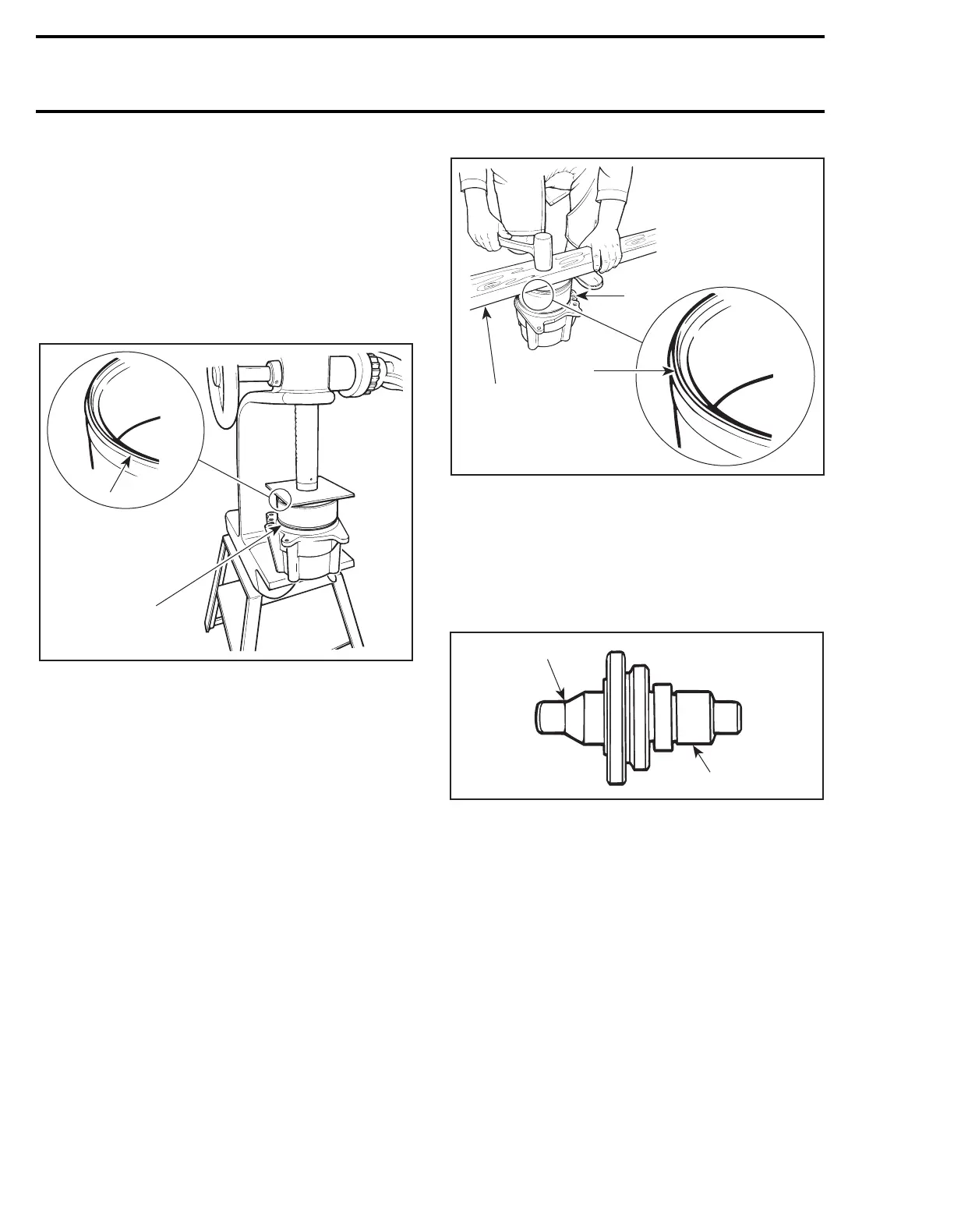

To install ring in housing, use a square steel plate
of approximately 180 × 180 mm × 6 mm thick
(7 × 7 in × 1/4 in) and a press.
Manually engage ring in housing making sure it is
equally inserted all around. Press ring until it seats
into bottom of housing.
1. Seal lip
2. Press wear ring
If a press is not readily available, a piece of wood
such as a 2 × 4 × 12 in long, can be used.
Manually engage ring in housing making sure it is
equally inserted all around. Place wood piece over
ring. Using a hammer, strike on wood to push
ring. Strike one side then rotate wood piece about
90° and strike again. Frequently rotate wood
piece so that ring slides in evenly until it seats into
bottom of housing.
1. Piece of wood
2. Seal lip facing upward
3. Wear ring
22,23, Seal and Needle Bearing
Bearings and seal will be properly installed in
housing using bearing/seal installer tool (P/N 295
000 107).
BEARING/SEAL INSTALLER TOOL
1. Seal side
2. Bearing side
Stamped end of bearings (showing identification
markings) must be located toward outside of
housing.
Properly insert bearing on tool. Using an arbor
press only, push tool until tool flange contacts
housing. Proceed the same way for both bear-
ings.
F01J5DA
1
2
F01J5EA
1
3
2
F01J4KA
2
1
