Section 09 STEERING SYSTEM
Sub-Section 06 (ALIGNMENT)
09-06-2
All Models Except GTS

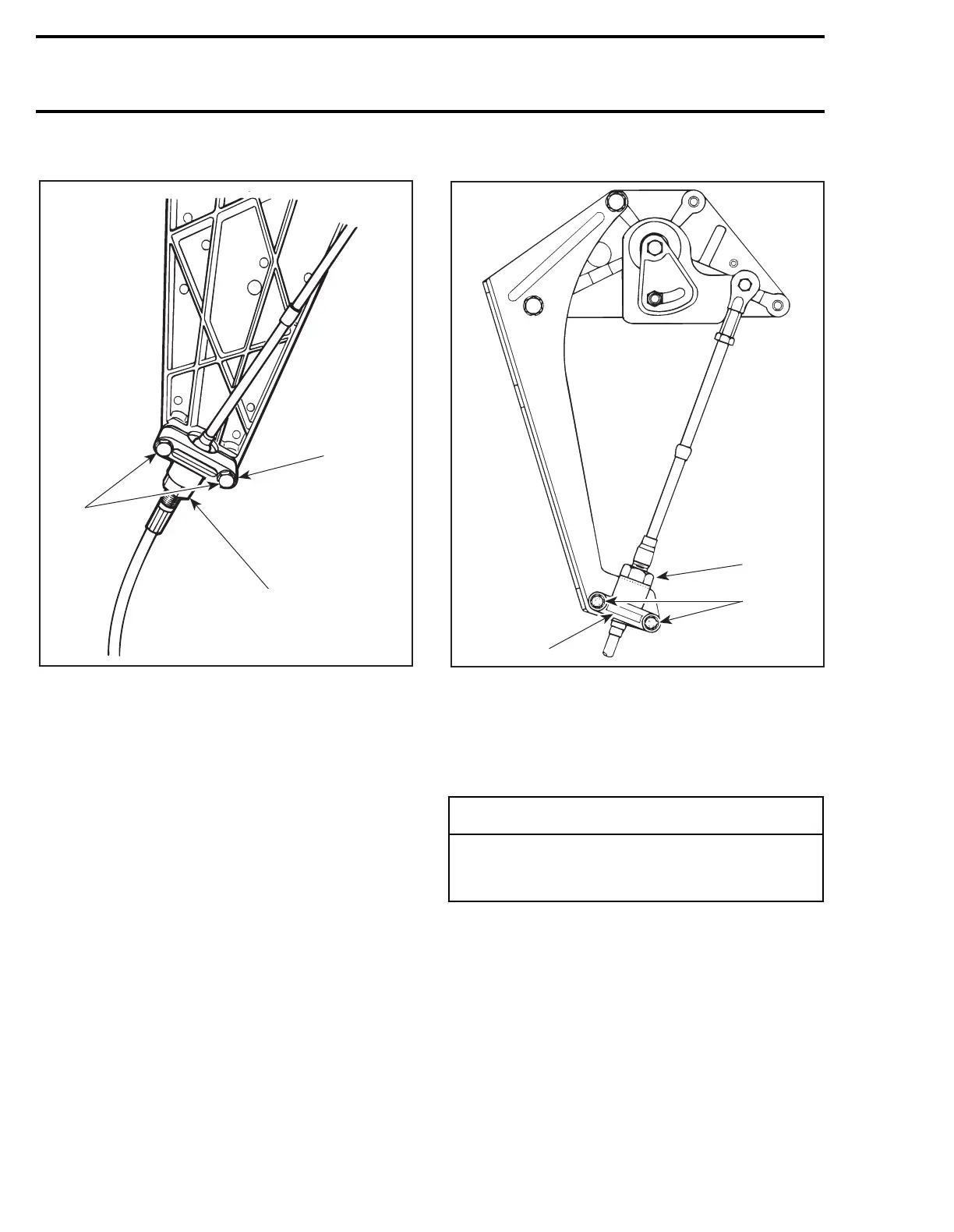

1. Retaining block
2. Adjustment nut
3. Bolts
GTS Model
1. Retaining block
2. Adjustment nut
3. Bolts
All Models
After adjustment, torque retaining block bolts to
6 N•m (53 Ibf•
in
).
F01K18A
1
3
2
-
CAUTION
Verify when the handlebar is turned com-
pletely to the left or right side, that there is
no interference with venturi housing.
F03K03A
2
3
1
