Section 03 ENGINE
Sub-Section 03 (REMOVAL AND INSTALLATION)
03-03-3

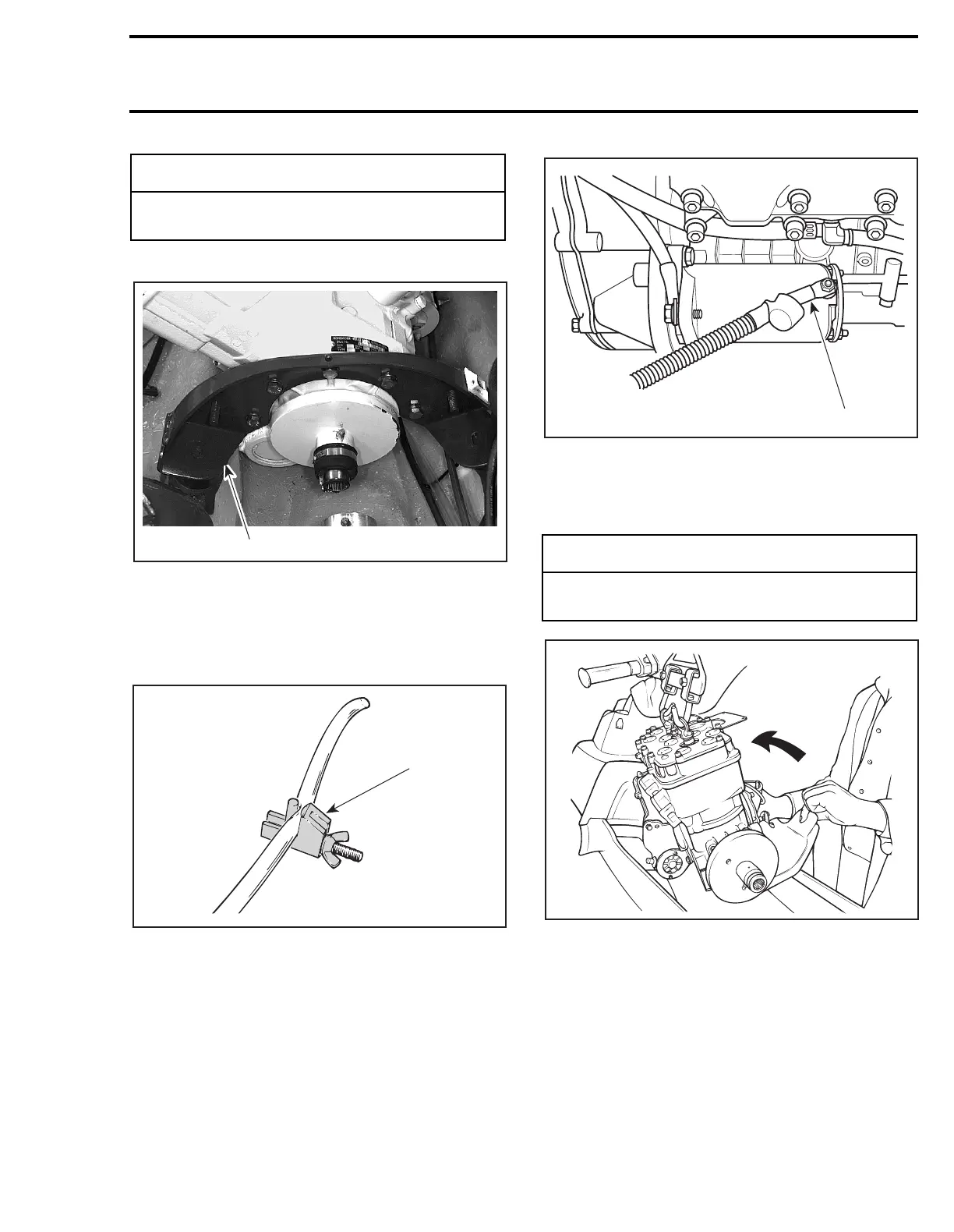

Remove rear engine support.
1. Rear support
All Engines
Install a hose pincher to oil supply hoses of oil in-
jection pump and rotary valve shaft; then, discon-
nect hoses.
TYPICAL
1. Hose pincher (P/N 295 000 076)
Install a hose pincher to oil return hose of rotary
valve shaft; then, disconnect hose.
Disconnect RED positive cable from starter post.
TYPICAL
1. Disconnect RED positive cable
Carry on engine lifting then tilt engine so that it
can be removed from the body opening.
TYPICAL — ALL ENGINES EXCEPT THE 787
-
CAUTION
Take care not to damage cable or oil injec-
tion hoses.
F01D7PA
1
A01B2JB
1
-
CAUTION
Be careful not to scratch body or to hit any
component.
F01H1JB
1
F01D40A
