Section 03 ENGINE
Sub-Section 06 (BOTTOM END)
03-06-10

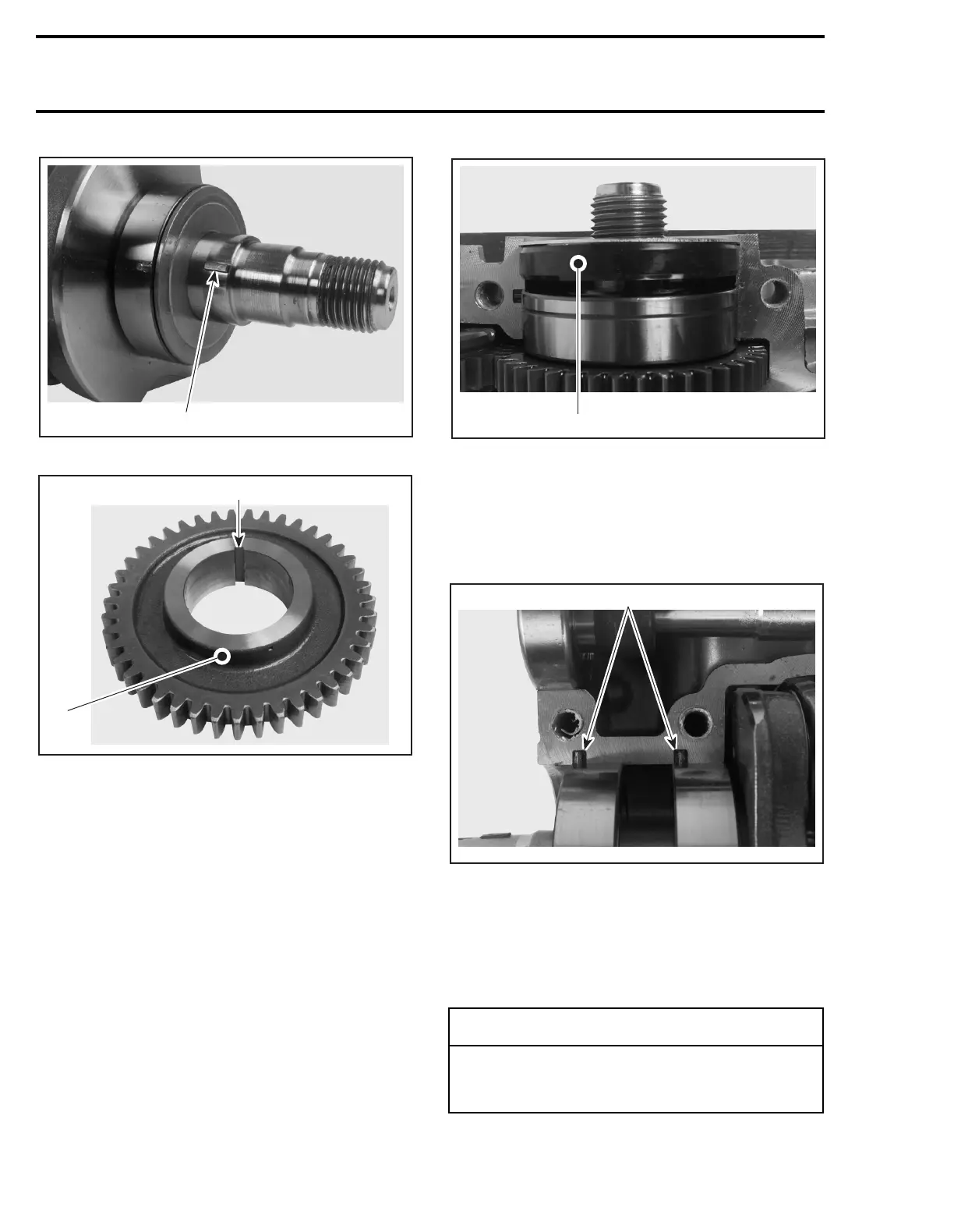

1. Woodruff key on the crankshaft
1. Keyway
2. Long flange toward the crankshaft counterweight
1, Seal
At seal assembly, apply a light coat of lithium
grease on seal lips.
787 Engine
Position PTO seal
no. 1
against the retaining
shim; the gap between the seal and bearing will
ensure proper lubrication of the bearing.
1. Seal against the retaining shim
All Engines
6, Drive Pin
Make sure drive pins of bearings are properly in-
stalled in crankcase recesses at assembly.
1. Drive pin
787 Engine
16,18, Counterbalance Shaft and Gear
Press gear
no. 18
onto counterbalance shaft tak-
ing care to align both marks previously traced.
F00D0LA
1
F00D0MA
1
2
-
CAUTION
Counterbalance shaft must be properly as-
sembled, otherwise engine will vibrates and
premature wear will occur.
F00D0NA
1
F00D0OA
1
