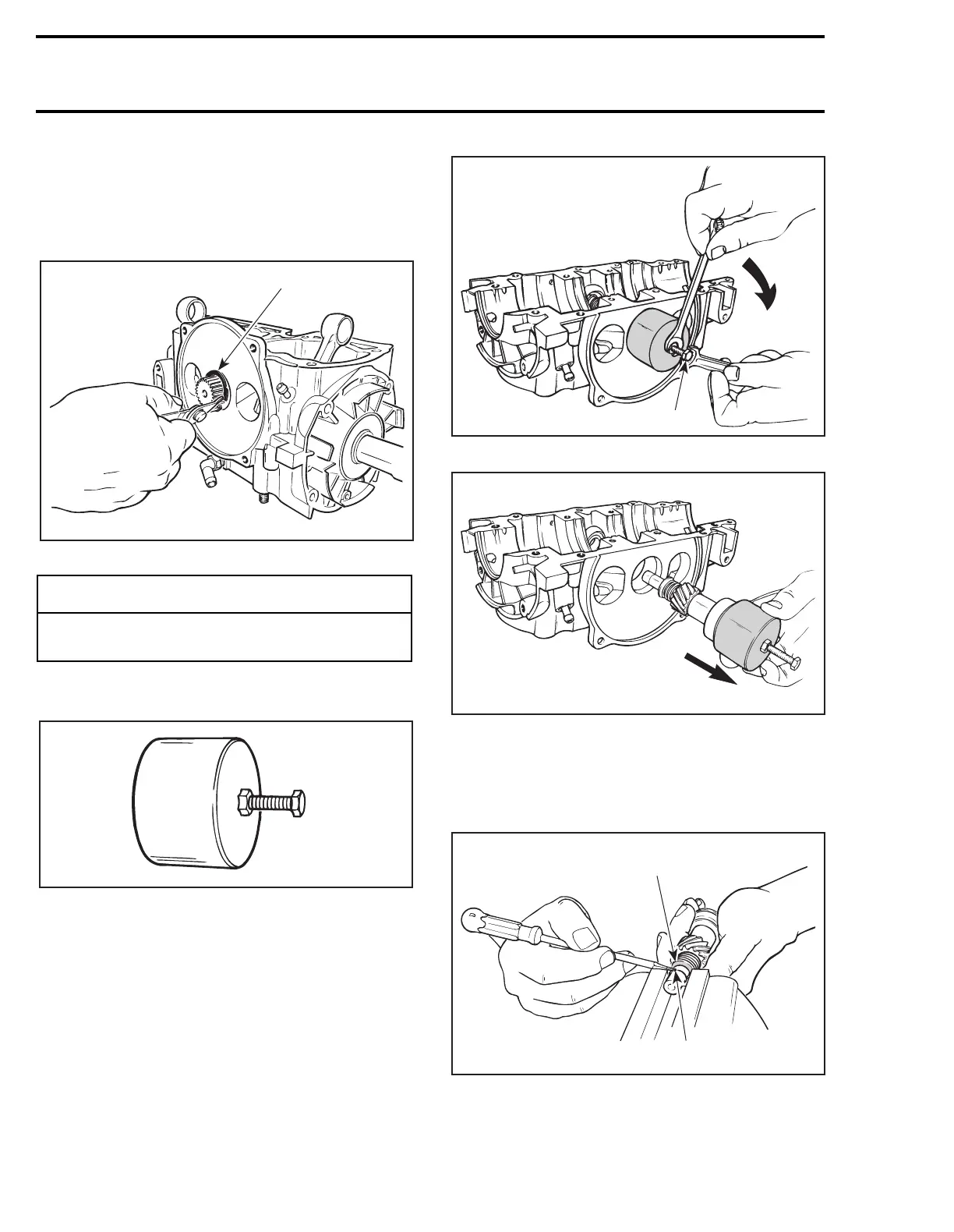

Section 03 ENGINE
Sub-Section 07 (ROTARY VALVE)
03-07-4
DISASSEMBLY
3, Rotary Valve Shaft
To remove the rotary valve shaft assembly, first
remove snap ring
no. 4
from crankcase.
1. Removing snap ring
To remove rotary valve shaft, use the appropriate
puller (P/N 290 876 488).
Place puller over rotary valve shaft end and screw
on puller bolt into shaft. While retaining bolt with
a wrench, turn puller nut CLOCKWISE until shaft
comes out.
1. Hold bolt
5,6, Circlip and Spring Seat
If it is necessary to disassemble components of
rotary valve shaft assembly, use seat to compress
spring and remove circlips.
1. Compress seat
2. Remove circlips
-
CAUTION
Bottom end must be opened to remove rota-
ry valve shaft.
F01D22A
1
F01D23B
F01D61A
1
F01D27A
F01D25A
1
2
