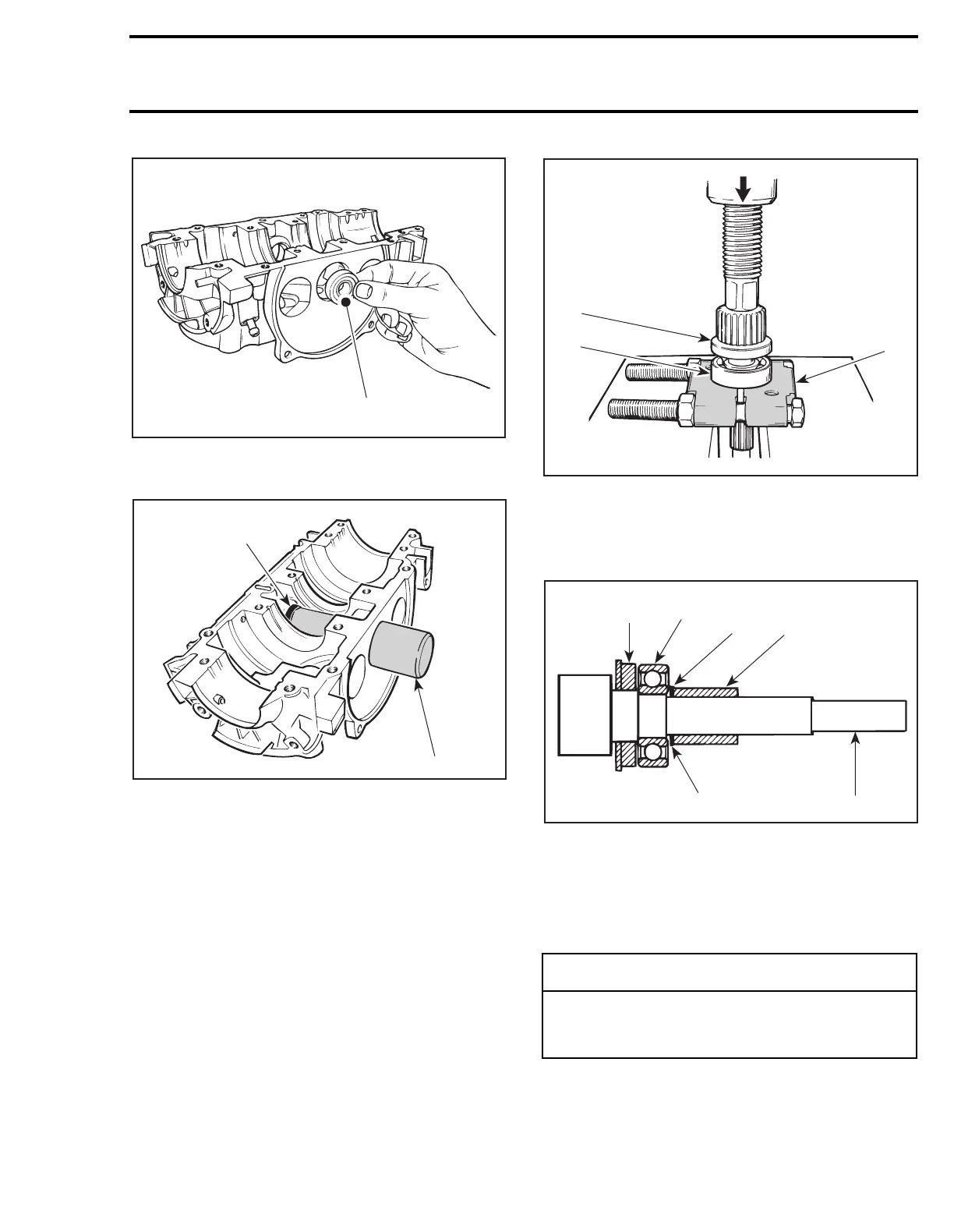

Section 03 ENGINE
Sub-Section 07 (ROTARY VALVE)
03-07-7
1. Shield side (toward gear)
Push bearing until it stops on its seat.
1. Bearing
2. Pusher
11, Seal
Apply lithium grease on seal lips. Position seal
with shielded portion against shaft splines.
8, Bearing
Install ball bearing as illustrated.
1. Seal
2. Ball bearing
3. Bearing extractor Snap-on CJ-950
Install shim
no. 15
, snap ring
no. 7
and slide dis-
tance sleeve
no. 14
on shaft.
1. Seal
2. Ball bearing
3. Snap ring
4. Distance sleeve
5. Shim 0.5 mm (.020 in)
6. Rotary valve shaft
3, Rotary Valve Shaft Assembly
F01D2DA
1
F01D33A
1
2
-
CAUTION
Crankcase halves must be separated and
crankshaft must not be present to install ro-
tary valve shaft assembly in crankcase.
2
1
3
A13C0FB
1
2
3
4
6
5
F01D2FA
To Next Page
