Section 04 ENGINE (2-STROKE)
Subsection 03 (MAGNETO SYSTEM)

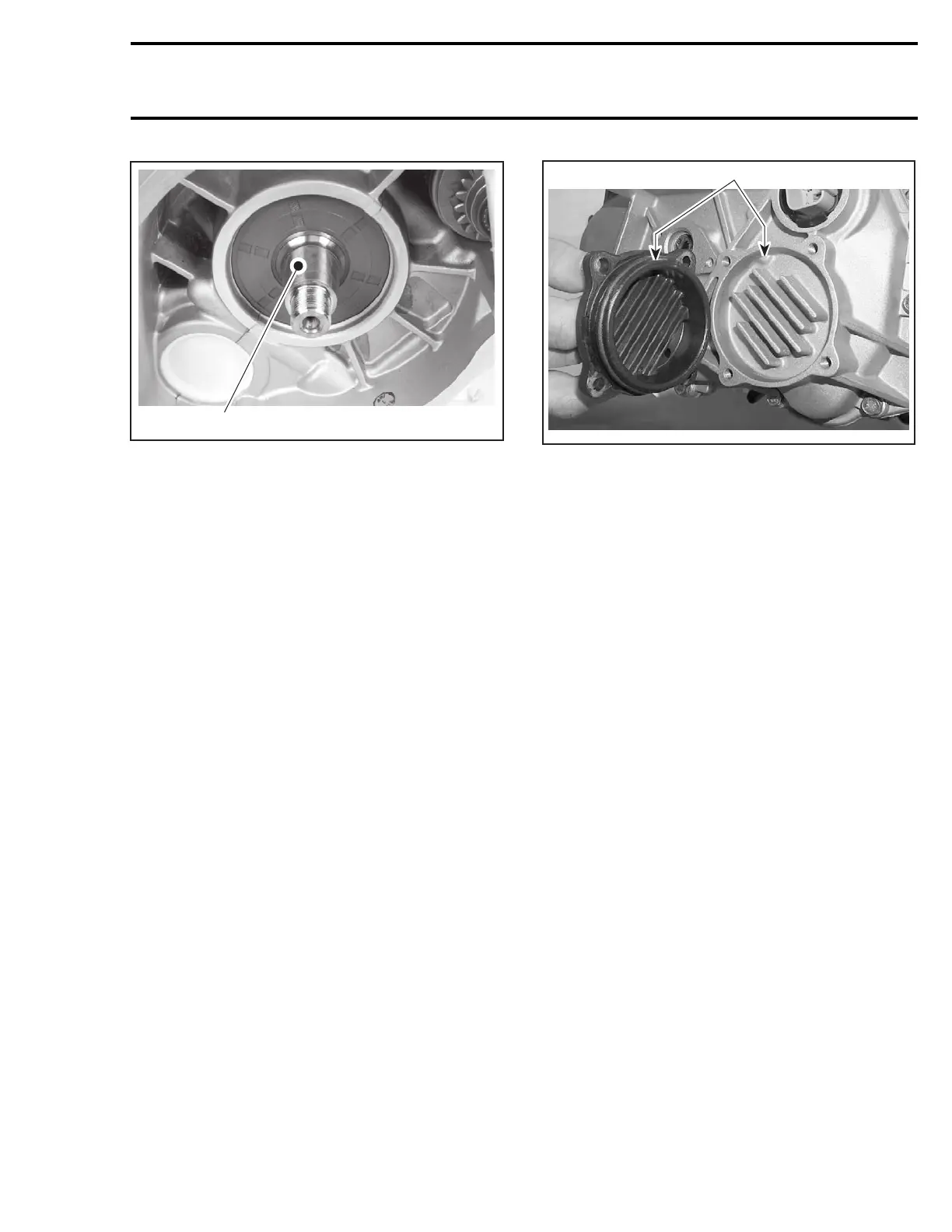

F06D24A
1
1. Loctite 243 (blue) on crankshaft taper
Install flywheel and make sure to align keyway
with the crankshaft Woodruff key.
Apply Loctite 243 (blue) on nut no. 13.Install
nut with lock washer and torque to 115 N•m
(85 lbf•ft).
CAUTION: Never use any type of impact
wrench.
Unlock crankshaft. Reinstall pulse fitting with
washer and torque to 19 N•m(14lbf•ft).
Cover
Before installation, properly install O-ring no. 25 in
engine magneto cover no. 1.
Apply Loctite 767 anti-seize compound on screws
no. 11. Torque screws in a criss-cross sequence
to9N•m(80lbf•in).
If heat exchanger cover has been removed, en-
sure to align its notch with the emboss in casing.
1
F12R0EA
1. Align notch with the emboss
