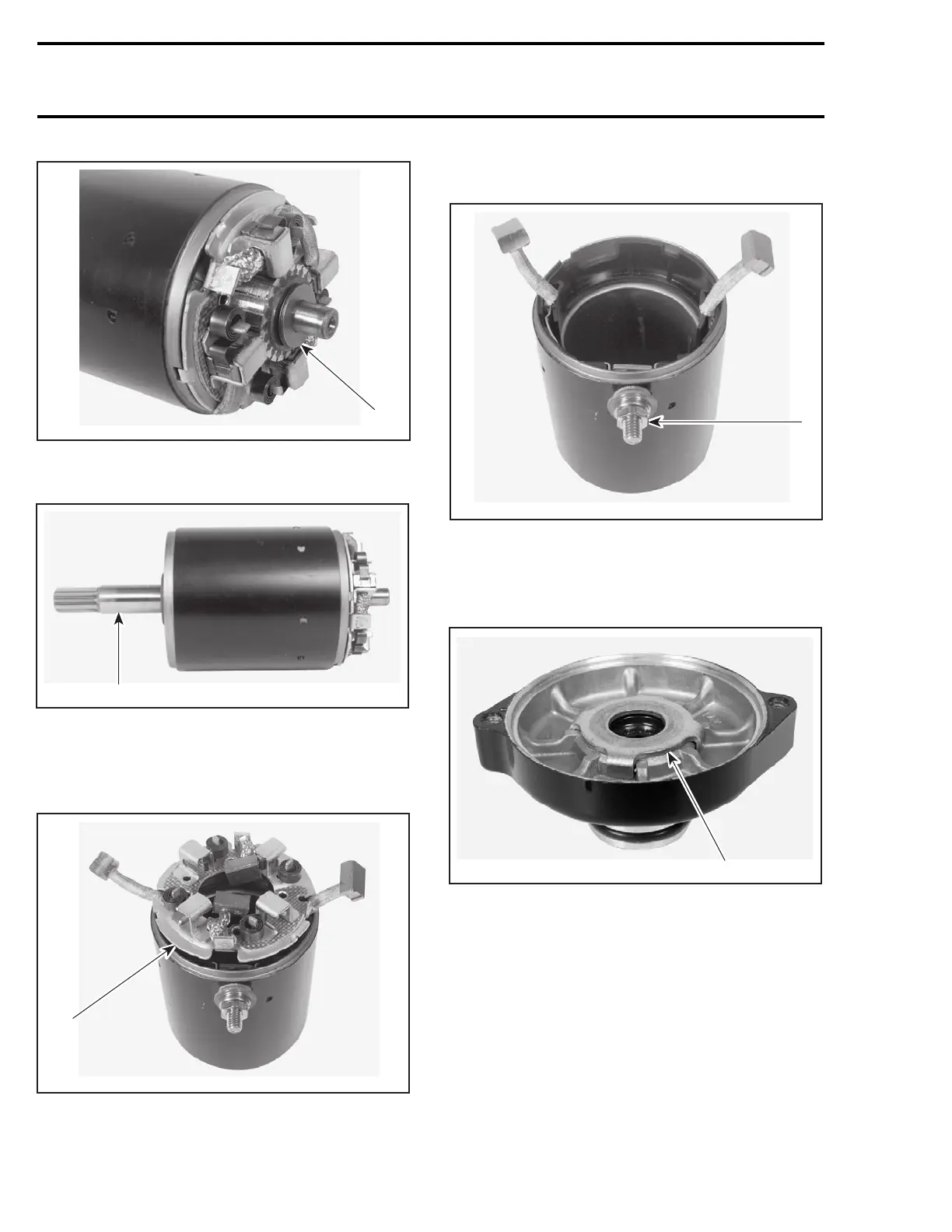

Section12ELECTRICALSYSTEM
Subsection 03 (STARTING SYSTEM)
F06H1IA
1
1. Washers
Remove armature no. 11.
F06H1JA
1
1. Pull armature shaft
Release brush wires of yoke from brush holder
no. 2.
Remove brush holder no. 2.
F06H1KA
1
1. Remove brush holder
To remove brushes from yoke no. 1,loosennut
and remove washers.
F06H1LA
1
1. Loosen nut and remove washers
Remove brushes.
To remove bearing and seal in end cover, release
tabs of retainer.
F06H1MA
1
1. Retainer
4-TEC Engines
Remove bendix retaining circlip no. 4 and starter
bendix no. 5.
582 smr2004-Complete Line Up
