Section 12 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)
1
F18H0NA
2

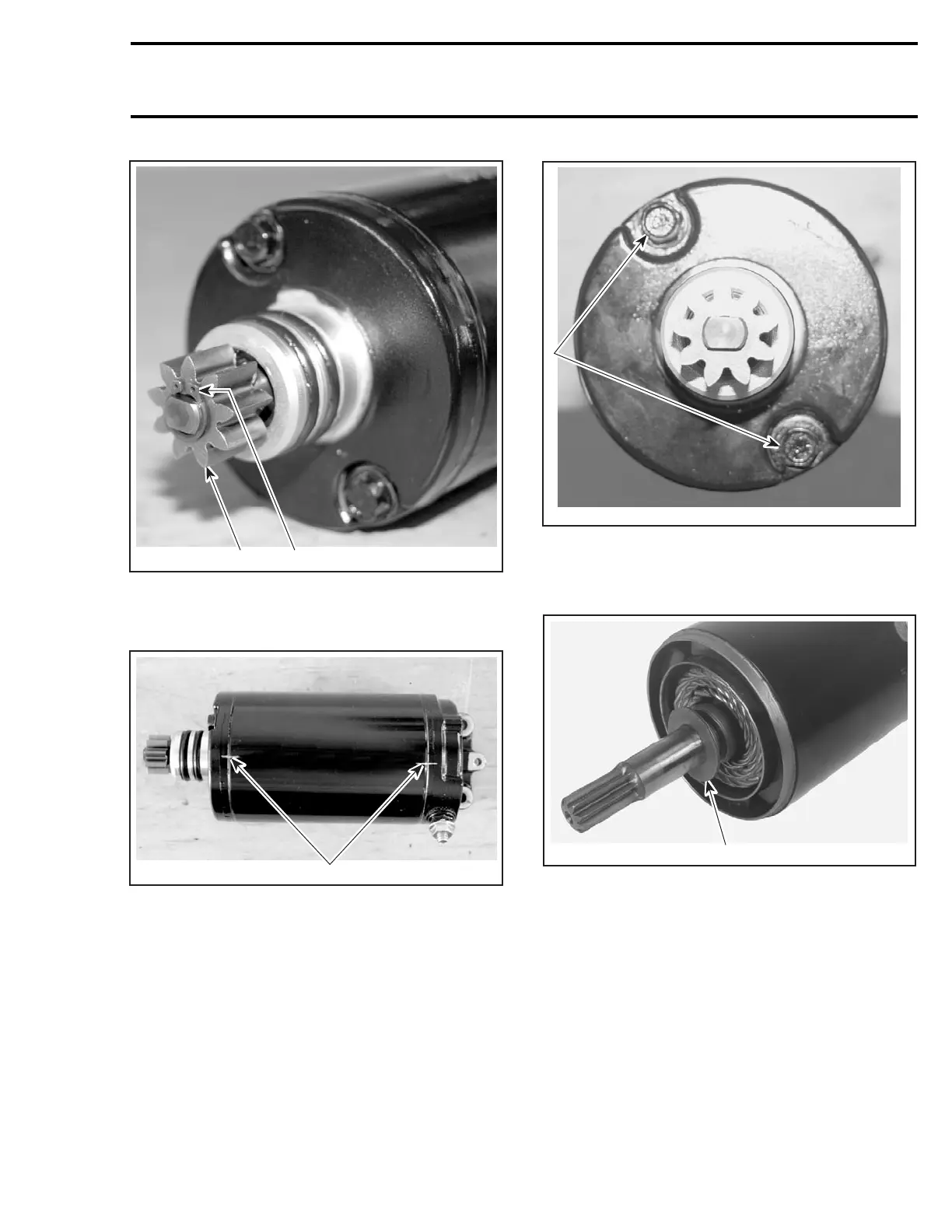

1. Retaining circlip
2. Starter bendix
Locate index marks on yoke and end covers.
1
F18H0OA
1. Index marks
Loosen through bolts.
1
F18H0PA
1. Through bolts
Remove end cover.
Remove thrust washer from armature shaft.
F06H1HA
1
TYPICAL
1. Thrust washers
Remove the other end cover with brushes and
brush holder assembly.
Remove armature.
