HF Series Generators
Renewal Parts
RP-1024R0
4

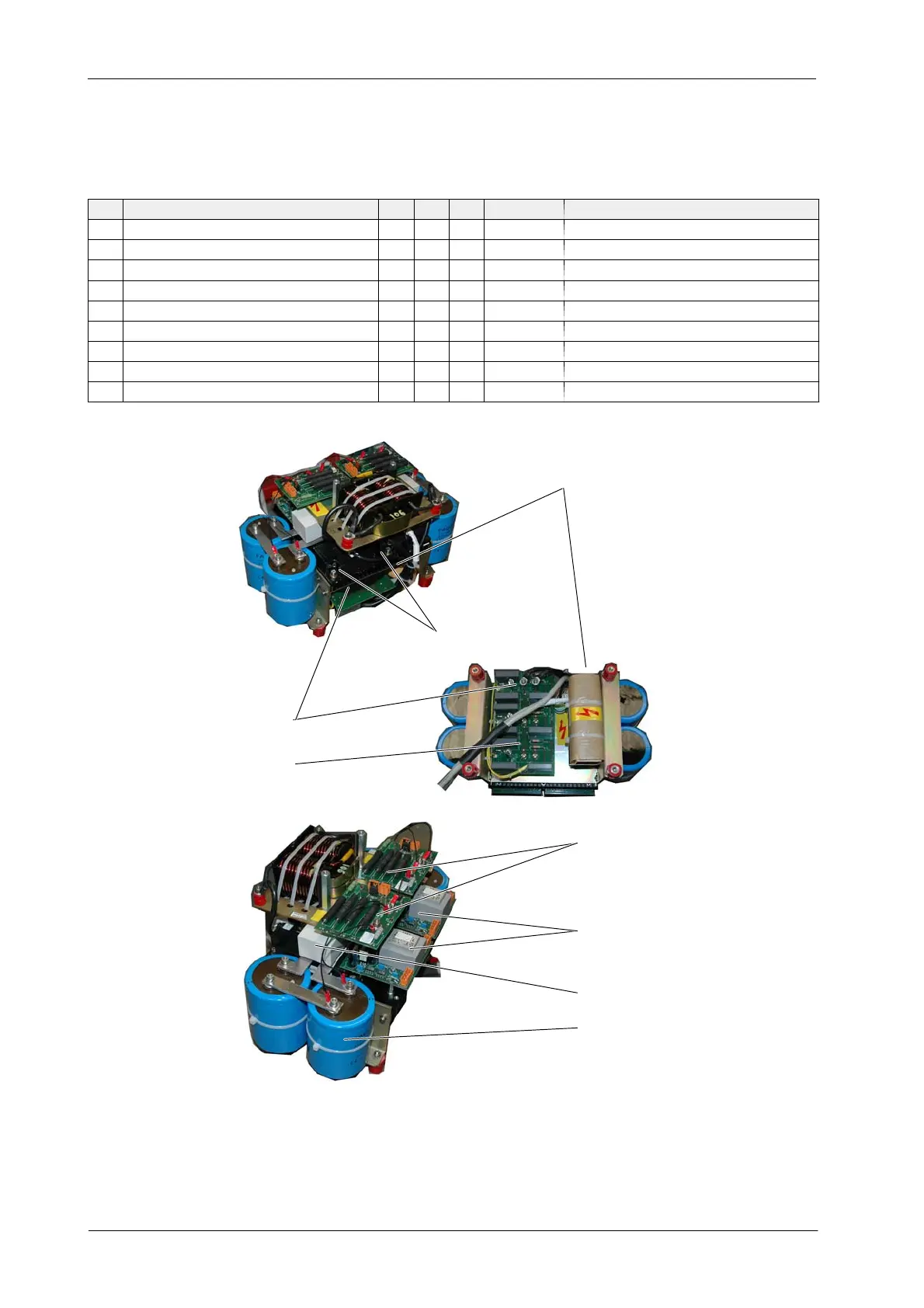

IGBT PANEL ASSEMBLY -- INVERTER (MOD. 5)
Item Designation Qty FRU Rep Mfg. Ref. Remarks
IGBT PANEL ASSEMBLY -- INVERTER (MOD. 5) 1 1 Y A6362--56S Inverter 3 Ph, 380-480 VAC R&F, High kW
17 IGBT 300A/1200V for 3 Ph equipment 2 2 N 53416011S Selected IGBT
18 Capacitor 10 Micro /1000DCV 1 2 N 54001011 C9
19 Capacitor ELE 3700 Micro /450V 4 2 N 54002011 C1, C2, C3, C4
20 Capacitor 2 Micro/1000 V 3 2 N 54008002 C8, C10, C11
21 PCB, IPM Driver 2 1 N A3063--03
22 PCB, Charge/Disharge Monitor 2 1 N A3212--01
23 PCB, Input Rectifier 3 Phase 1 1 N A3255--01
24 Rectifier SKKD 40F10 3 2 N 53404019 CR1, CR2, CR3 Behind Input Rectifier
24
23
18
22
21
20
19
17
