Sedecal SHF-310 - Page 422

HF Series Generators
Renewal Parts
RP-1024R0
5

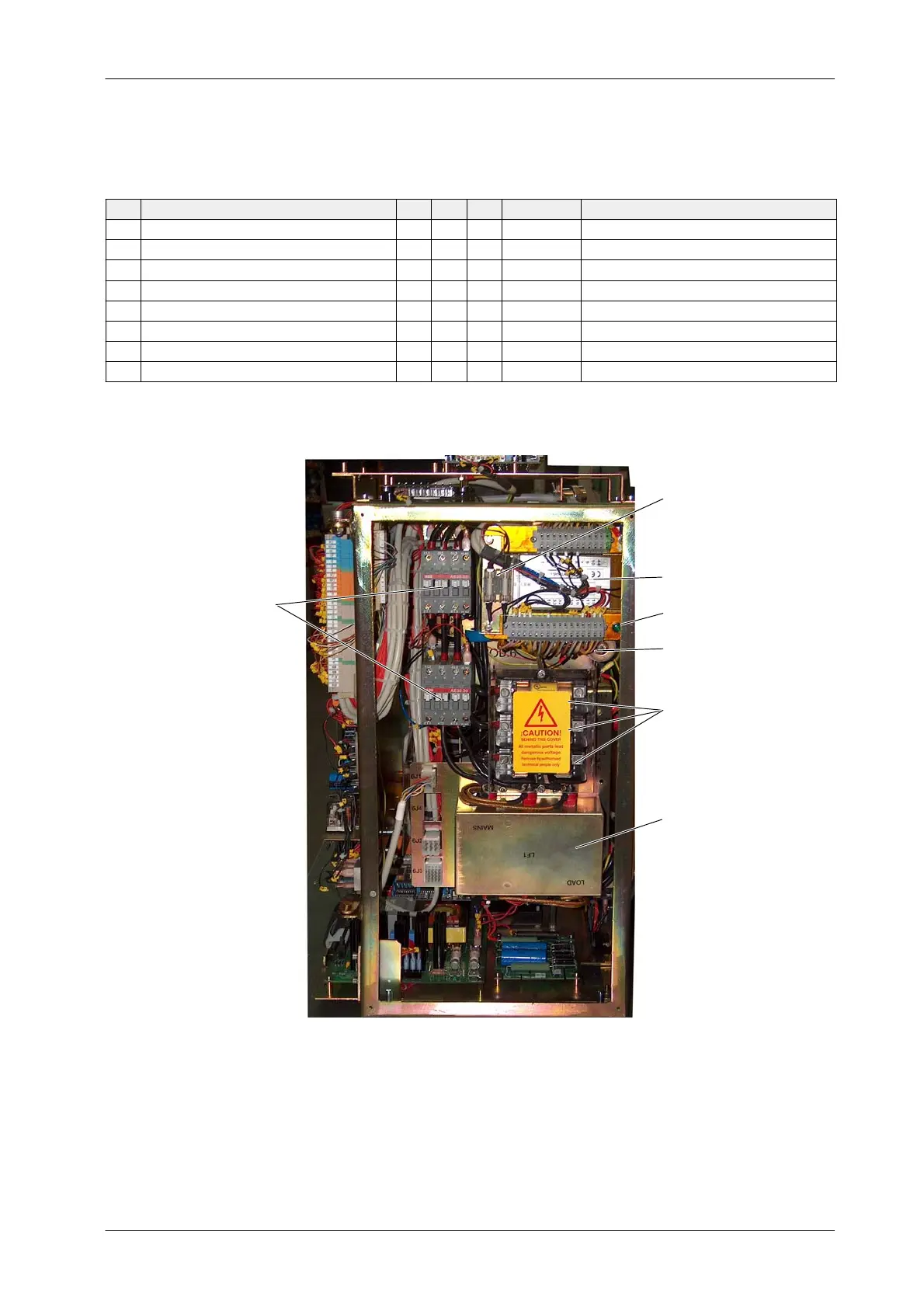

RIGHT SIDE PANEL (MOD. 6)
Item Designation Qty FRU Rep Mfg. Ref. Remarks
RIGHT SIDE PANEL (MOD. 6)
25 Contactor 3 Phase / 24V / 50 A 2 2 N 51405007 K5, K6
26 Resistor 20 Ohms / 100 W / 10% 1 1 N 52707021 R1
27 Transformer T2 1 2 N 50509029 T2
28 Green Light Lamp 220 VAC 1 2 N 54203006
29 Input Filter for 3 Phase 1 2 N A6371--01 LF1
30 Fuses F12, F13 (10 A, 250V) SB SeeFuseKit
31 Input Line Fuses F3 ,F4, F5 (50 A, 600V) SeeFuseKit
25
26
28
27
30
31
29
