g. Leave a working area around the Generator Cabinet until its final
installation.

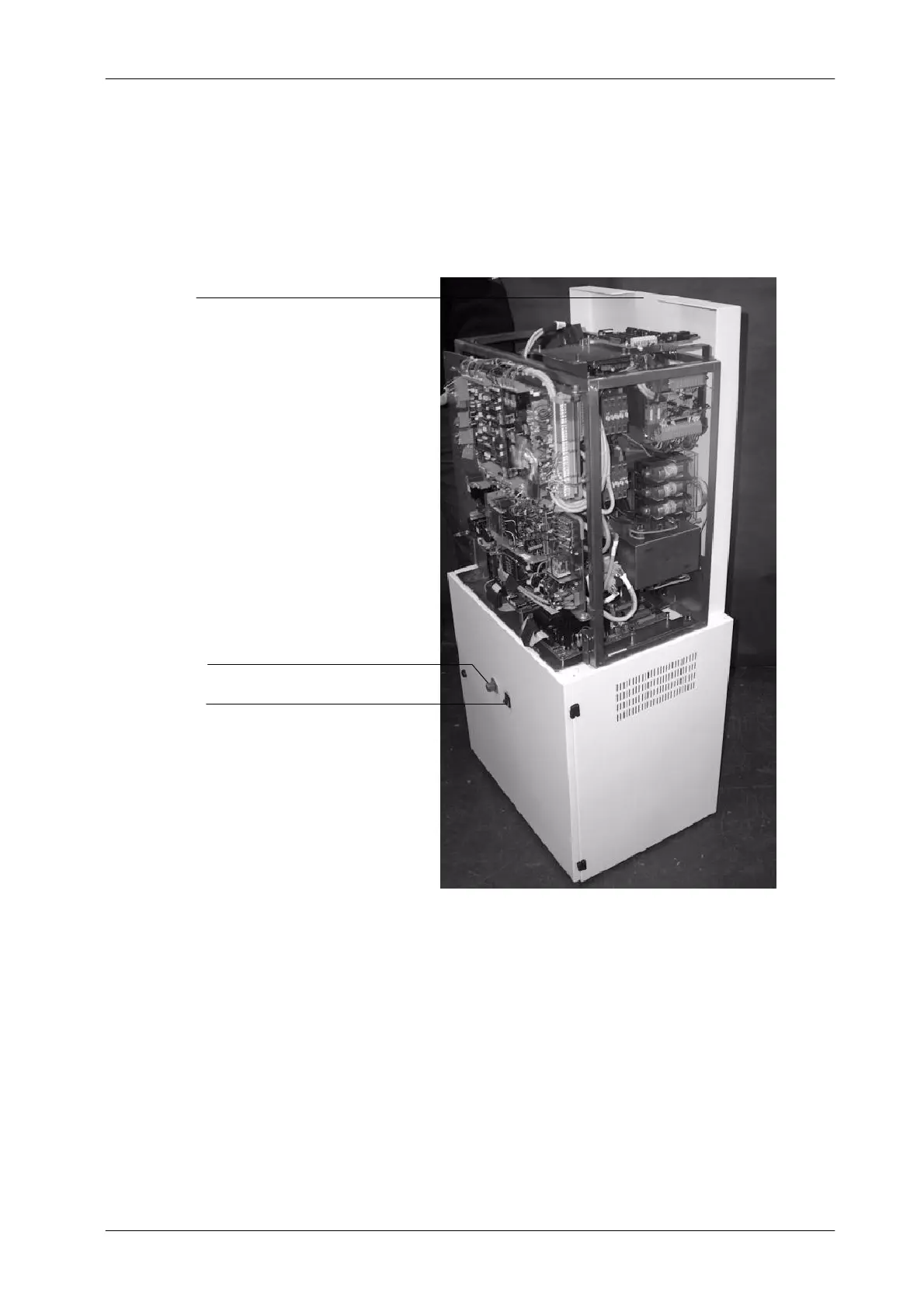

Cable Access to the Generator Cabinet
Emergency Switch-Off Button
ON / OFF Button
(HV Cables, Stator / Thermostat, AEC, ...)
16. Verify that the power supply line is “OFF” in the Room Electrical Cabinet.
Verify that the power line to the Generator is cut w hen the Emergency
Switch(es) is(are) activated.
17. Cut the cables to the appropriate length and remove insulation from both
ends of the power and ground wires. Connect them to the respective
terminals in the Room Electrical Cabinet.
18. Install the Control Console as indicated in Section 2.1.
