10‐4 Segway®PersonalTransporteri2,x2,x2TurfPartsReplacement
4. Ensurethatwiresarecorrectlyrouted
throughBSAcablerouter.FeedupCUand
BSAharnessesthroughholesincover.See
Figure10‐2.

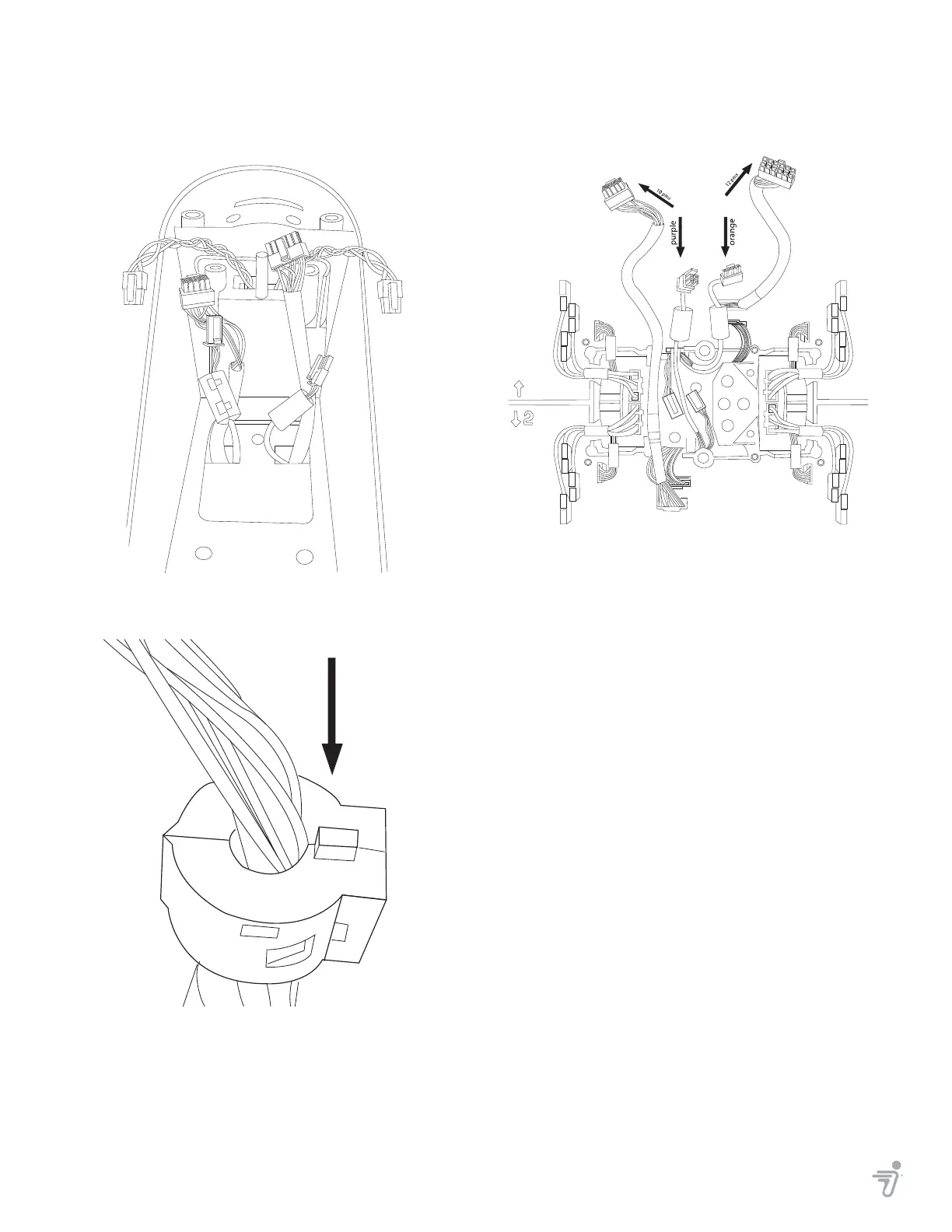

Figure10‐2:BSACableOrientation
5. Reinstallferritecores.SeeFigure10‐3..
Figure10‐3:FerriteCore
6. Viewingfromtherearofthechassis,the
cableconnectionsshouldbeasfollows:
• Leftsi
de:10‐pinconnectoranda
smallerconnectorwithpurplewires.
• Ri
ghtside:12‐pinconnectoranda
smallerconnectorwithorangewires.
SeeFigure10‐4.
Figure10‐4:CableConnections
7. Installcoverandthread(12)newBHCS,M6
x1.05x14,6‐lobescrews(20540‐00001)
throughchassiscoverintochassis.See
Figure10‐1.
8. UsingaT‐276‐lob
ewrench,driveeach
screwandtorqueto6.0N‐m.
9. Pe
rformpost‐servicetests(pageA‐1).
