6-24
Installation Conditions and Method
6
(2) Installation
Attach the IV-S30C1 camera on the mounting surface with the camera angle bracket (supplied with
the camera).
Installation procedure
1 Attach the camera angle bracket to the tapped M3 hole on the camera body (20 mm mounting
pitch: one of three holes). Two screws (M 3 x 6) are supplied with the camera for attaching the
angle.
2 Attach the camera controller angle to the mounting surface with the slotted holes 3.2 mm wide (20
mm mounting pitch) or 1/4-20 UNC threaded hole.
The external dimensions of the camera angle bracket and camera body are shown on the following
page.

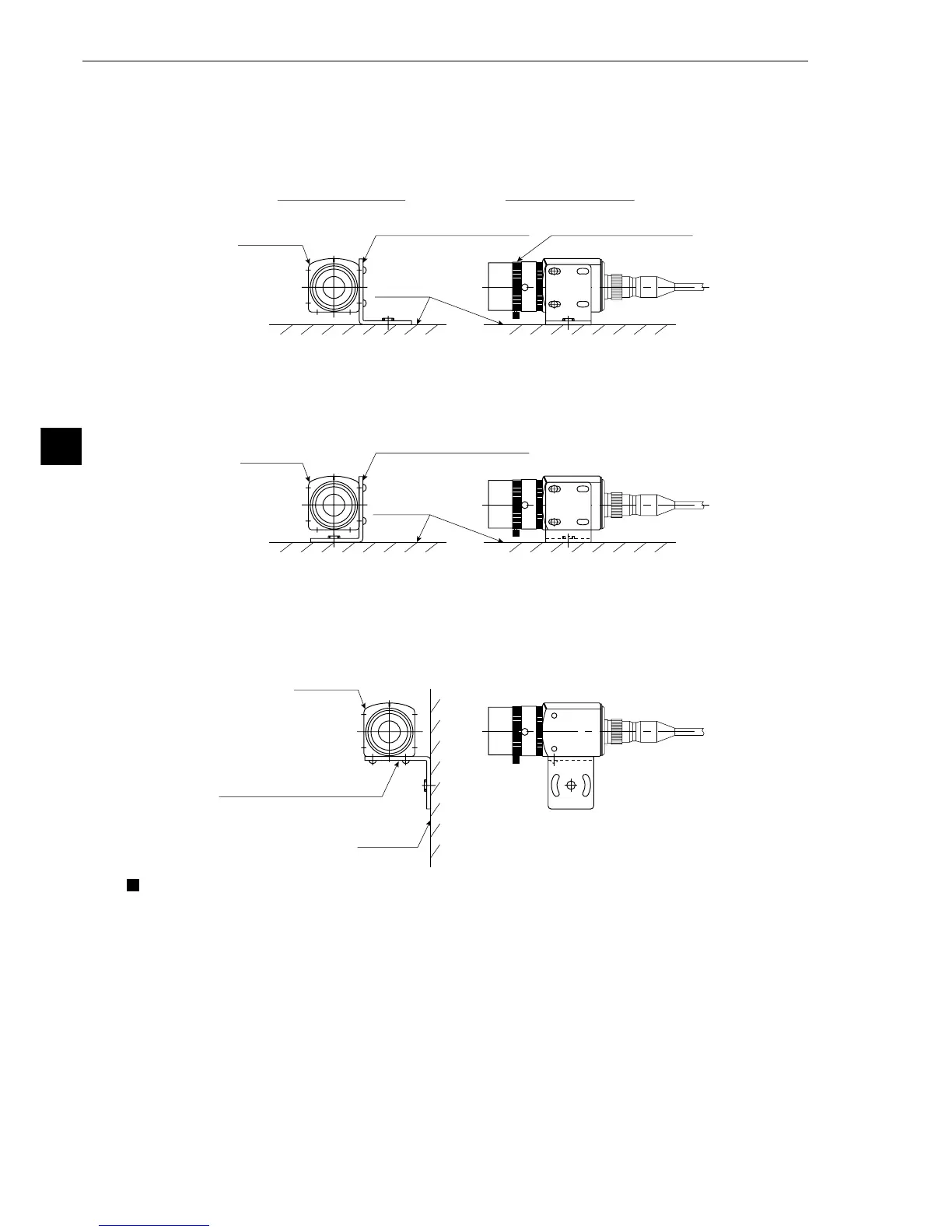

- Installation example 1
- Installation example 3
- Installation example 2
Mounting
surface
Mounting
surface
Mounting
surface
Camera angle bracket
Camera angle bracket
Camera angle bracket
IV-S30C1
IV-S30C1
IV-S30C1
Camera front view Camera side view
Camera lens
(IV-S20L16 or similar)
To Next Page
