Operation Examples (Lead inspection)
FC1H
1
[SYSTEM SETUP]
1OPS MENU SETTING
(TO NEXT SUB-MENU)
2OBJECT TYPE COND
(TO NEXT SUB-MENU)
3I/O CONDITIONS (TO NEXT SUB-MENU)
4ADJ. CAM POSITION
(TO NEXT SUB-MENU)
5DISPLAY MODE JAPANESE ENGLISH
6RECEIVING PARMS
EXEC
7INIT ALL PARMS EXEC
8SELF DIAGNOSTICS
EXEC
9SAVE IN FLASH MEM
EXEC
0OPERATIONS
Lead pitch
IC
Lead
Lead length
Line to be inspected
3-5 Lead inspection

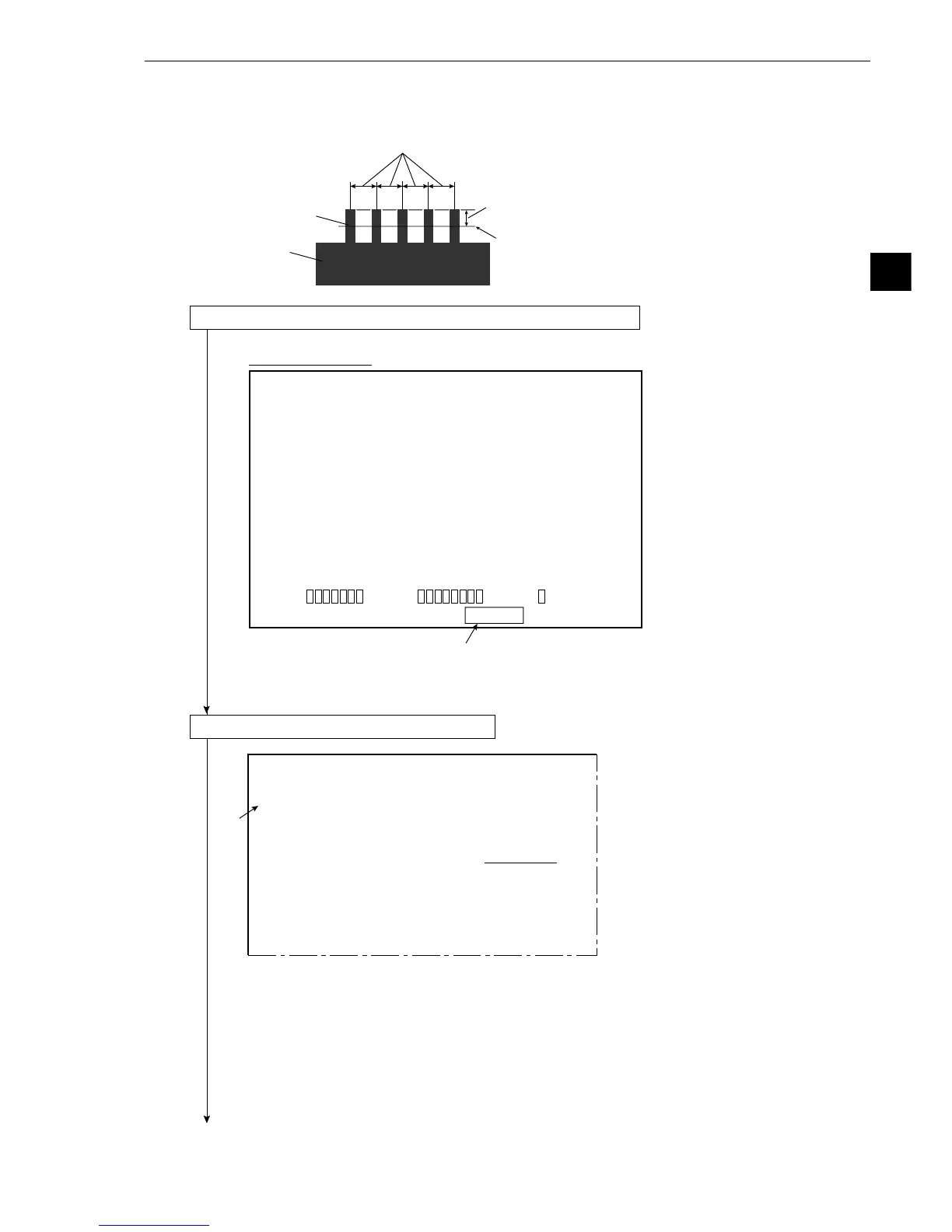

An example of the operations used to inspect IC lead pitches is given below.
(1) Operation on the MAIN OPS MENU (after initialize all conditions)
1. Move the cursor to [SET-SCRN] with the right and left keys, and press the SET key.
- The [SYSTEM SETUP] menu will be displayed.
(2) Operation on the [SYSTEM SETUP] menu
1. Move the cursor to 2 OBJECT TYPE COND (conditions of object type) with the up and down
keys, and press the SET key.
- The [OBJECT TYPE COND] menu will be displayed.
Continued on the following page
MAIN OPS MENU
1
F L
C1ALLC2NO
VX.X
(TYPE00)
MESR. ms
MESR0 CAM1 NO
MSR-CHNG REG-CHNG PC-MONTR SET-SCRN MANL-TYP-CHG
X0~6
:
Y0˜7
:
BUSY
:
To Next Page
