Setting The Criteria For Each Object Type
9-1
9
Chapter 9 : Setting the Conditions for Each Object Type
[OBJECT TYPE COND]
1OBJECT TYPE NO. 00(0~15)
2EDIT COPY(←OBJTYPE00) INITIALIZE
3TITLE REGISTRATION (TO NEXT SUB-MENU)
4MEAS.0, CAMERA1 NO (TO NEXT SUB-MENU)
5POS. ADJ.CAMERA1 NO ADJ. [ REG. 0-1PNTSXY］
6MEAS.0, CAMERA2 NO (TO NEXT SUB-MENU)
7POS. ADJ.CAMERA2 NO ADJ. [ REG. 0-1PNTSXY］
8SELECT CAMERA IMG NO CAM1 CAM1 CAM1&2
9COMPARE IMAGES NO SUB.I1−T1 DIFF.ABS｜I1−T1｜
0MEASUREMENT 1 NO (TO NEXT SUB-MENU)
qMEASUREMENT 2 NO (TO NEXT SUB-MENU)
wMEASUREMENT 3 NO (TO NEXT SUB-MENU)
eFINAL CALC RESULT (TO NEXT SUB-MENU)
rFINAL OUTPUT COND (TO NEXT SUB-MENU)
tSYSTEM-IN/OUT (TO NEXT SUB-MENU)
yHALT MEAS ON NG NO YES
uUPPE
R MENU
On the MAIN OPS MENU, move the cursor to SET-SCRN item, and press the SET key
- On the [SYSTEM SETUP] menu, move the cursor to item 2 OBJECT TYPE COND
and press the SET key.
· Unless item 8 is set to
“NO,” then item 9 will
also be displayed.
No
Yes
Correct the camera position?
To return to [SYSTEM SETUP]
menu
Save in flash memory
Enter the object type number (0 to 15)
Selecting the difference between
images calculation
Setting the measurement program
conditions
Set position correction value
Set final output condition
Setting the system input/output
conditions
1OBJECTTYPE NO.
Editing (copying and initialization)
2EDIT: See Editing in section 9-2 [7] and [8].
4MEAS.0, CAMERA 1
6MEAS.0, CAMERA 2
0MEASUREMENT 1
qMEASUREMENT 2
wMEASUREMENT 3
rFINAL OUTPUT COND See Chapter 10
Items set on the [OBJECT TYPE COND] menu.
· Determine whether or not correct image position which will be
mesured by measurement 1 to 3 based on the measure positional
deviation by the measurement 0.
5POS. ADJ. CAMERA 1
7POS. ADJ. CAMERA 2
Set final value numeric calculation
eFINAL CALC RESULT See section 9-2 [4].
tSYSTEM-IN/OUT See section 9-11 and Chapter 11
uUPPER MENU
See item (1) outline of setting
the measurement program
See section 9-2 [5]
Enabling/disabling a halt on an NG
measurement
yHALT MEAS ON NG
See item (2) Halting on an NG measurement
8 SELECT CAMERA IMG, 9 COMPARE IMAGES
See section 9-2 [6].
9-1 Outline
The measuring conditions for each object type are set on the [OBJECT TYPE COND ] (conditions for object
type) menu.

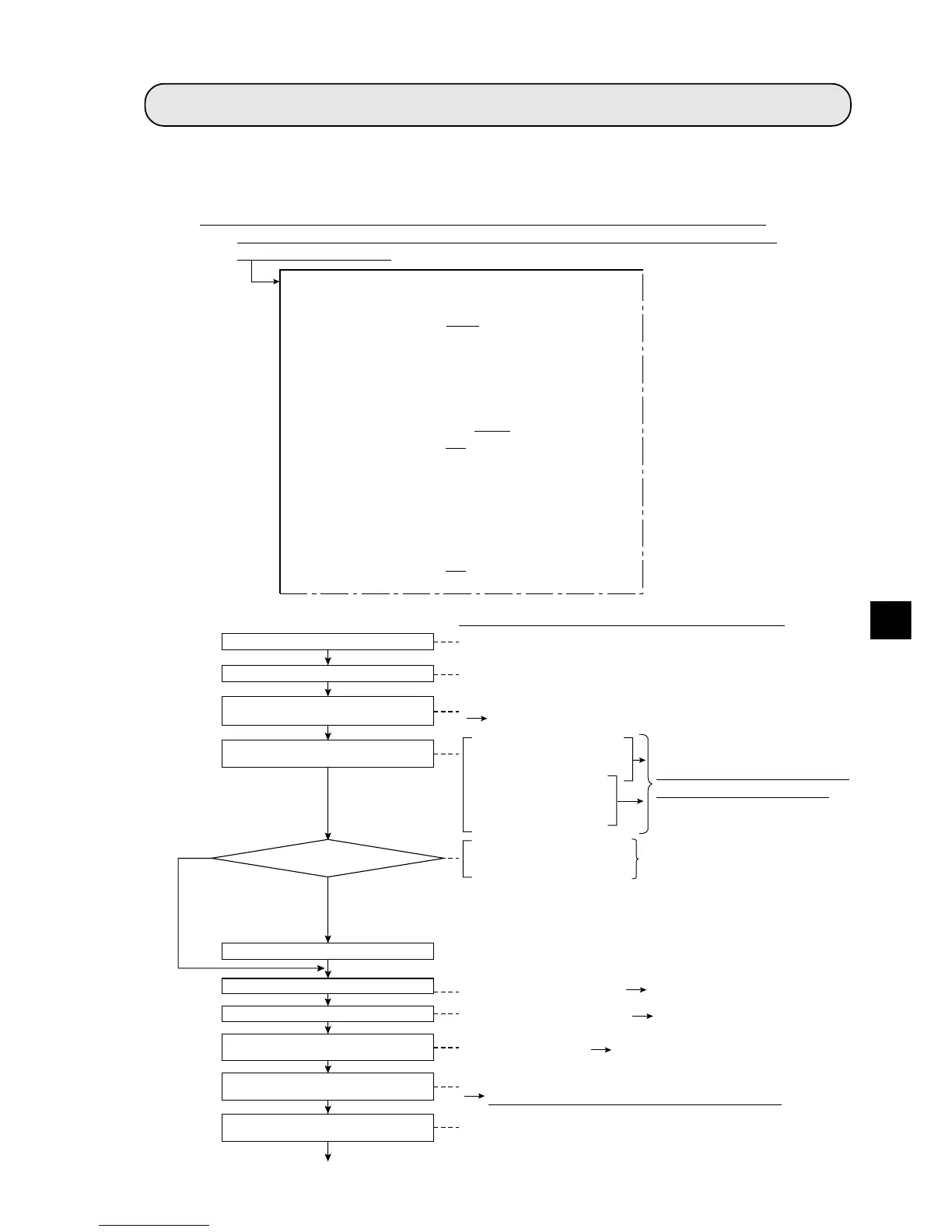

[Settings screen]
[Setting procedure]
