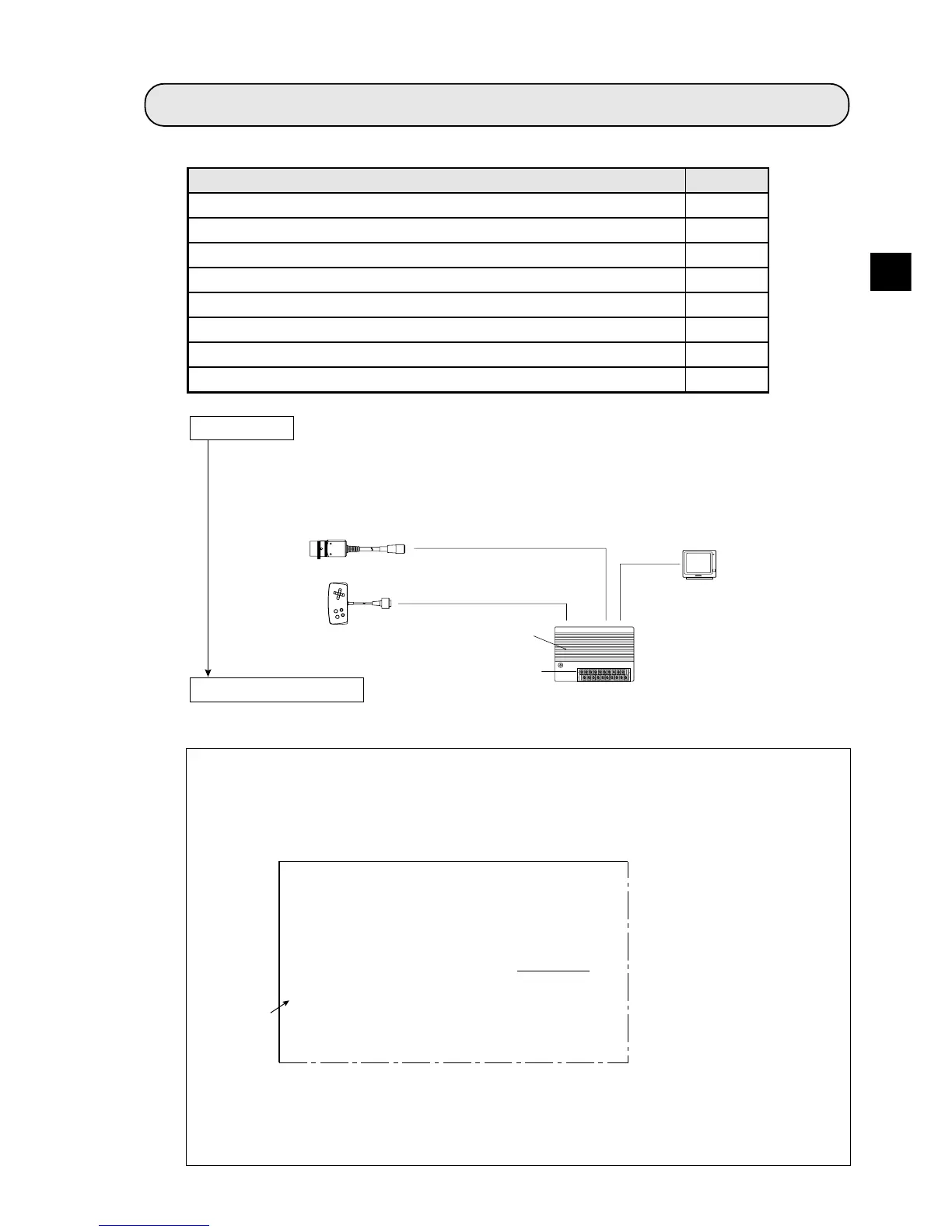

Operation Examples (Area measurement by binary conversion)
Chapter 3 : Operation Examples
IV-S20 main housing
Power supply (24 VDC)
Monitor
Camera 1
Remote setting key pad
3-1
3-2
3-3
3-4
3-5
3-6
3-7
3-8
Area measurement by binary conversion
Position measurement
Degree of match inspection for shape and size
Distance measurement
Lead inspection
Existence inspection by point measurement
Position correction (example of point measurement)
Use of numeric caluculations (example of shape and size inspection)
3·2 to 7
3·8 to 14
3·15 to 21
3·22 to 30
3·31 to 37
3·38 to 43
3·44
3·45 to 49
Item Page
2
[SYSTEM SETUP]
1OPS MENU SETTING
(TO NEXT SUB-MENU)
2OBJECT TYPE COND
(TO NEXT SUB-MENU)
3I/O CONDITIONS (TO NEXT SUB-MENU)
4ADJ. CAM POSITION
(TO NEXT SUB-MENU)
5DISPLAY MODE JAPANESE ENGLISH
6RECEIVING PARMS
EXEC
7INIT ALL PARMS EXEC
8SELF DIAGNOSTICS
EXEC
9SAVE IN FLASH MEM
EXEC
0OPERATIONS
This chapter explains how to operate each measurement program. Be sure you understand the general
operation procedures described in this chapter.
[Preparation for operation]
(1) Connection
Before turning ON the power, connect the IV-S20 main housing, the camera, monitor, remote key
pad and power supply (24 VDC). Connect the camera to the camera 1 connector (CAMERA 1) on
the main housing.
See Chapter 6 "Installation Conditions and Method" for connecting procedures.
(2) Turning ON the power
Turn ON the monitor and the 24 VDC power supply.
The monitor displays the MAIN OPS MENU. (It does not show any images.)
[Procedure for complete initialization]
In sections 3-1 to 3-6, the programs are discussed in their initial configuration.
Before starting any program, perform the following "total initialization" operation.
1. On the MAIN OPS MENU (see the following page), move the cursor to SET-SCRN item using
the left and right keys, and press the SET key.
-The [SYSTEM SETUP] menu will appear.
2. Move the cursor to 7 INIT ALL PARMS (total initialization) using the up and down keys, and
press the SET key.
- The INITIALIZE DATA? message will be displayed on the upper area of the screen.
3. Press the SET key. - The system will be initialized.
4. Press the ESC key. - The display will return to the MAIN OPS MENU without initialization.
