1-4
1
Overview

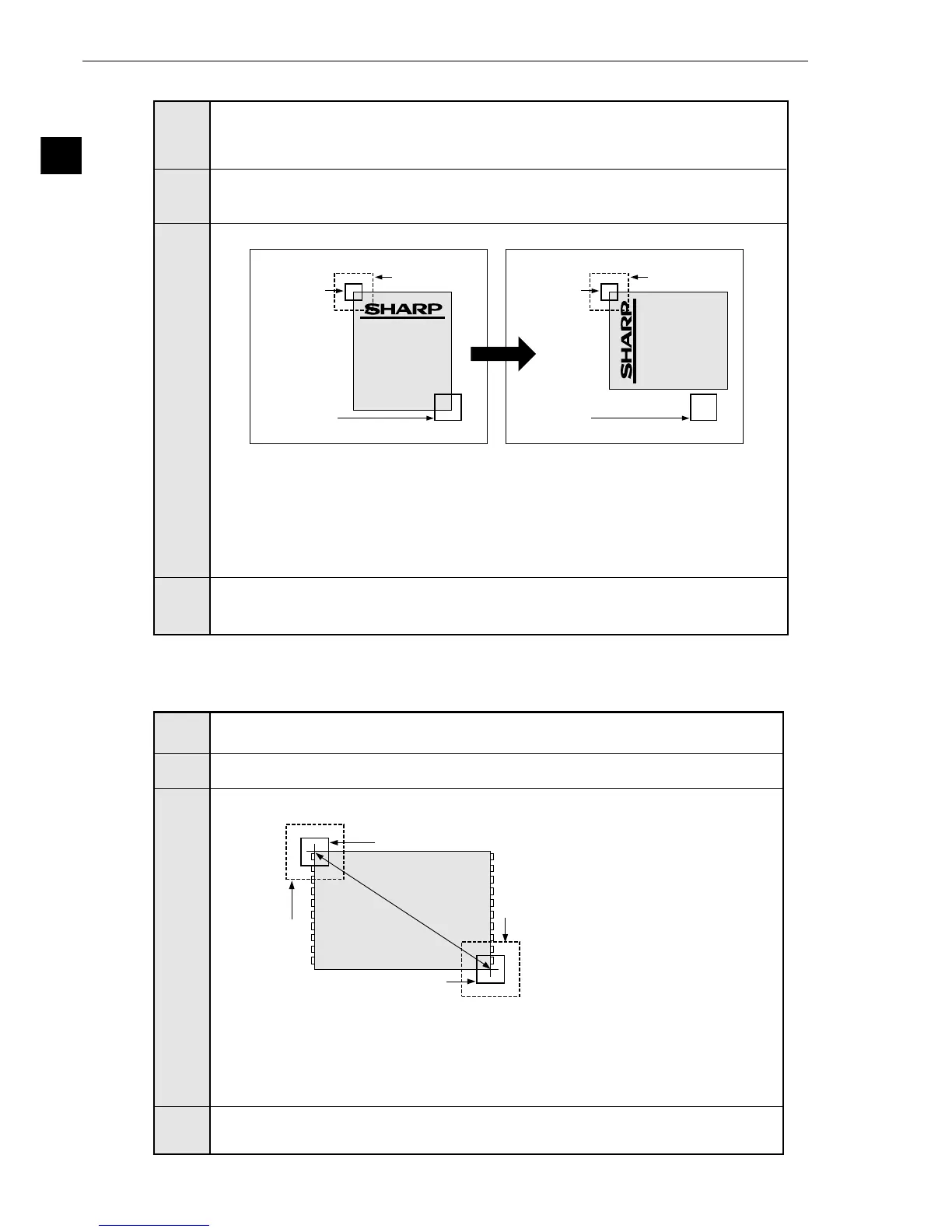

[2] Degree of match for shape and size
Search area
for positioning
Search area
for positioning
Criterion image
for positioning
Criterion image
for positioning
Criterion image
for measuring object
Criterion image
for measuring object
▲
Good label
SERIAL NO.
8F053G26
MODEL
IV
-
S20
SERIAL NO.
8F053G26
MODEL
IV
-
S20
▲
NG label
Compare a good criterion image to an objective image by inspecting matching levels
using the garay scale seach function. (Determine whether the port is acceptable or NG by
checking similarities between the criterion image and the workpiece image.)
A matching level comparison using binary images is also possible.
Pur-
pose
Exam-
ple
Appli-
cation
Detect positional deviation of labels , detect contamination of different parts, inspect the mounting
of electronic parts on PC boards, detect mis-print, inspect for missing electric parts such as
terminals, and simple letter inspection.
[Detecting label deviations on packages]
・Inspection procedure
1Conduct a gray scale search of the criterion image position
2Correct the position of the object being measured from the coordinates for the
criterion image obtained in item 1 above.
3If the matching level of the object image is low, the IV-S20 can determine that the
label position is NG.
Detailed
instruc-
tion
・Operating instruction example _ See “3-3 Degree of match inspection for shape and size”
・Setting measurement program _ See “9-4 Degree of match inspection for shape and size”
[3] Distance and angle measurement
Search area
(criterion image a)
Search area
(criterion image b)
Criterion image b
Criterion image a
Exam-
ple
Appli-
cation
Measurement of mounted electronic parts
Pur-
pose
Measure the distance and angle of two point using the center detection function in a gray
scale search and the edge detection function, as well as center of gravity detection by
[Measuring IC packages]
・Measurement procedure
1Find the center points of criterion images a and b using a two point gray scale search.
2Determine the distance between the two center points.
Register criterion image a and b by matching edges of the IC package.
Detailed
instruc-
tion
・Operating instruction example _ See “3-4 Distance measurement”
・Setting measurement program _ See “9-5 Distance and angle measurement”
