Sharp IV-S20 User Manual

9-3
Shared settings
9
Line type
Solid lines
Dotted lines
Image processing used
Reference image gray
scale search, binary
image matching
Window containing a
binary image
Gray scale search area
detection
Edge of an area
detection
Binary image window
mask
Measurement programs
Positional deviation measurement (gray scale search), degree
of match inspection for shape and size, distance and angle
measurement (gray scale search/locating the center of
gravity), lead inspection
Area measurement by binary conversion, counting quantities
by binary conversion, identifying objects by binary conversion
Positional deviation measurement (gray scale search), degree
of match inspection for shape and size, distance and angle
measurement (gray scale search), lead inspection (criteria
search).
Positional deviation measurement (edge), distance and angle
measurement (edge).
Distance and angle measurement (center of gravity), Area
measurement by binary conversion, counting quantities by
binary conversion, identifying objects by binary conversion

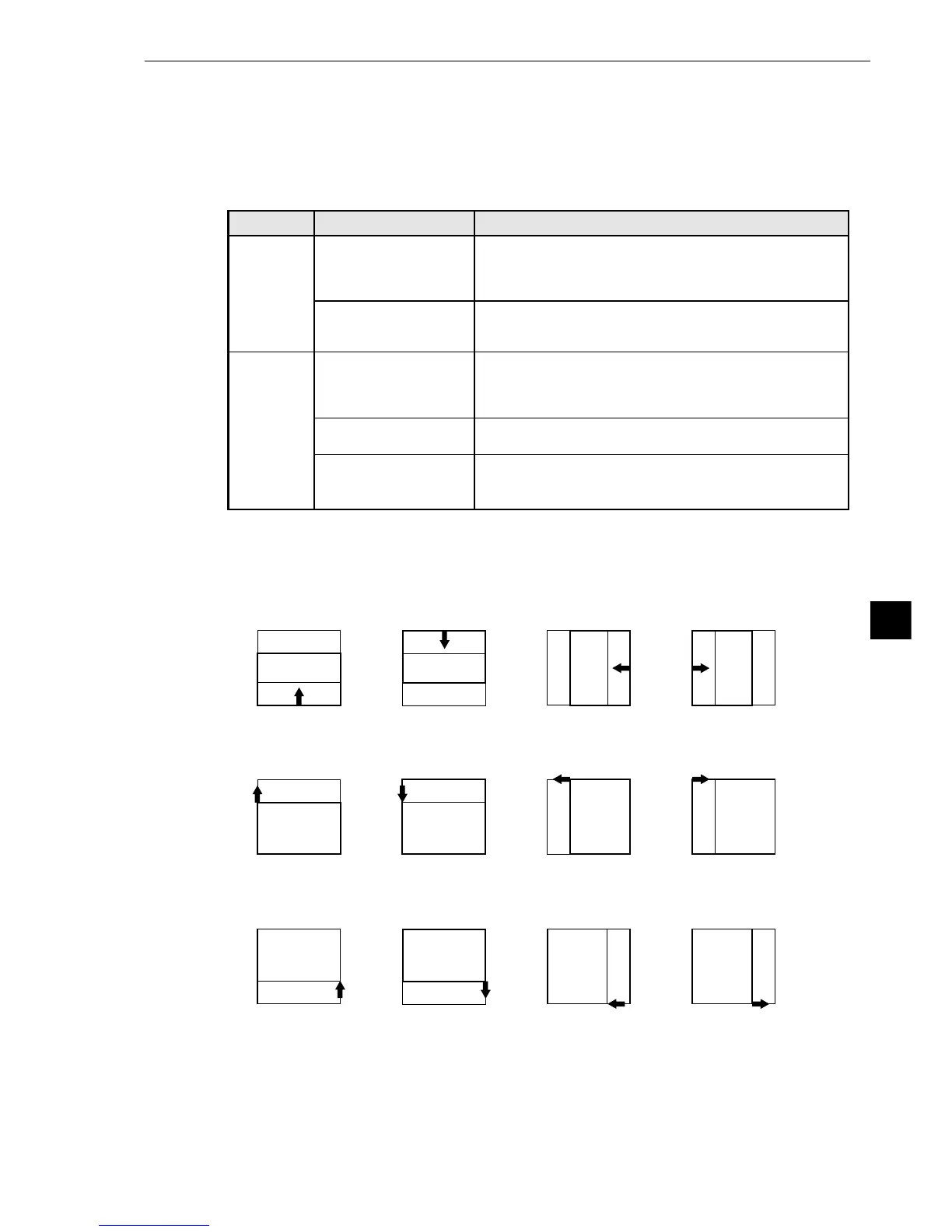

· Up key
3. Specifying the lower right corner
2. Specifying the upper left corner
1. Moving the mask
· Down key · Left key · Right key
· Up key · Down key · Left key · Right key
· Up key · Down key · Left key · Right key
9-2 Shared settings
[1] Window shape selection and settings
This section describes how to select and set the window shapes used for image processing (e.g.
rectangular windows, horizontal or vertical line boundaries, round windows, and elliptical windows).
This can be done using the up, down, left, and right setting keys on the remote key pad.
(1) A rectangular window
[How to set a rectangular window]
The following items on the settings menu can be used to define the mask: move, upper left,
lower right. Shown here is an example of how to define a solid-line rectangular window.
