Sharp IV-S20 User Manual

4-5
System Configuration
4

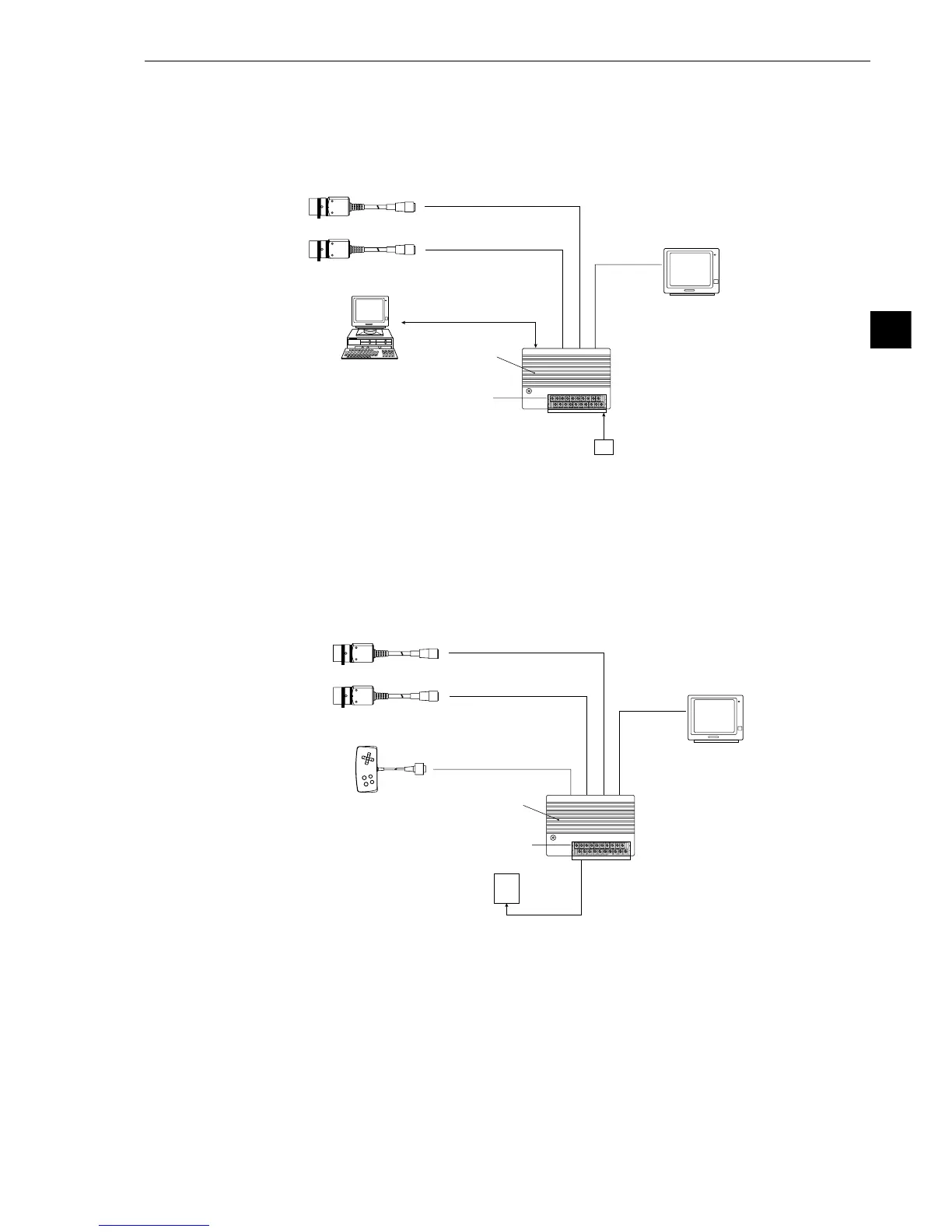

(3) When a personal computer is connected
- Purpose/application
Measurement is started by an external trigger (a photo sensor or proximity sensor etc.), and the
measurement data is output to a personal computer. The object type number is selected by the
personal computer.
[2] System configuration example for measurement triggered by the internal CCD sensor trigger
The internal CCD trigger can be used with camera 1, but with camera 2.
(1) When IV-S20 is used in a stand-alone mode
- Purpose/application
Measurement is started by a CCD trigger, and the measurement result is output externally
(warning lamp etc.). In this case, sampling operation is automatically started.
Personal computer
Type selection, data
IV-S20 main
housing
Power supply
(24 VDC)
Monitor
Camera 1 (image)
Camera 2 (image)
External trigger
(a photo sensor or proximity
sensor etc.)
Remote key pad
Camera 1 (image + CCD trigger)
Camera 2 (image)
IV-S20 main
housing
Power supply (24 VDC)
Monitor
External
output
Warning lamp etc.
