Sharp IV-S20 User Manual

4-6
System Configuration
4

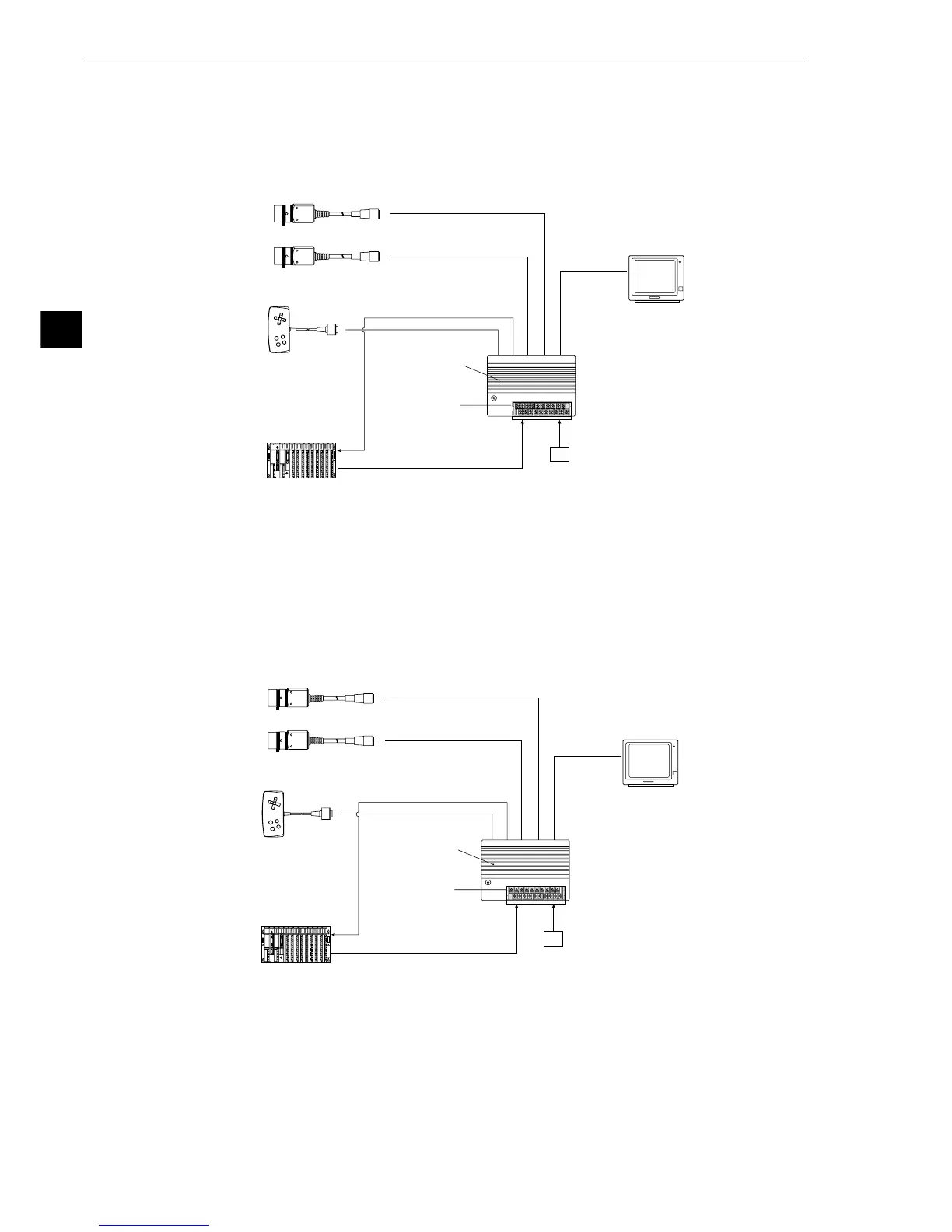

(3) When a personal computer is connected
- Purpose/application
Measurement is started by a CCD trigger (sampling start input: personal computer), and the
measurement data is output to a personal computer. The object type number is selected by the
personal computer.
Start sampling input
(a photo sensor or proximity
sensor etc.)
Data (computer link)
Type switching (parallel I/F)
Programmable
controller
Remote key pad
Camera 1 (image + CCD trigger)
Camera 2 (image)
IV-S20 main
housing
Power supply
(24 VDC)
Monitor
(2) When a programmable controller is connected
- Purpose/application
Measurement is started by a CCD trigger (sampling start input: a photo sensor etc.), and the
measurement data is output to a programmable controller. The object type number is selected
by the programmable controller.
Start sampling input
(a photo sensor or proximity
sensor etc.)
Data (computer link)
Type switching (parallel I/F)
Programmable
controller
Remote key pad
Camera 1 (image + CCD trigger)
Camera 2 (image)
IV-S20 main
housing
Power supply
(24 VDC)
Monitor
