3-38
3

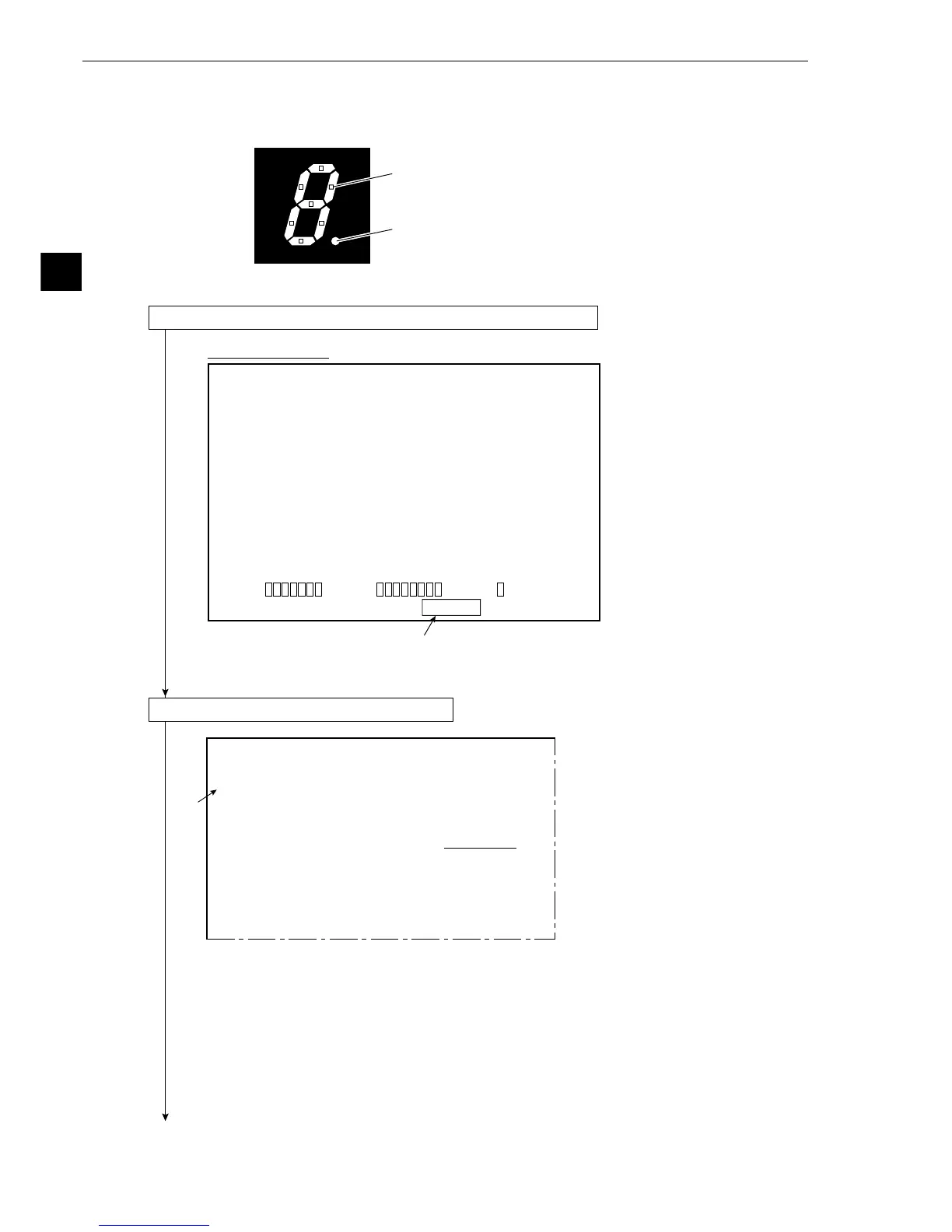

Operation Examples (Point measurement)
FC1H
1
[SYSTEM SETUP]
1OPS MENU SETTING
(TO NEXT SUB-MENU)
2OBJECT TYPE COND
(TO NEXT SUB-MENU)
3I/O CONDITIONS (TO NEXT SUB-MENU)
4ADJ. CAM POSITION
(TO NEXT SUB-MENU)
5DISPLAY MODE JAPANESE ENGLISH
6RECEIVING PARMS
EXEC
7INIT ALL PARMS EXEC
8SELF DIAGNOSTICS
EXEC
9SAVE IN FLASH MEM
EXEC
0OPERATIONS
(7-segment display)
Point setting
Decimal point
3-6 Existence inspection by point measurement
Shown below is an example of an operation for checking the existence of an object by detecting whether
the points are white or not.
(1) Operation on the MAIN OPS MENU (after initialize all conditions)
1. Move the cursor to [SET-SCRN] with the left and right keys, and press the SET key.
- The [SYSTEM SETUP] menu will be displayed.
(2) Operation on the [SYSTEM SETUP] menu
1. Move the cursor to 2 OBJECT TYPE COND (condition of object type) with the up and down
keys, and press the SET key.
- The [OBJECT TYPE COND] menu will be displayed.
Continued on the following page
MAIN OPS MENU
1
F L C1ALLC2NO
VX.X
(TYPE00)
MEAS. ms
MEAS0 CAM1 NO
X0~6
:
Y0~7
:
BUSY
:
MSR-CHNG REG-CHNG PC-MONTR SET-SCRN MANL-TYP-CHG
To Next Page
