6-2 Connection, installation, and wiring of IV-S20 main housing
[1] Connection
Connect the cameras (up to 2 cameras), remote key pad, and monitor to the IV-S20 main housing.

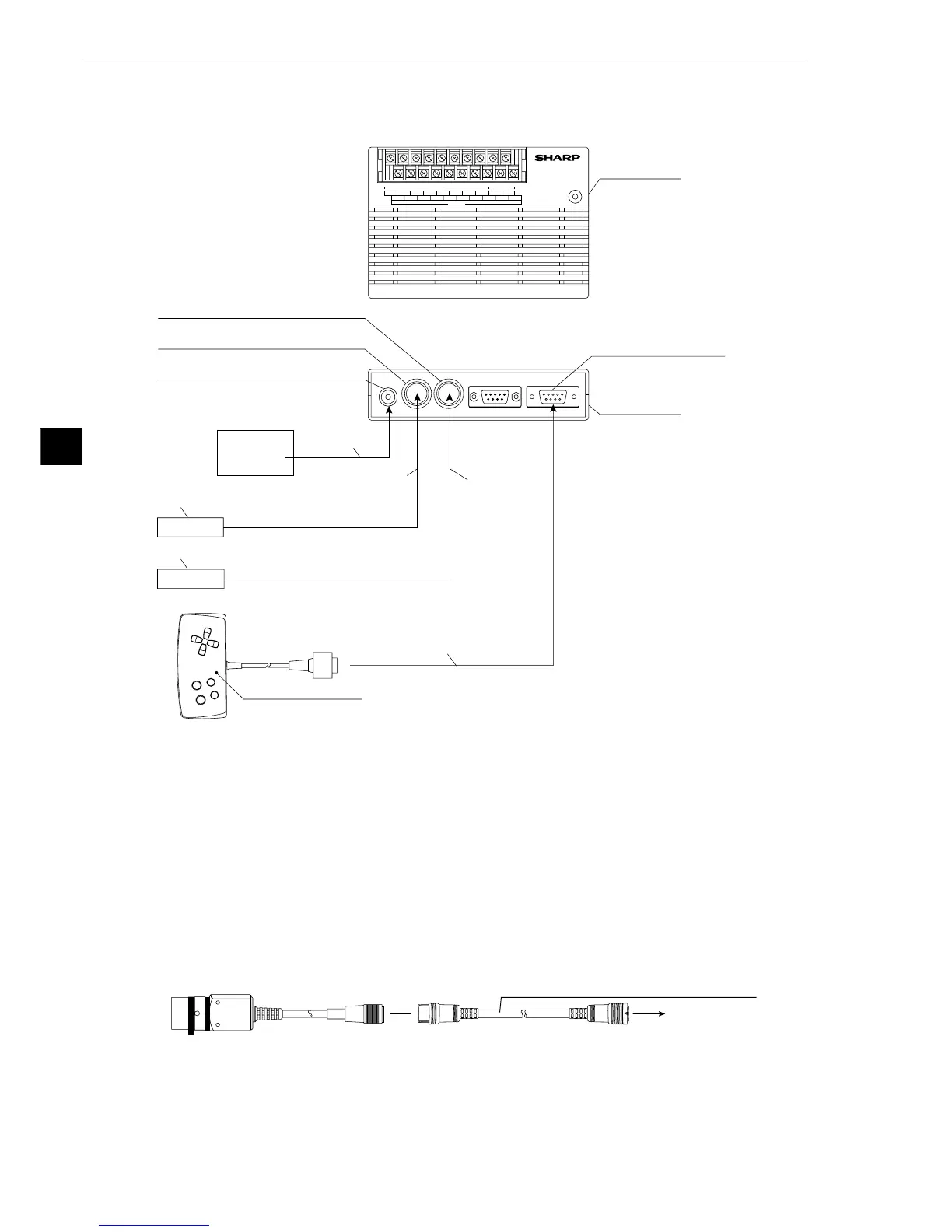

1 Connect the camera cable connectors to the camera 1 (CAMERA1) and camera 2 (CAMERA2)
connectors on the IV-S20 main housing. => See page 6-19, 6-23, and 6-27.
Note: Only connect or disconnect the camera connectors while the power is OFF.
- Push the convex side of the connector into the concave side of the mating connector. When the
connector is all the way on, it clicks.
- To disconnect the connector, hold the plug of the connector, and pull it straight out.
- A camera connected to the camera 1 connector (CAMERA1) is treated as camera 1 by this
system, and a camera connected to the camera 2 connector (CAMERA2) is treated as camera
2.
Note: You must have a camera connected to the camera 1 connector.
- The camera cable length is 3m. If you need a longer cable, order extension camera cable IV-
S20EC2 (cable length 2m) or IV-S20EC4 (cable length 4m).
Extension camera cable IV-S20EC2/4
Camera connector of
IV-S20 main housing
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 BUSY C(−)
X0 X1 X2 X3 X4 X5 X6 C(＋) ＋24V 0V
3
IV-S20
VIDEO CAMERA1 CAMERA2 RS232C/RS422 REMOTE
POWER
OUTPUT
INPUT POWER
▼ ▼
4
2
4
Camera 1
Camera 2
Monitor connector (VIDEO)
Monitor
Remote key pad
Camera 2 connector (CAMERA2)
Camera 1 connector (CAMERA1)
Remote key pad
connector (REMOTE)
1
IV-S20 main
housing
(side view)
IV-S20 main
housing
(plan view)
1
