Sharp IV-S20 User Manual

5-5
Part Names and Functions
5

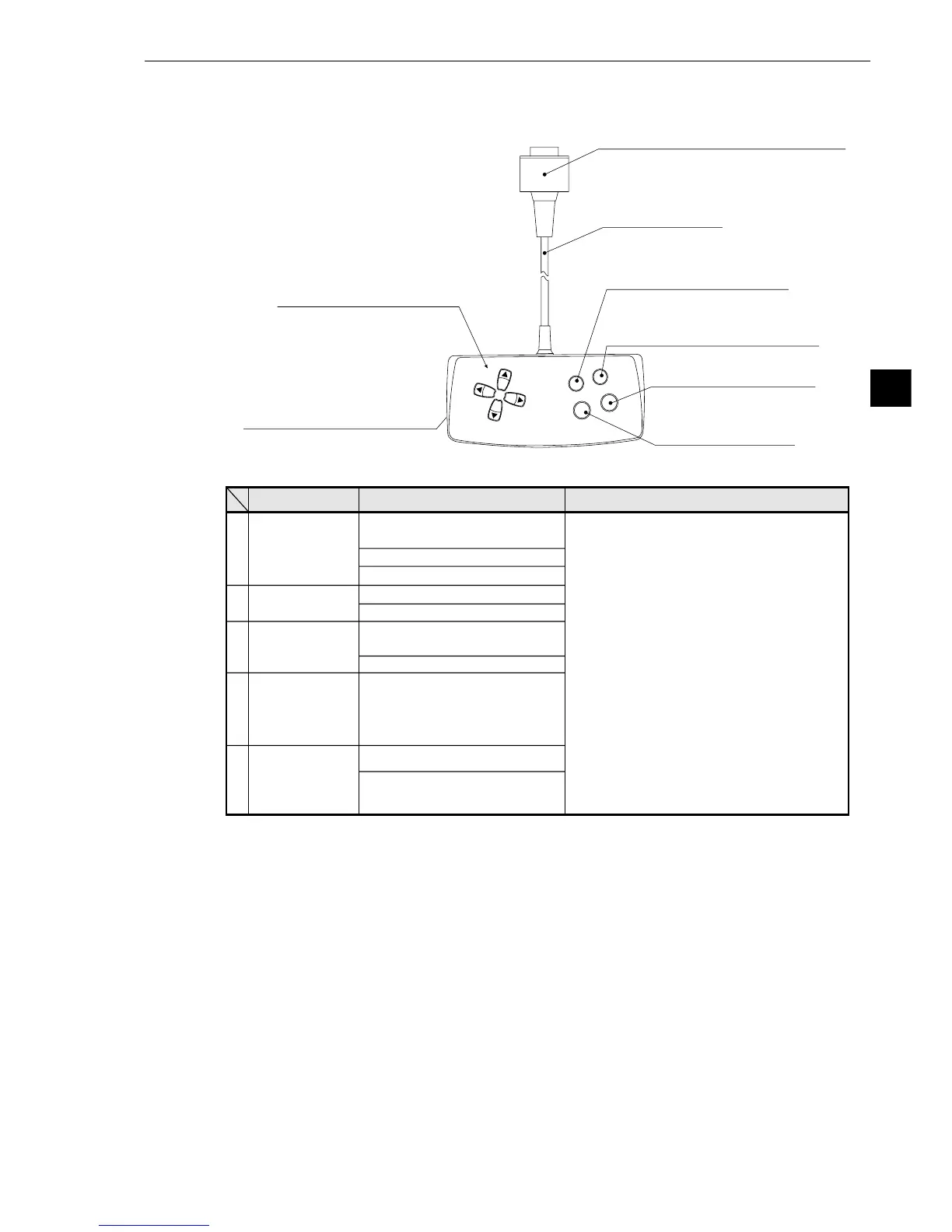

5-3 Remote key pad
4 Image change key (SEL)
1Direction keys
(up, down, left and right)
5 Measurement start/brightness
select key (TRG/BRT)
2Set (select) key (SET)
3Cancel key (ESC)
Dimensions (mm)
130 (W) ×61 (D) ×22.5 (H)
Cable length 3 m
Connector
(connected to the IV-S20 main housing)
Selecting an item on a menu
screen
Setting a window
Setting a value
Determine a highlighted item
Determine the setting value
Switching the image mode
between the through mode
and the freeze mode
(see page 7-8)
Start measurement input
Switching the brightness
level (H and L)
ContentsFunctionKey name
Direction keys
(up, down,
left and right)
Set (select) key
(SET)
Cancel key
(ESC)
Image change
key (SEL)
Measurement
start/brightness
select key
(TRG/BRT)
1
2
3
4
5
See section 7-9
Returning a setting to its origi-
nal state before being changed
Returning to the previous menu
