5-4

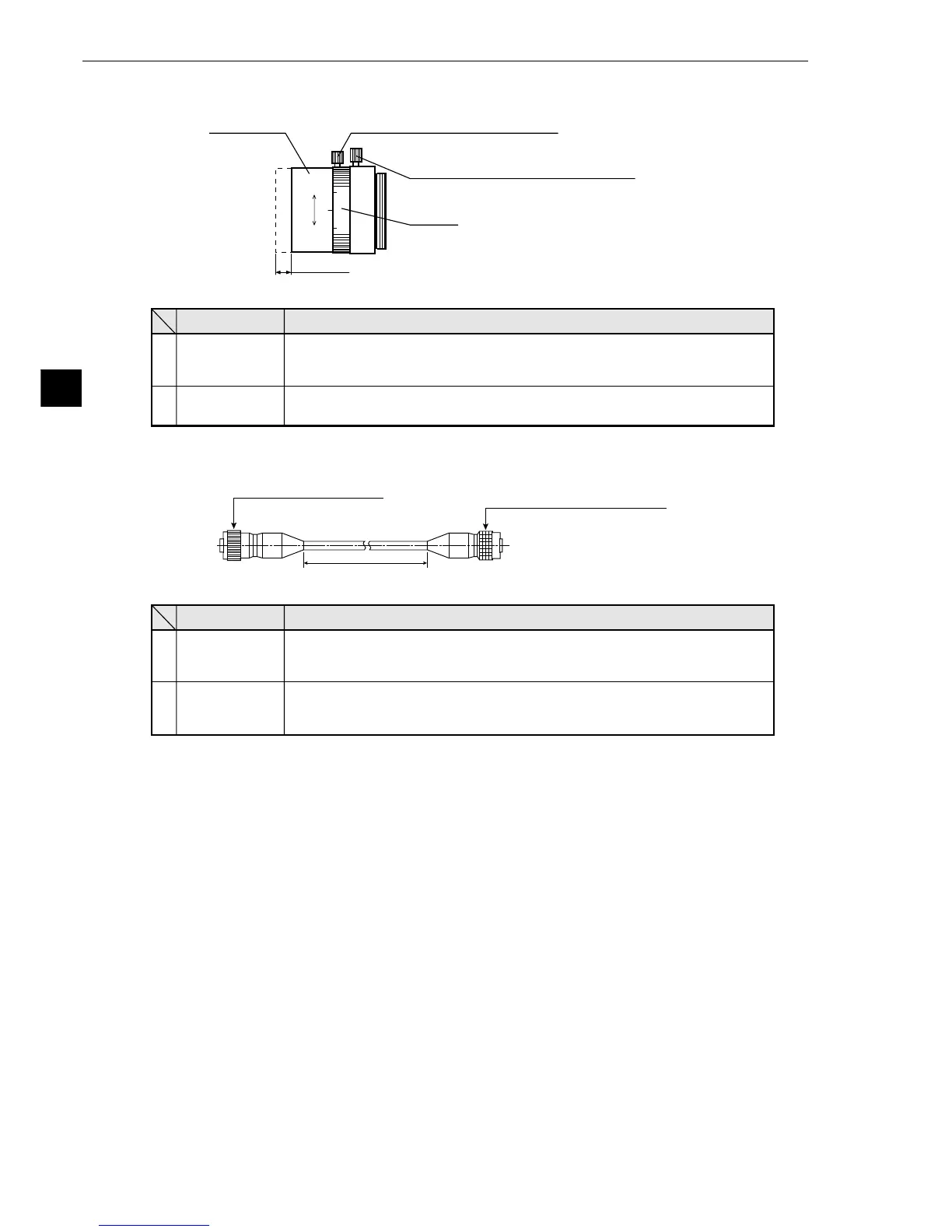

Part Names and Functions
5
[2] Camera lens : IV-S20L16
1.6 C
TVLENS1:1.616mm
focus
∞
0.05m
5.5 mm
(Movable range for focus adjustment)
2 Iris
1Focus
Lock knob 2 (for fixing the focus)
Lock knob 1 (for fixing the iris)
Focus
FunctionName
To focus an image.
- The focal length (distance from an object) is 50 mm to infinity (from the
front of lens).
1
Iris
2
To adjust the image brightness.
- The iris aperture can be set from 1.6 to closed.
[3] Camera conversion cable: IV-S20HC3
1 Camera connector
(Threaded type)
2 Controller connector
(Quick-connect type)
Cable length: 3 m
Camera
connector
FunctionName
Connect to a connector of camera cable (IV-S30C1/C2/C3/C4).
1
Controller
connector
2
Connect to camera 1 connector or camera 2 connector of the IV-S20
main body.
