Operation Examples (Numeric calculation)
2
3
4
6
7
2
1
[NUMERIC CALC] (TYPE00-MEAS.1-DEG OF MATCH)
1CALC. RESULT N00(0~15)
2OBJECT TYPE NO MATCH [M] CORD[X Y] LEVL[G]
NUM-CALC[NC] CNST[C]
3FORMULA
4UPPER&LOWER LIMIT
+
00000000.0~ +00000000.0
5OUTPUT NO Y0(0~7) C000(0~107)
6RUN A TEST(SET KEY)
7UPPER MENU
N00
N01
N02
N03
Object to be measured
Detection point of image 1 Detection point of image 2
Image 2Image 1
Difference between
X coordinates
Difference between Y coordinates

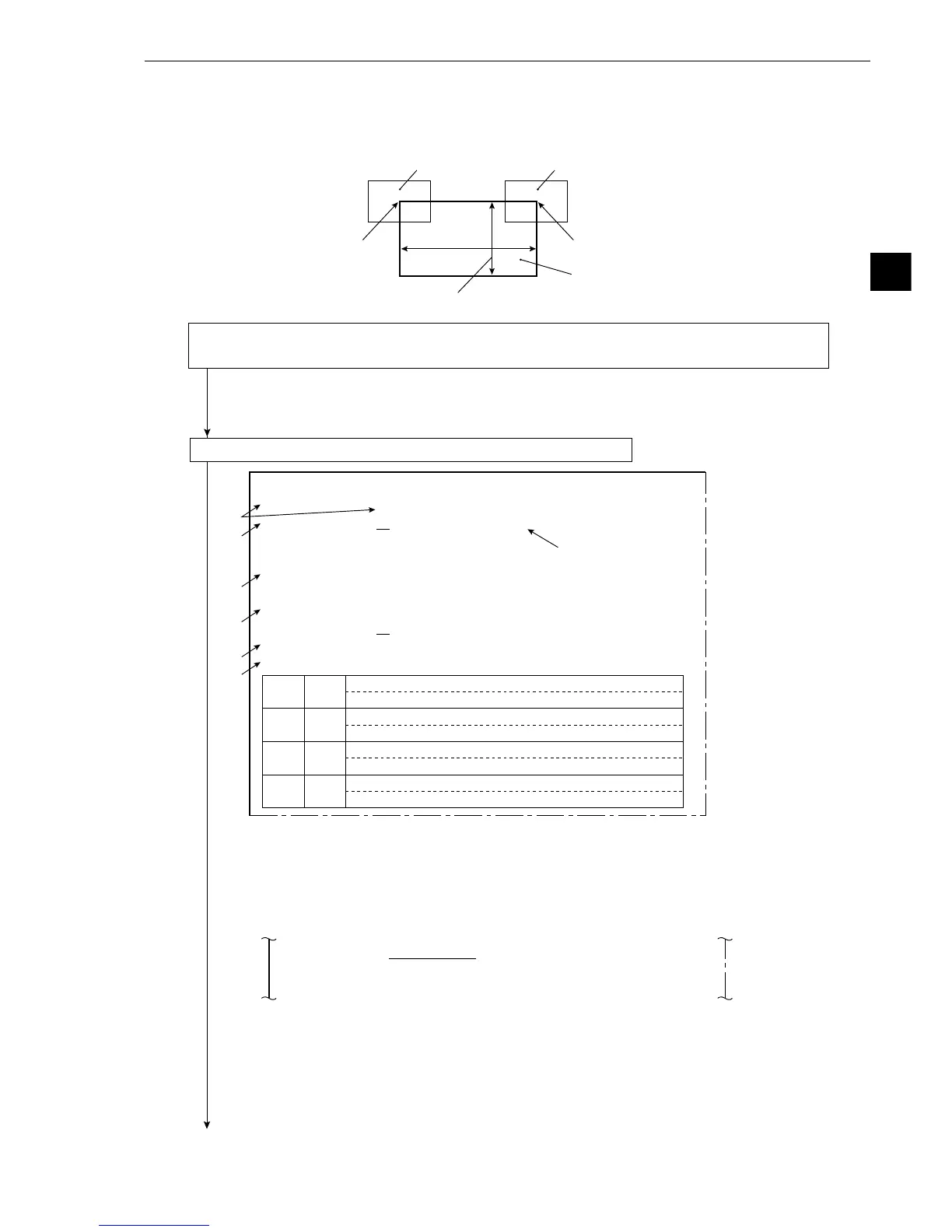

3-8 Use of numeric calculations (example of shape and size inspection)
Shown below is an example of the operation for evaluating and outputting the differences in the X-Y
coordinates between the points in images 1 and 2, based on the result of numeric calculations. This
example uses the example from section 3-3 "Degree of match inspection for shape and size."
(1) Create the images following the instructions of items (1) to (8), in 3-3 “Degree of match inspec-
tion for shape and size”
- After creating the images, move the cursor to 3 NUMERIC CALC COND on the matching
level inspection menu, and press the SET key.
- The [NUMERIC CALC] (numeric calculation) menu will be displayed.
(2) Operation on the [NUMERIC CALC] (numeric calculation) menu
1. Move the cursor to 1 CALC. RESULT (calculation result) with the up and down keys, and
press the SET key. Enter "N00" with the up and down keys, and press the SET key.
2. Move the cursor to 2 OBJECT TYPE with the up and down keys, and press the SET key.
Move the cursor to CORD [X] (coordinate [X]) with the left and right keys, and press the SET
key.
- The details of item3 FORMULA will be displayed.
Continued on the following page
3FORMULA : REG.00(0~15) MDL0(0~1) N00(0~15)
+ - `/ ←→ DEL. END
To Next Page
