8-4
Run Menu Conditions and Settings
8
[3] Message display
Select "YES" or "NO" to display messages on the MAIN OPS MENU.
Setting to "NO" reduces the processing time.
YES (RESULT.OK) > YES (RESULT.NO) < NO
[Operation procedure]
1. On the [RUN MENU SETTINGS] menu, move the cursor to item 4 MESSAGE DISPLAY with the
up and down keys, and press the SET key.
2. Move the cursor to YES (RESULT.OK), YES (RESULT.NO) or NO with the left and right keys, and
press the SET key.

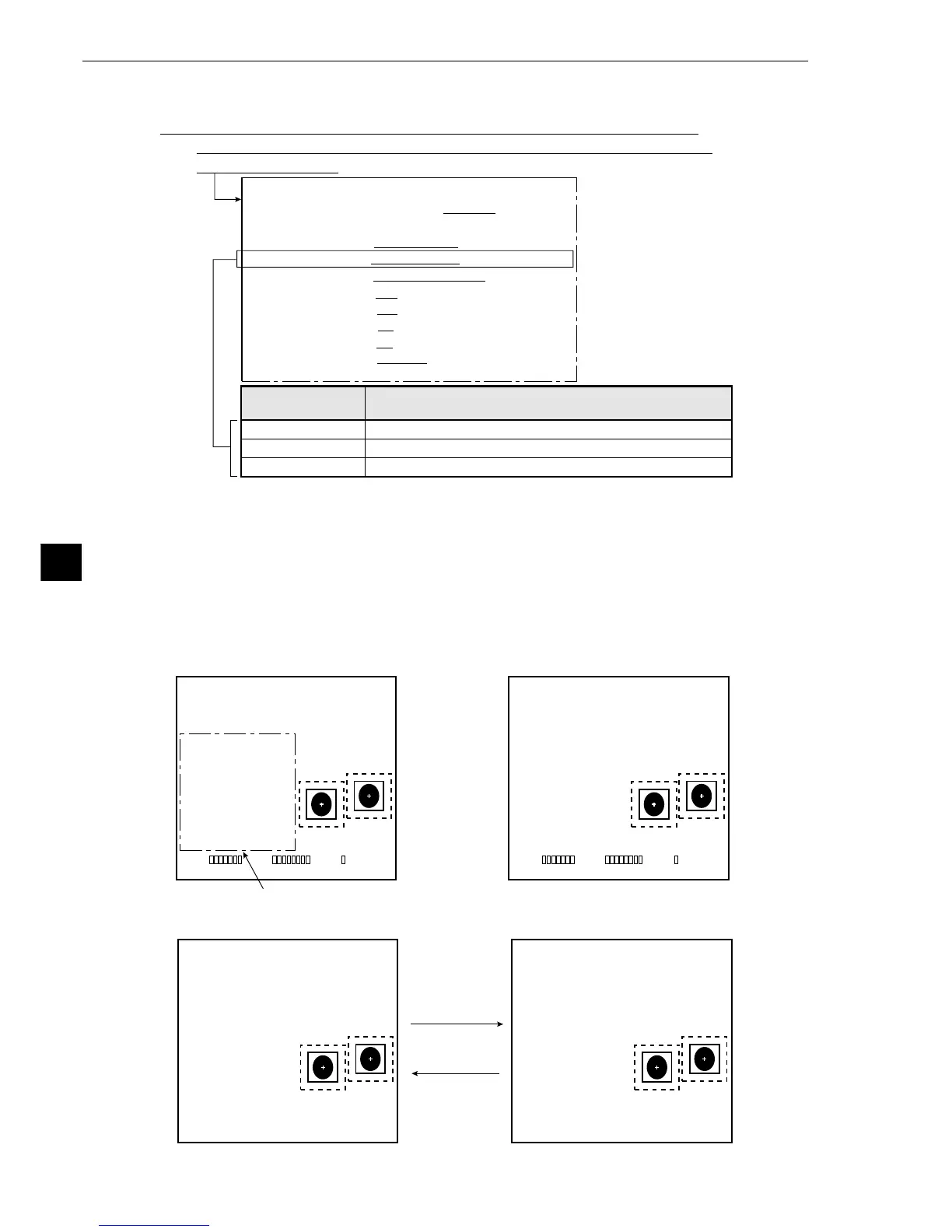

[Display examples]
On the MAIN OPS MENU, move the cursor to SET-SCRN item, and press the SET key.
-On the [SYSTEM SETUP] menu, move the cursor to item
1
OPS MENU SETTING
and press the SET key.
[RUN MENU SETTINGS]
YES (RESULT.OK)
NO
All data will be displayed.
Data other than the numerical result will not be displayed.
No messages will be displayed.
4
MESSAGE
DISPLAY
Description
1MONITOR OUTPUT CAM1 CAM2 CAM1&2
2CAMERA1&2
CAM1=MD CAM2=MD
3CAPTURE AN IMAGE PARTIAL-IMAGE WHOLE-IMAGE NO
4MESSAGE DISPLAY
YES(RESULT.OK) YES(RESULT.NO) NO
5PATTERN DISPLAY MEAS-RESULT- OUT NO
6SHOW BINARY IMAGE
YES NO
7SHOWCORRECTIMG
YES NO
8DISPLAY + CURSOR
NO YES MANL-MESR
9OBJ.NO.MANL MODE
NO YES
0IMAGE DISPLAY FREEZE THROUGH
qUPPER MENU
YES (RESULT.NO)
· When the display mode has been
set to YES (RESULT.OK)
· When the display mode has been
set to YES (RESULT.NO)
· When the display mode has been
set to NO
Press the SEL key to delete.
The menu bar will be displayed.
Press the SET
key.
Press the ESC
key.
F H C1ALLC2NO
VX.X
(TYPE00)
OK
MEAS. XXXXXXms
MEAS0 CAM1 POS DEVIATION
REGST NO.0(0〜7)
X COORD(MDL0) X=176.0 OK
Y COORD(MDL0) Y=322.0 OK
X DEVIAT(MDL0)X=
＋
000.0OK
Y DEVIAT(MDL0)Y=
＋
000.0OK
MATCH (MDL0)
＋
10000 OK
ANGLAR DEVIT
＋
001.7゜OK
X COORD(MDL1) X=534.0 OK
Y COORD(MDL1) Y=480.0 OK
X DEVIAT(MDL1)X=
＋
001.0 OK
Y DEVIAT(MDL1)Y=
＋
001.0 OK
MATCH (MDL1)
＋
09999 OK
MSR-CHNG REG-CHNG PC-M0NTR SET-SCRN MANL-TYP-CHG
X0〜6
:
Y0〜7
:
BUSY
:
F H C1ALLC2NO
VX.X
（TYPE00）
OK
MEAS. XXXXXXms
MEAS0 CAM1 POS DEVIATION
MSR-CHNG REG-CHNG PC-M0NTR SET-SCRN MANL-TYP-CHG
MSR-CHNG REG-CHNG PC-M0NTR SET-SCRN MANL-TYP-CHG
X0〜6
:
Y0〜7
:
BUSY
:
