Sharp IV-S20 User Manual

9-117

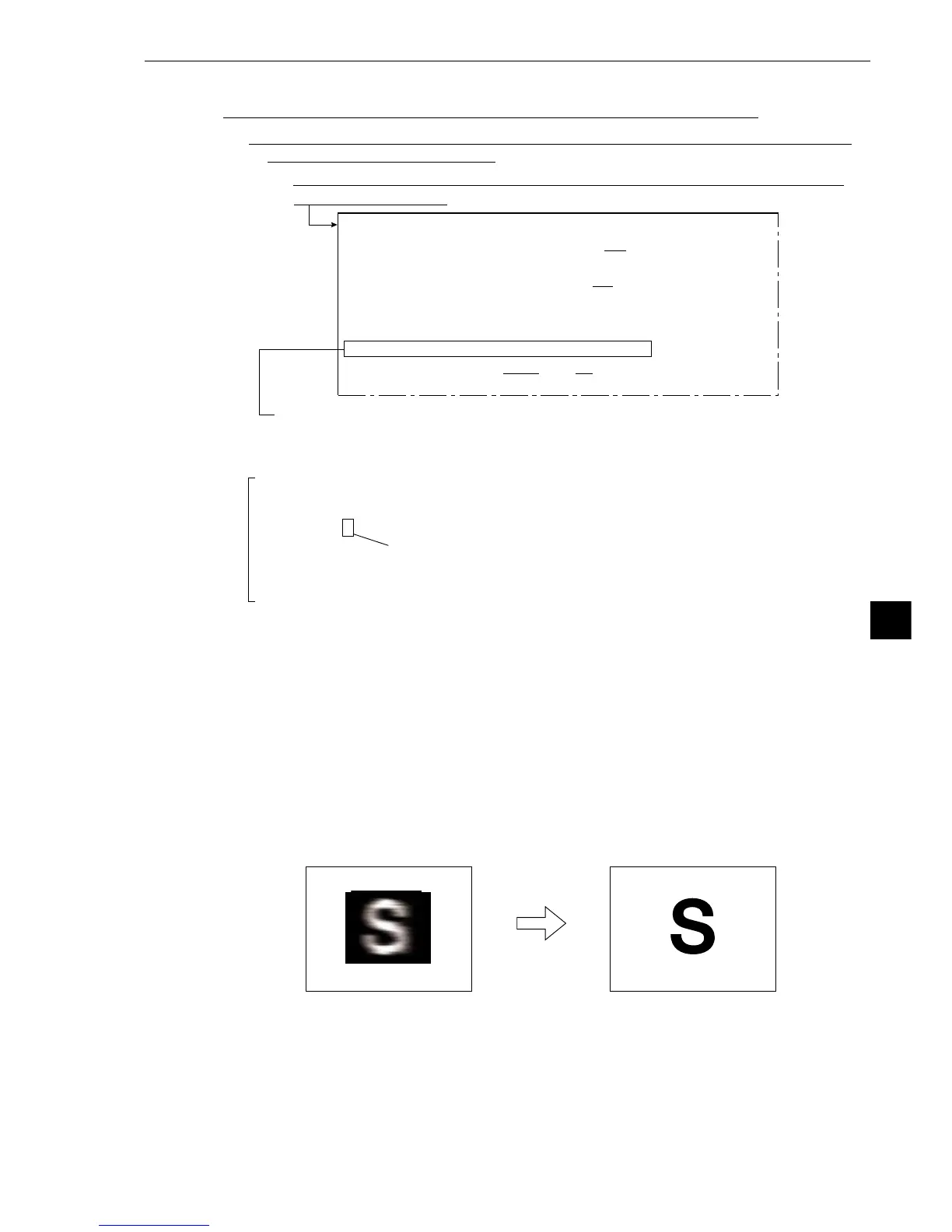

System settings
9
-Move the cursor to item t SYSTEM-IN/OUT, on the [OBJECT TYPE COND] menu,
and press the SET key.
[OBJECT TYPE I/O]
1MONITOR LIGHT LVL
 CAM1(1~2) NO YES
2LIGHT LEVEL COND (TO NEXT SUB-MENU)
3TRIGGER CCD START REG.NO YES(BIN AVG-LIT-LVL)
4CCD TRIGGER COND (TO NEXT SUB-MENU)
5COMPUTERLINK OUT BLOCK-00(MESR-O CMR01)
&SERIAL OUTPUT
6SHUTTER SPEED 1/00060(1/30to1/10000)
7STORE REF IMAGE MOVE UP.L(224,208) LO.R (287, 271) REG. DISP
8UPPER MENU
-On the [SYSTEM SETUP] menu, move the cursor to 2 OBJECT TYPE COND (conditions of
object type) and press the SET key.
On the MAIN OPS MENU, move the cursor to SET-SCRN, and press the SET key.
The shutter speed can be set arbitrarily in the range of 1/30 to 1/10,000 of a second
(Initial value: 1/60, Unit: second).
· When the shutter speed is slow
(1/60 of a second)
· When the shutter speed is fast
(1/1000 of a second)
The object is frozen on the screen.The object is blurred across the screen.
[2] Shutter speed
[Setting procedure]
1. Select item 6 SHUTTER SPEED, using the up and down keys, and press the SET key.
2. Move the cursor to the digit you want to set, using the left and right keys.
1/00060
This will move the cursor to the left and right.
3. Set the value using the up and down keys.
4. Repeat steps 2 and 3 to set each digit.
After setting all of the digits, press the SET key.
- Since the same shutter speed can be used for all of the object types.
- Since the shutter speed can be set continuously in the range of 1/30 to 1/10,000 of a
second, very fine adjustment is possible.
- If you want to measure moving objects and increase the image processing speed, set the
shutter speed to around 1/1000 or 1/2000 seconds. However, if you use a faster shutter
speed than you need, very bright lights will be necessary, and bright lighting is not
economical.
- For details about the relationship between the brightness of objects (objects to be measured)
and the shutter speed, see section "6-1 [2] Illumination and shutter speed."
[Example]
