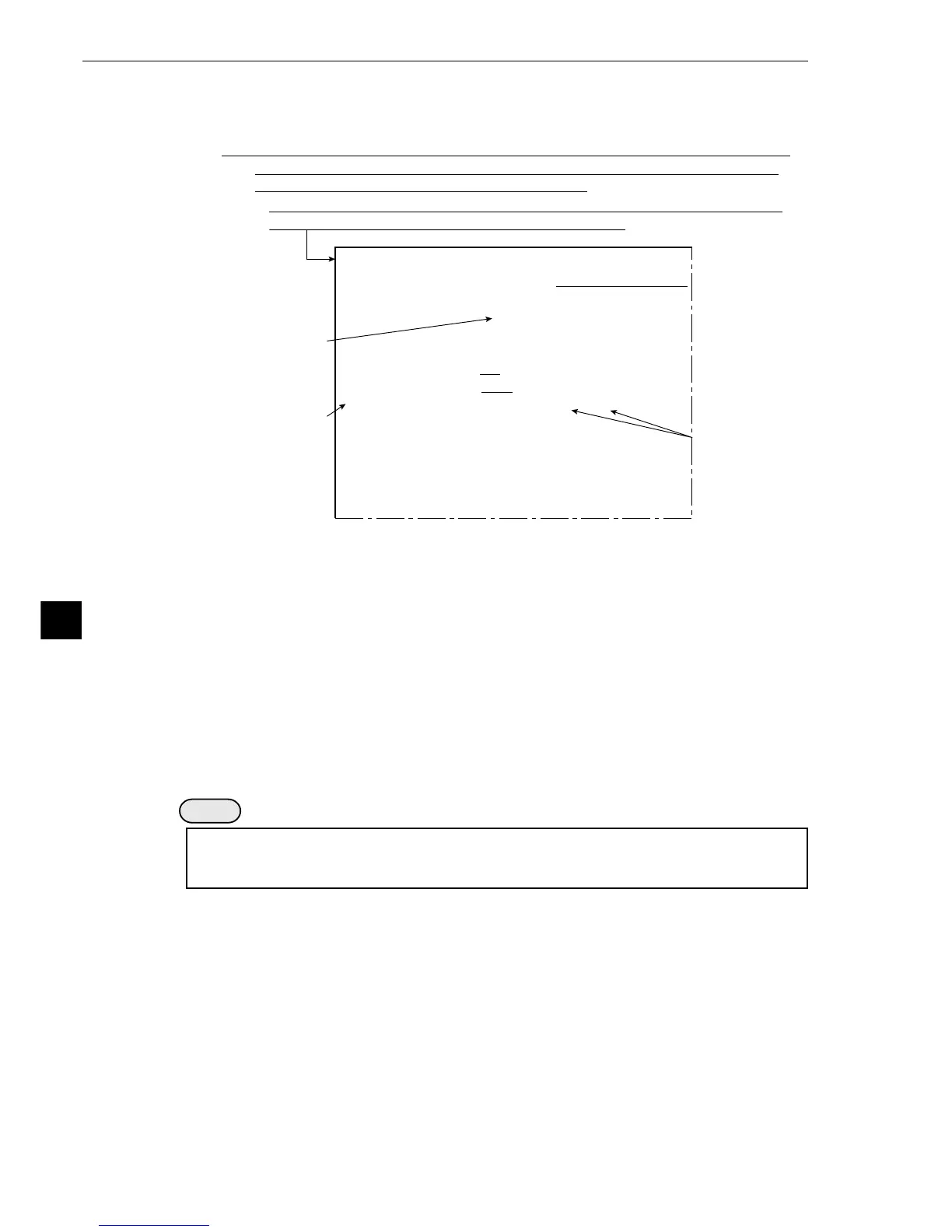

Sharp IV-S20 User Manual

9-30
Shared settings
9
1
3
2
[TYPE01-MEAS1]
1MEAS SELECTION NO CHECK-DEG-OF-MATCH 
DST&AGL MES . ( GRAY&EDGE GRAV)
INSPECT-LEAD MEASR-BIN-AREA
CNT-BIN-OBJ LABEL-BIN-OBJ
POINT MEAS
2COMPARE IMAGES NO YES(CAM1) 
3SELECT CAMERA CAM1 CAM2
4COPY EXEC←TYPE00 − MEAS1 − NO
5INITIALIZATION EXEC
6MEAS.PROG. COND (TO NEXT SUB-MENU)
7EVALUATION COND (TO NEXT SUB-MENU)
8NUMERIC CALC COND (TO NEXT SUB-MENU)
9OUTPUT CONDITIONS (TO NEXT SUB-MENU)
0UPPER MENU
On the MAIN OPS MENU, move the cursor to SET-SCRN item, and press the SET key.
- On the [SYSTEM SETUP] menu, move the cursor to 2OBJECTTYPE COND
(conditions of object type) and press the SET key.
- On the [OBJECT TYPE COND] menu, set item 1 OBJECT TYPE NO. (object
type number) to 01 and select 0 MEASUREMENT 1.
- When processing item 4 COPY, by itself, the IV-S20 will not copy to the flash memory.
To save the copied settings in flash memory go to item 9 SAVE IN FLASH MEM, or item
0 OPERATIONS, which are both found on the [SYSTEM SETUP] menu.
Note
[The procedure for copying measurement programs 1 to 3]
- Example: Copying the settings from object type 00, measurement 2 (lead inspection), into
object type 01, measurement 1 (degree of match inspection).
1.Select item 4 COPY, using the up and down keys and press SET.
2.Select TYPE00 or MEAS1 with the left and right keys. Next enter the object type number (00 to
15) and the measurement program number 1 to 3 for the source of the copy, using the up and
down keys (the name of the measurement program for the source of the copy will also be
displayed). When the numbers have been entered, press the SET key.
- It is possible to copy a new measurement program choice to the same object type number
(i.e. specify another measurement program during the copying process). The target object
type number will be the same as originally specified. The only change is the target
measurement program number where the copy will be placed.
3.Once the measurement program has been copied, INSPECT-LEAD (lead inspection) will now
be underlined, whereas CHECK-DEG-OF-MATCH (degree of match inspection) is previously
the underlined entry at item 1.
4.Move the cursor to item 8 UPPER MENU, and press SET key.
- This will return you to the [OBJECT TYPE COND] (conditions of object type) menu.
