Setting the Input/Output Conditions
[I/O SETTINGS]
1 MEAS TRIG INP I/F PARALLEL SERIAL CCD-TRIG
2 START CCD SAMPLE AUTO(EDGE LEVL) PARALEL SERIAL
3SERIALOUTPUTNOPC-LINKSERIAL
(CCD SAMPLING＝PARALLEL)

8
SERIAL CONDITIONS (TO NEXT SUB-MENU)
9 COMPUTER LINK (TO NEXT SUB-MENU)
Personal computer

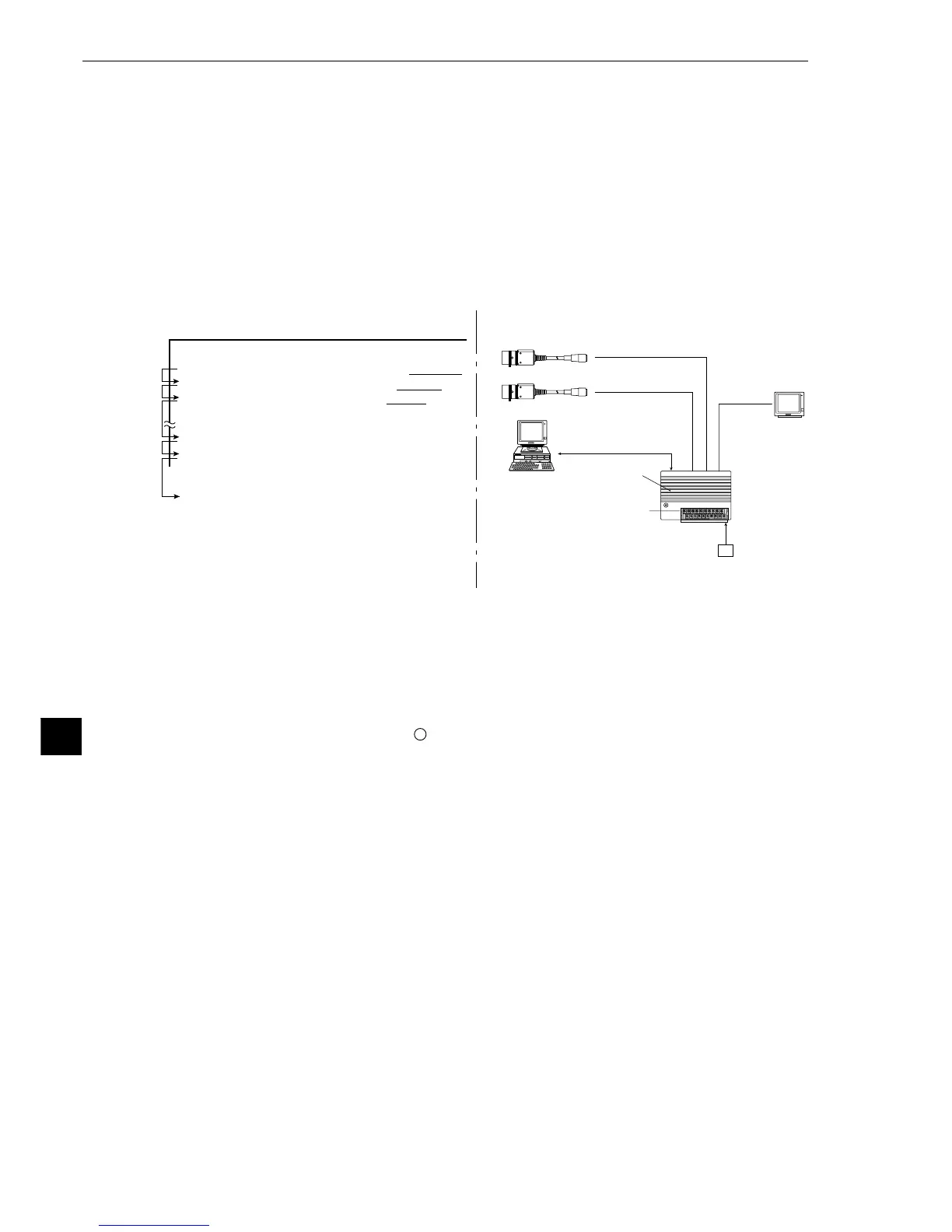

· Setting order 1 →2→3→8→9 · Configuration example
External trigger
(photo sensor or
proximity sensor)
IV-S20 main
housing
Power supply (24 VDC)
Monitor
Settings listed in section 11-3 “CCD trigger”
Camera 1 (image capturing + CCD trigger)
Camera 2 (image capturing)
Object type change,
data
(7) Measurement start input = CCD trigger, start sampling = parallel, object type change =
parallel, result output = general purpose serial/parallel
When the start sampling input (X0) is turned ON, the CCD trigger is enabled. (Sampling starts)
Note 1: When the settings listed in section 11-3 "CCD trigger" have not been made, a
CCD TRIGGER NOT SET. (error 34) will occur.
Note 2: Start sampling input (X0)
1. Sampling will be performed while this input terminal is ON. When it is turned
OFF, the sampling will stop.
During sampling,  will flash in the upper right corner of the MAIN OPS
MENU.
2. After the measurement is terminated, sampling will be restarted when the X0
terminal is changed from OFF to ON.
When a Sharp PC is used, a write enable command (EWR) is transmitted from the IV-S20
to the PC in the following cases.
- When the power is applied to the IV-S20
- When a write mode nonconformity error (code 10
(H)
) occurs after a result write command
(WRG) is transmitted (when the power is disconnected from the PC)
- When the output method is changed from the serial interface to the computer link
