Setting the Input/Output Conditions
[I/O SETTINGS]
1
MEAS TRIG INP I/F PARALLEL SERIAL CCD-TRIG
2
START CCD SAMPLE
AUTO(EDGE LEVL) PARALEL SERIAL
8
SERIAL CONDITIONS
(TO NEXT SUB-MENU)
· Setting order 1 →2→8 · Configuration example
Data
Settings listed in section 11-3 “CCD trigger”
IV-S20 main housing
Power supply (24 VDC)
Monitor
Camera 1 (image capturing + CCD trigger)
Camera 2 (image capturing)
Remote key pad
Personal computer
Sampling start,
object type change
(8) Measurement start input = CCD trigger, start sampling, object type change = general
purpose serial, result output = general purpose serial/parallel
The CCD trigger is enabled after a measurement execution command is entered.
- See pages 13-9 and 13-10 for details about the measurement execution commands (codes
18, 19, 1A and 1B
(H)
).
- When one of the measurement execution commands (codes 18, 19, 1A and 1B
(H)
) is
normally received during sampling, the sampling will stop.
Note: When the settings listed in section 11-3 "CCD trigger" have not been made, a CCD
TRIGGER NOT SET. (error 34) will occur.

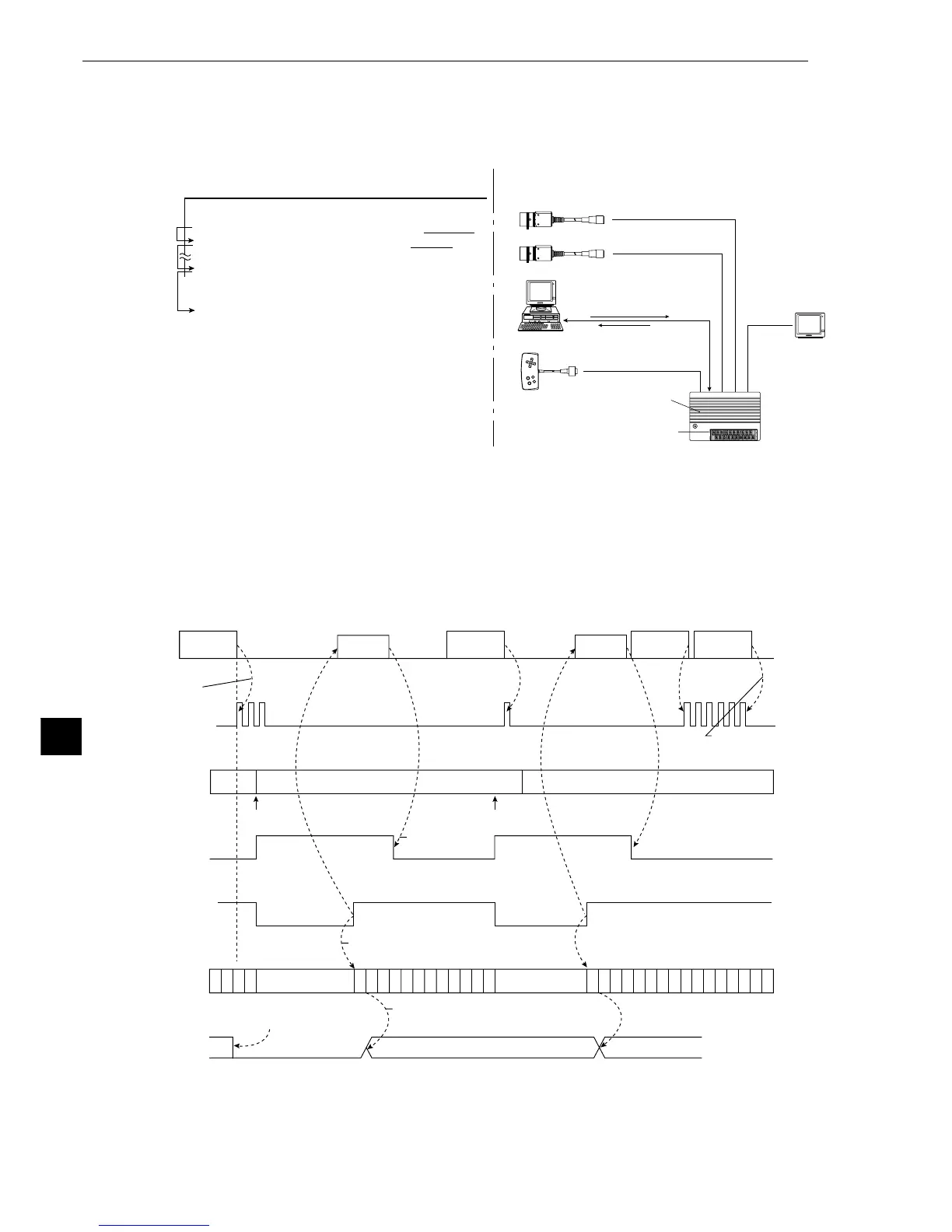

· Time chart
Note: Result output: The data in the block No., set in item 5 COMPUTER LINK OUT
&SERIAL OUTPUT on the [OBJECT TYPE I/O] menu, will be transmitted to the
personal computer. (See page 11-20.)
