Other Settings and Operations
From the preceding page

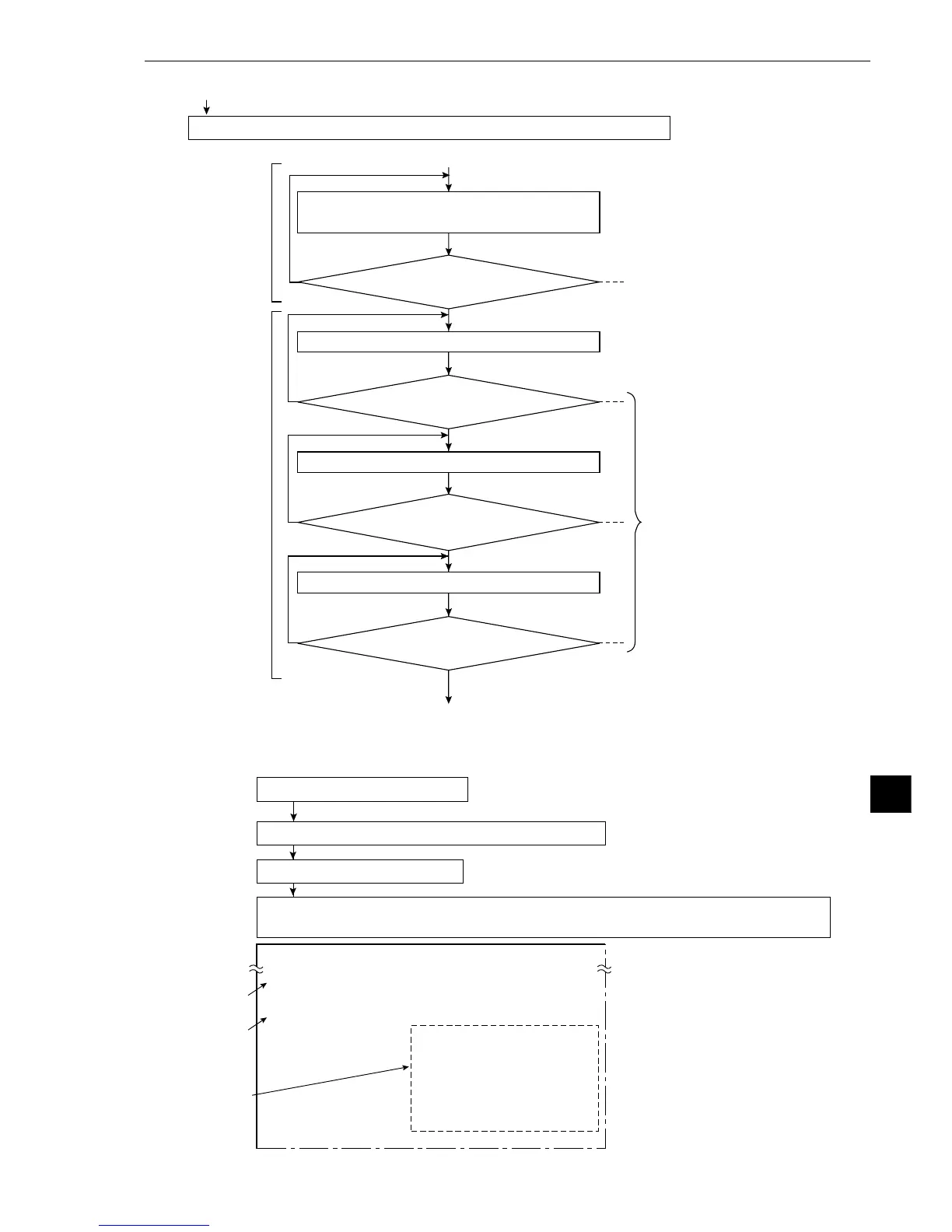

Adjusting the camera position (after the camera is replaced or dislocated)
* Adjust these parameters using the following procedure.
Enter the through display mode
Adjust each parameter (adjust the camera and lens).
Enter the freeze display mode.
10. Store the image after replacing the camera by pressing the SET key in item 8 IMG
AFTR CAM CHNG on the [ADJ. CAM POSITION] menu.
Start
Adjusting the camera position/direction
Adjusting the lens aperture *
White area in the differential image
Exists.
Rough
adjustment
Detailed
adjustment
8. Press the SET key on item 6
DISP DEG OF MATCH
9. Compare the values before and
after the camera is replaced,
which are shown in item 9
DISPLAY LABELS
None
Adjusting the camera position/direction *
Mismatch
Mismatch
Mismatch
Adjustment of size
(comparison of fillet diameters)
Match
Match
Match
Adjusting the camera position/direction *
Adjustment of position
(comparison of the centers of gravity)
Adjusting the lens aperture *
Adjustment of brightness
(comparison of average light level)
End
8
10
9
6DISP DEG OF MATCH (SET KEY)
7INTIAL CAM IMG REG. LABL10
8IMG AFTR CAM CHNG(SET KEY)
9DISPLAY LABELS LABL00 BER.CHG AFT.CHG
GRAVITY X 310. 292.0
GRAVITY Y 220.0 219.0
FILLET X 040 040
FILLET Y 040 032
AV-L.LVL 100 100.0
0UPPER MENU
[ADJ. CAM POSITION]
To Next Page
