3-11
3

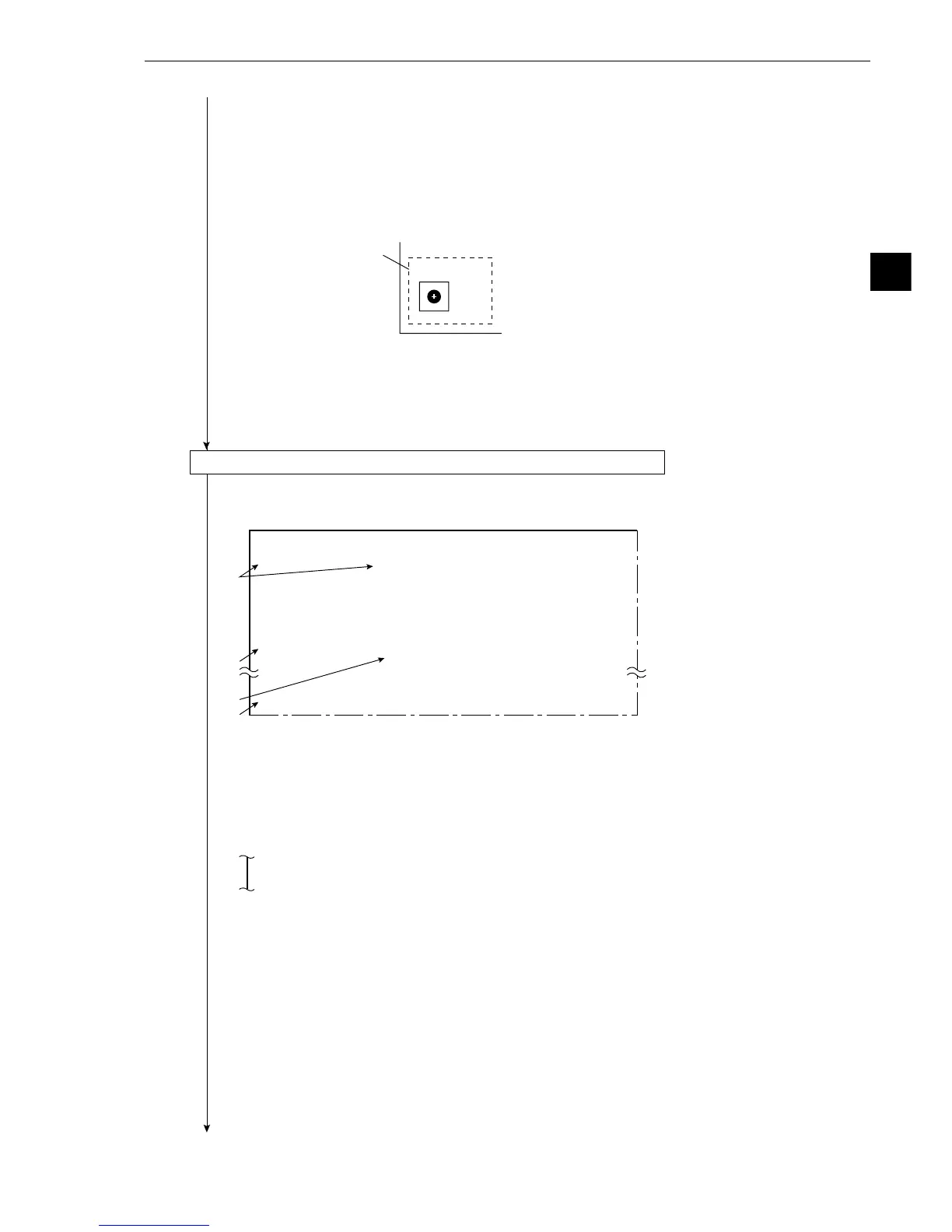

Operation Examples (Position measurement)
Search window
6MATCH(MDL0）： +09000~+10000
［ EVALUATIONCOND ］ (TYPE00-MEAS0-POS-DEVIATION)
①REGST NO. 0(0〜7) ［OUT］
②X COORD.(MDL0) 000.0〜511.0 NO
③Y COORD.(MDL0) 000.0〜479.0 NO
④X DEVIAT(MDL0) 000.0〜511.0 NO
⑤Y DEVIAT(MDL0) 000.0〜479.0 NO
⑥
MATCH (MDL0) − 10000〜
＋
10000 NO
⑬
MAKE A TEST RUN (SET KEY)
⑭
UPPER MENU
3
5
4
2
Continued from the preceding page
4. Press the ESC key, move the cursor to 3 SEARCH AREA (search window) and press the
SET key.
5. Create a search window (dotted line) to be used as the search area.
- The search area is the area within which the new image will be searched for a match with
the image stored in step 3. The gray scale search function performs the search operation
(see the "Glossary").
- The procedure for defining the search area is the same as in step 3.
- After defining the search window size and position, press the ESC key.
6. Move the cursor to w UPPER MENU and press the SET key.
- The screen will return to the [MEASURING COND] (measurement conditions) menu.
7. Press the ESC key.
- The screen will return to the [TYPE00-MEAS0] (type: 00, measurement: 0) menu.
(8) Operation on the [EVALUATION COND] (evaluation condition) menu
1. Move the cursor to 5 EVALUATION COND and press the SET key.
- The [EVALUATION COND] menu will be displayed.
2. Move the cursor to 1 REGST NO. (register number) and press the SET key. Move the
number to 0 with the up and down keys, and press the SET key.
3. Move the cursor to 6 MATCH (MDL0) and press the SET key.
4. Move the cursor to the lower limit position with the left and right keys, and press the SET key.
- Select the digit to change with the left and right keys, and then set the value to +09000 with
the up and down keys.
(Criteria for a successful match: 90.00% to 100.00%)
- After defining the lower limit, press the SET key.
5. Press the ESC key, move the cursor to r UPPER MENU and press the SET key.
- The screen will return to the [TYPE00-MEAS0] (type: 00, measurement: 0) menu.
6. Press the ESC key.
- The screen will return to the [OBJECT TYPE COND] (conditions of object type) menu.
Continued on the following page
